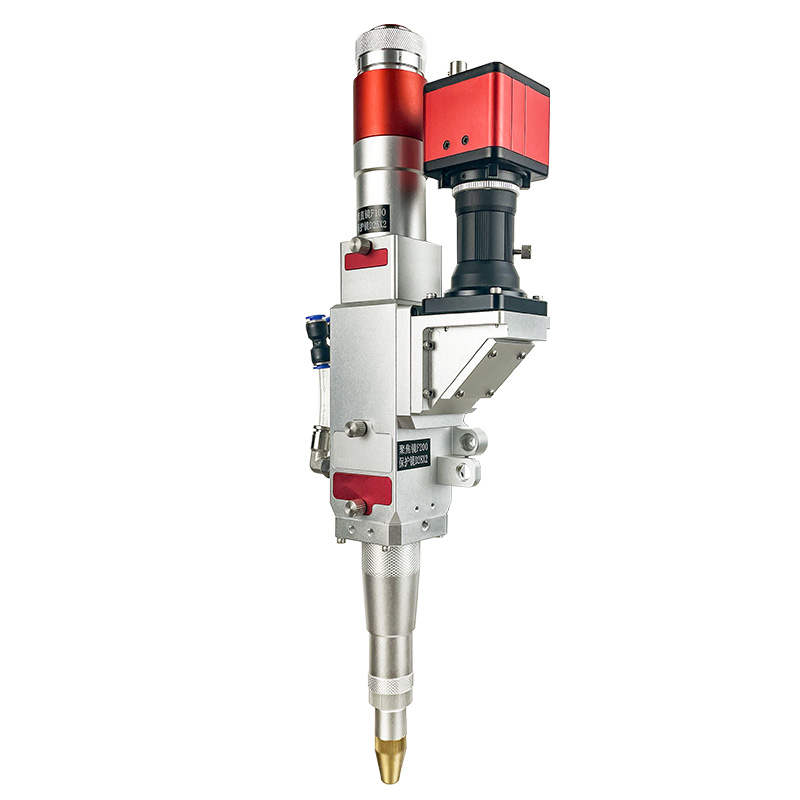

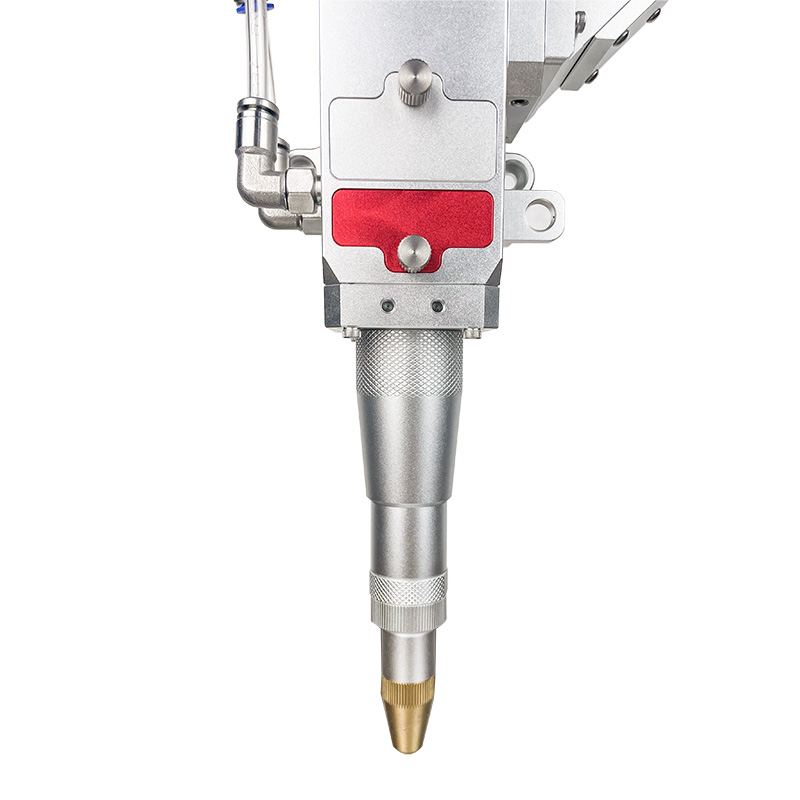

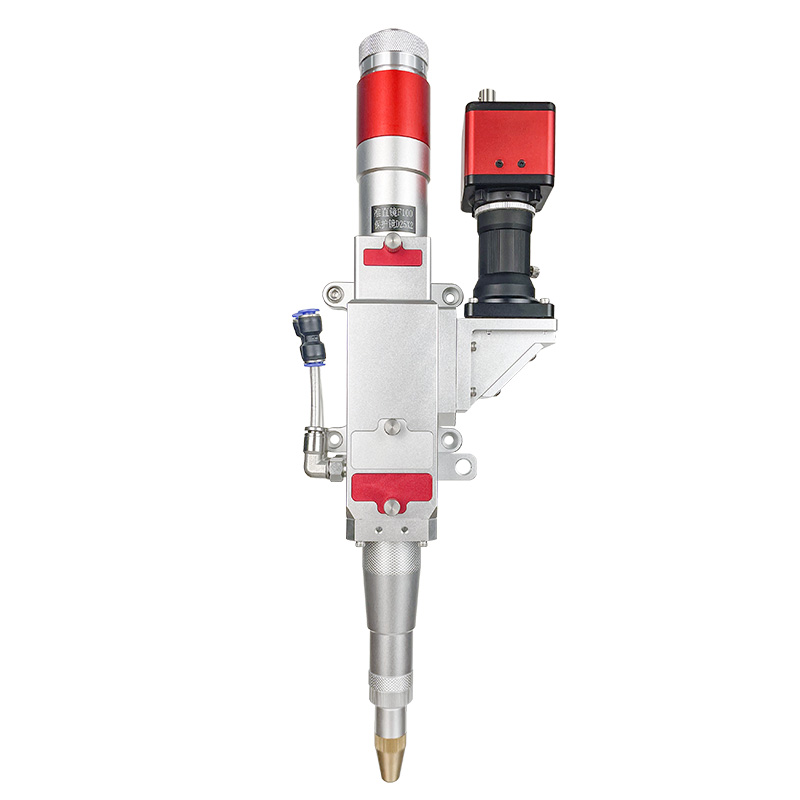

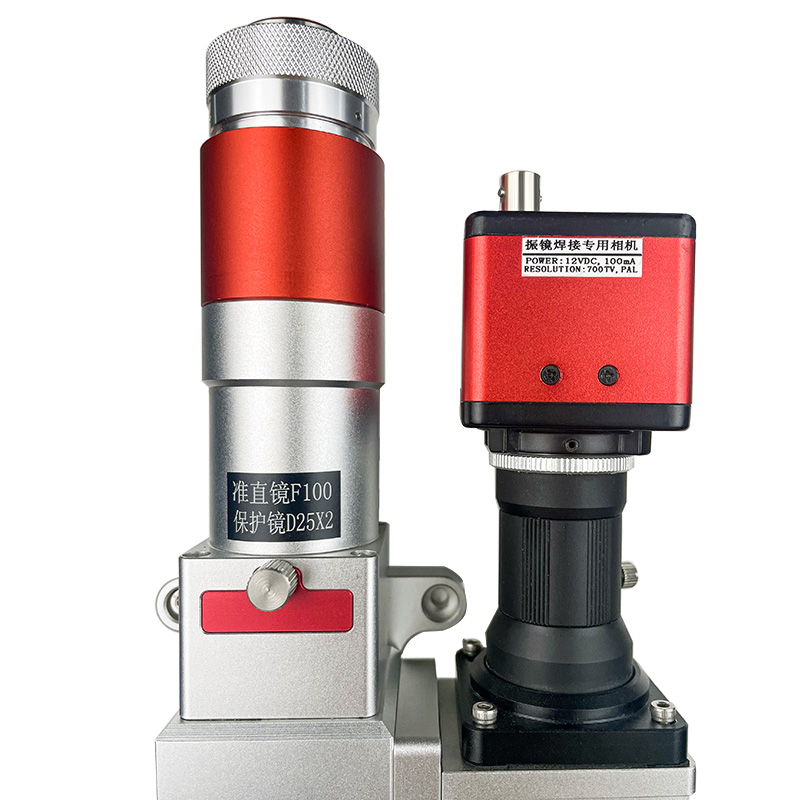

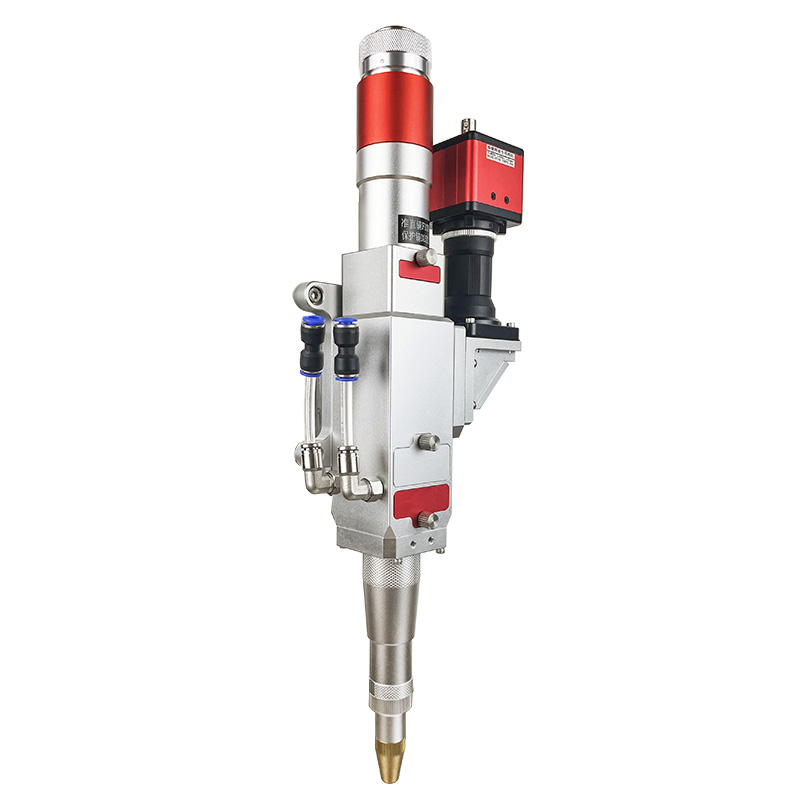

ZBTK WD2000 Automated Laser Welding Head

This welding head is a 2000W simple welding head with extremely high cost performance. It has a wide market application and is widely used in thin plate laser welding in platform automation or robotic arm automation scenarios.

Product Description
ZBTK WD2000  Automated Laser Welding Head manufacture ZBTK WD2000  Automated Laser Welding Head manufacture
Product Advantages

-Cost-effective
This simple welding head is applicable to a wide range of applications, the use of low-cost, economical and efficient


-Light weight
Measured weight is only 2KG, easy to install and quick to use.


-Easy maintenance
All protective mirrors, focusing mirrors and collimating mirrors adopt drawer-type modular design, which is convenient for users to maintain.


-Long life
The welding head adopts IP6 dustproof design, which can avoid the core optical components being polluted by dust; the side-blowing welding is equipped with high-efficiency air curtains, and the coaxial welding is equipped with a protective air circuit, which can effectively reduce the pollution of welding fume and spattering on the protective lenses.

ZBTK WD2000  Automated Laser Welding Head manufacture

ZBTK WD2000  Automated Laser Welding Head details

Product Parameters
Laser interface Standard QBH interface
Laser wavelength 1030nm~1090nm
Laser power ≤2000W
Collimator focal length F100/F120/F150
Focusing Lens Focal Length F200/F250/F300
Observation CCD Support
Side blowing air curtain Single layer
Welding mode Side blowing welding/coaxial welding
Protective lens Drawer type
Focusing lens Drawer type
Collimator Drawer type
Dustproof level IP6
Dimensions 141x90x470 MM
Weight Approximately 2 KG

Mechanical Dimensions

ZBTK WD2000  Automated Laser Welding Head supplier

ZBTK WD2000  Automated Laser Welding Head manufacture
