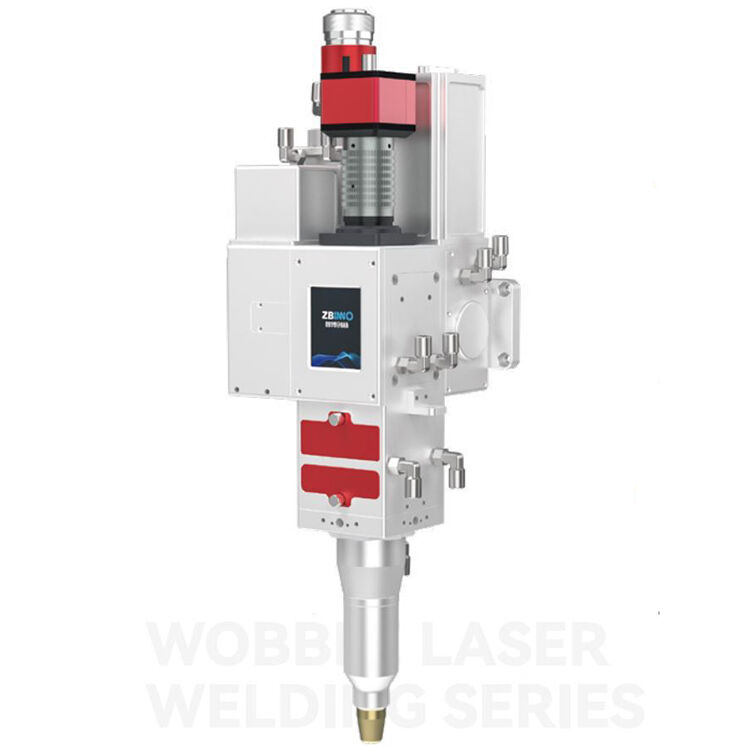

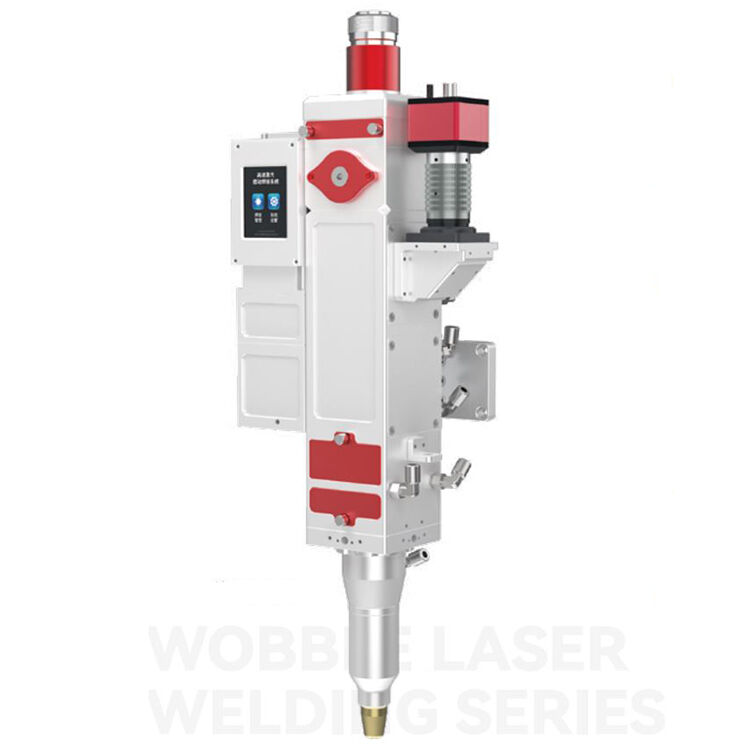

ZBTK CSW6000 Laser Welding System
ZBTK CSW6000 Laser Welding System

ZBTK CSW6000 Laser Welding System

Product Description
ZBTK CSW6000 Laser Welding System factory

This oscillating welding head is a 6000W high-power laser oscillating welding head with an integrated design of "drive, control, touch and display".

It can directly control the oscillating head and laser, support external IO trigger start, and support customer remote interface secondary development.

It can be widely used in high-end processing fields such as laser welding, laser quenching, laser cladding, etc. in platform automation or robot automation scenarios.

Product Advantages

*High power
This welding head adopts high-standard optical materials and high-power coating technology, and adopts a complex and efficient water cooling circuit design to support long-term high-load operation of the laser at full power.

*High stability
Thanks to the integrated design of "drive control touch display", this welding head can avoid the communication between the traditional welding head and the control card, which is prone to interference due to long-distance open-loop transmission of signals, resulting in signal errors or loss. It has extremely strong anti-interference ability and long-term stability.

*High security
Supports laser alarm shutdown, supports real-time temperature monitoring alarm shutdown and temperature curve online recording in 2 key temperature zones.

*Low spatter
Supports adjustable laser power on both sides in the figure-8 mode, and the size and shape of both sides of the figure-8 can be modified independently, enabling process engineers to research and implement complex processes, which can effectively reduce spatter and improve welding quality.

*Easy to maintain
All protective lenses, focusing lenses, and collimating lenses adopt drawer-type modular design, which is convenient for users to maintain.

Parameter
Laser interface Two-way standard QBH interface
Laser wavelength 1080NM915NM
Collimator focal length F100
Focusing distance F250/F300
Observation CCD Support
Side-blowing air curtain Double-layer
Protective gas circuit Support
Upper and lower protective mirrors Drawer type
Focusing lens Drawer type
Laser control mode Internal control/external control
Welding mode Side blowing welding/coaxial welding
Swing mode Straight/rectangular/elliptical/figure 8/circular
Swing width 15mm
Swing speed <3000mm/s
Oscillation frequency <100HZ
Repeatability accuracy <2um
8 hours temperature drift <10um
Dimensions 194.1x153x500(subject to drawing)
Weight Approx. 12.5kg
Mechanical Dimensions
