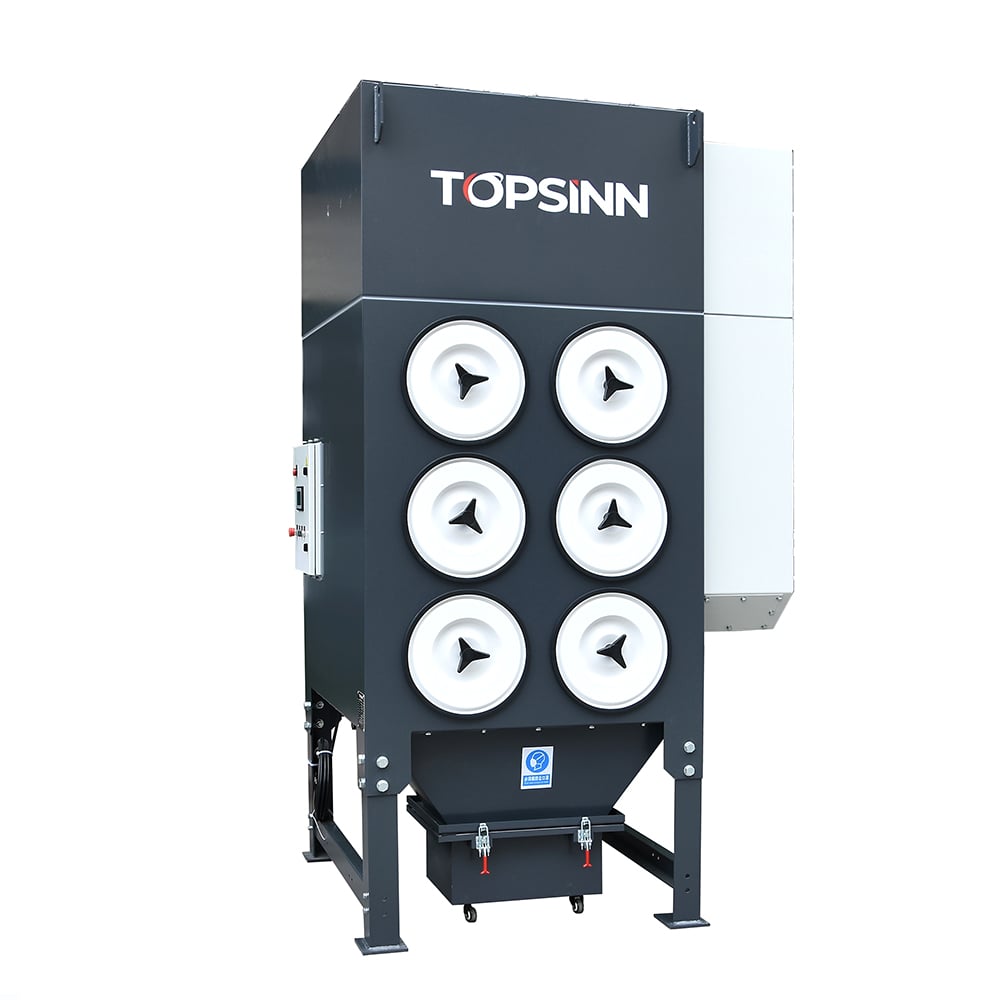

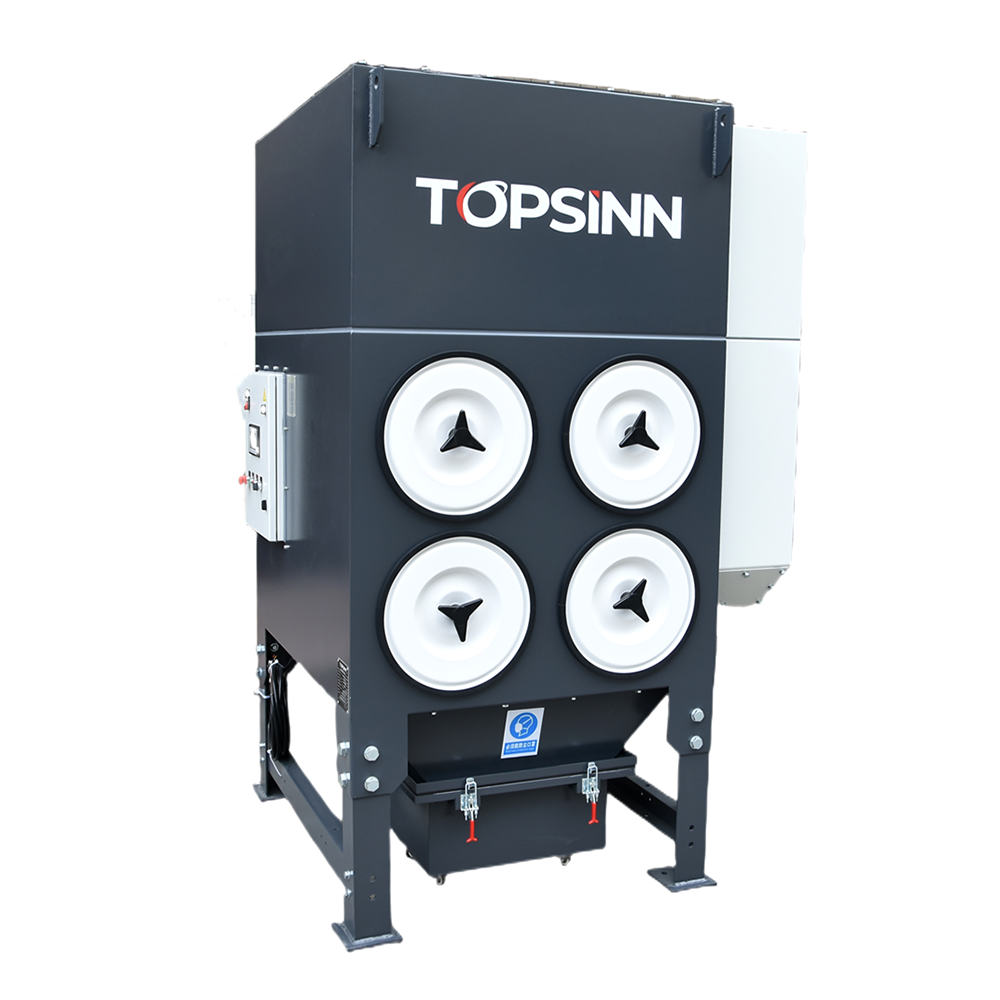

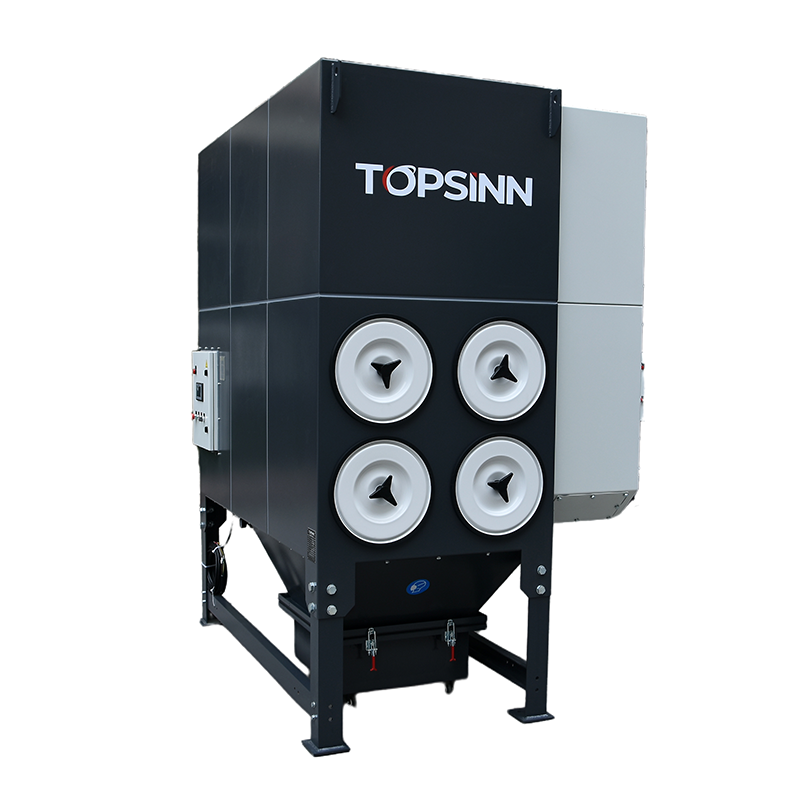

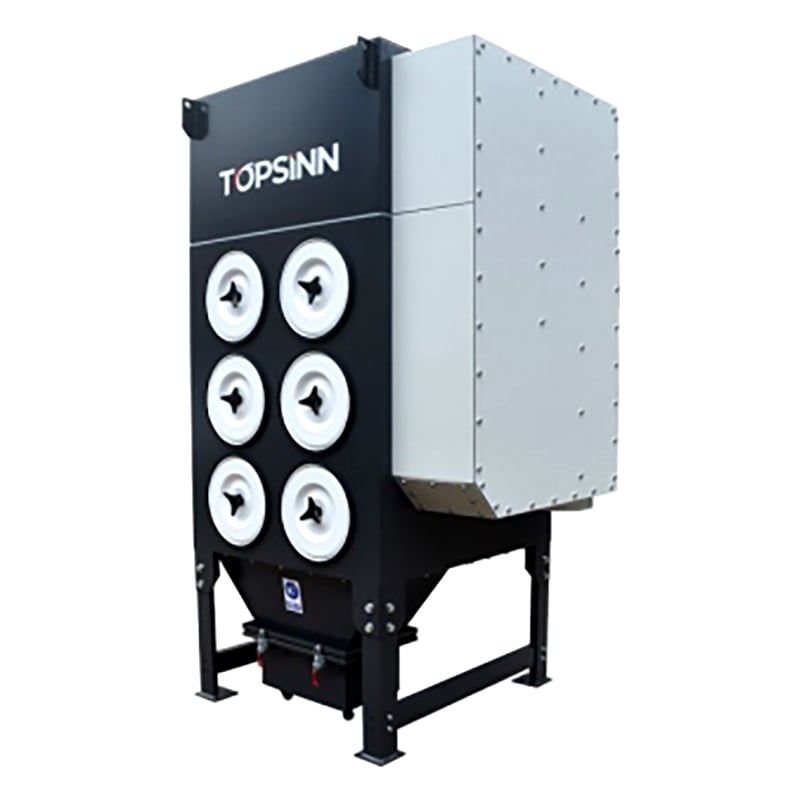

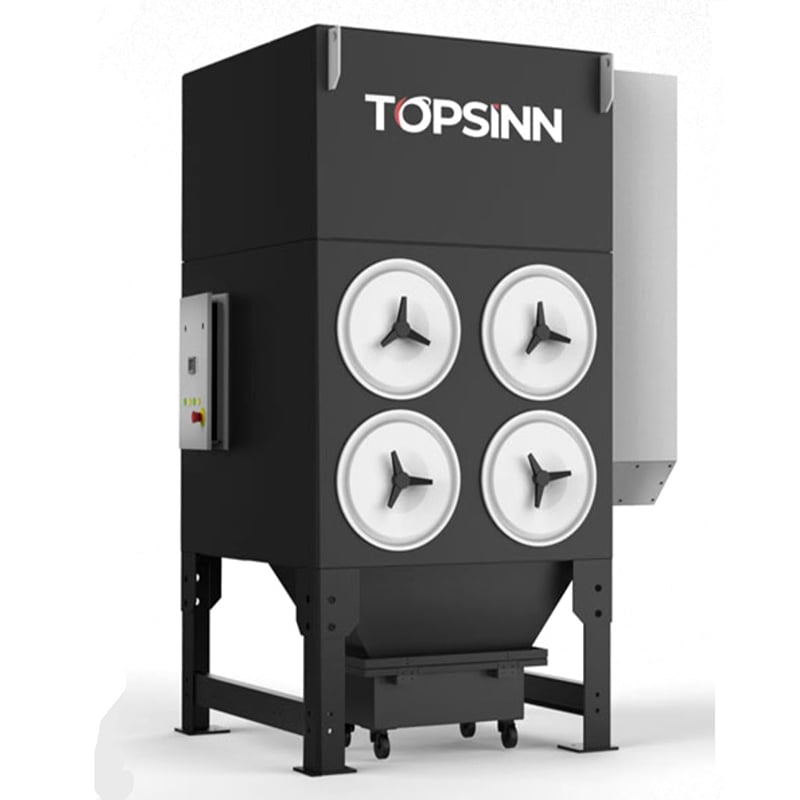

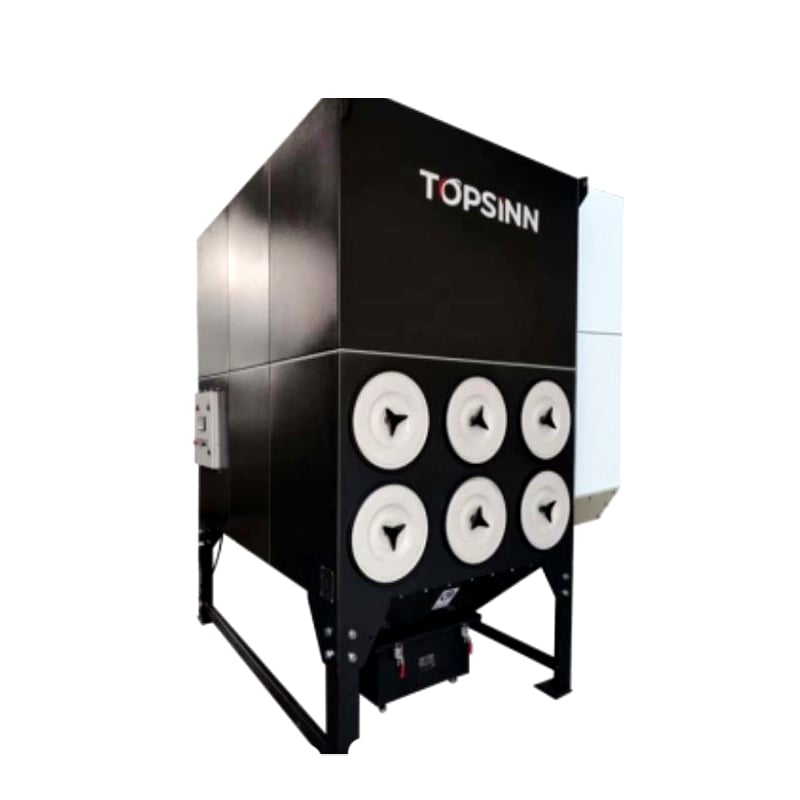

TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector
TOPSINN TODC-L Series Industrial Dust Collector

TOPSINN TODC-L Series Industrial Dust Collector

Product Overview

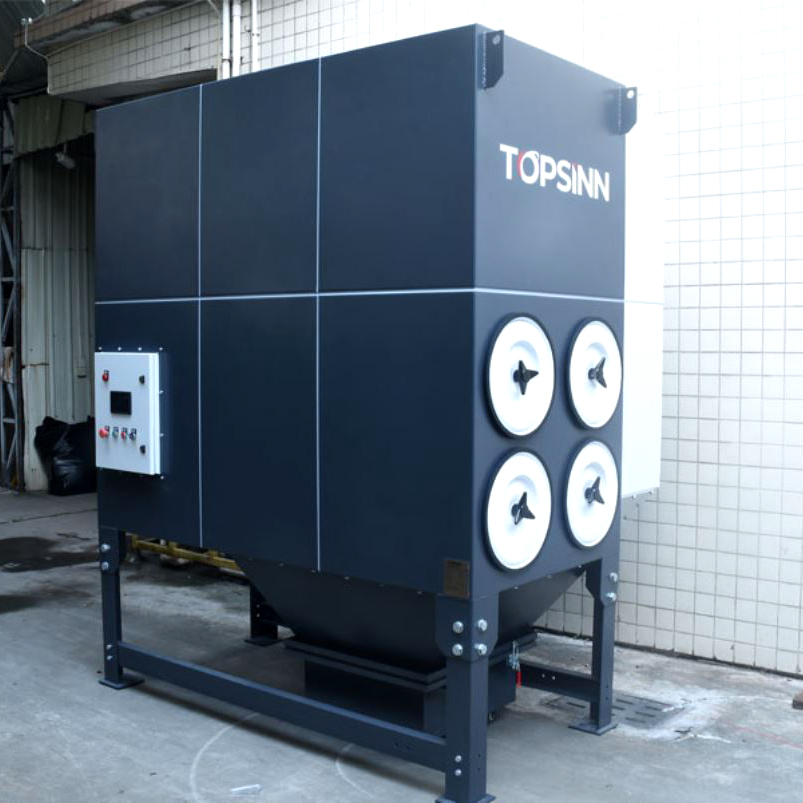

The TOPSINN TODCLXLJCQ is a high-performance industrial dust collector designed for laser processing applications, including cutting, welding, marking, and cleaning. Engineered for efficiency and safety, this dust collector ensures a clean working environment by effectively filtering smoke, fumes, and fine particles generated during laser operations.


Key Features
  • High Filtration Efficiency
    Equipped with high-efficiency filter cartridges and a multi-stage filtration system, it captures fine particles and hazardous fumes with precision.

  • Intelligent Control System
    Features a smart control panel with real-time monitoring, fault alarms, and automatic start/stop functionality to enhance user convenience and operational safety.

  • Energy-Saving Performance
    Uses energy-efficient motors and optimized airflow design to ensure stable operation while reducing power consumption.

  • Low Noise Operation
    Designed with sound-dampening materials and structure to minimize noise during operation, creating a quieter working environment.

  • Durable and Reliable
    Built with industrial-grade materials, the unit offers strong resistance to wear, corrosion, and high temperatures, ensuring long-term durability.


Technical Specifications
Model TODC-4L TODC-6L TODC-6LS TODC-8L
Filter cartridge
material
HV/Ahlstrom/TORAY,F9 HV/Ahlstrom/TORAY,F9 HV/Ahlstrom/TORAY,F9 HV/Ahlstrom/TORAY,F9
Number of Filter
cartridge
4 6 6 8
Air volume 4000m3/h 6000m3/h 8000m3/h 9000m3/h
Air pressure  3000 3600  4500 5000
Filtration
efficiency
99.99% 99.99% 99.99% 99.99%
Filtering area 80M2   120M2   120M2   160M2
Entrifugal fan 5.5KW SIEMENS 7.5KW SIEMENS 11KW SIEMENS 11KW SIEMENS
Collector capacity 45L  50L  50L  90L
Power requirments THREE-PHASE FOUR-WIRE, 380V THREE-PHASE FOUR-WIRE, 380V THREE-PHASE FOUR-WIRE, 380V THREE-PHASE FOUR-WIRE, 380V
Air pressure
request
0.6MPa, compressed air
without oil and water
0.6MPa, compressed air
without oil and water
0.6MPa, compressed air
without oil and water
0.6~0.7MPa, compressed air
without oil and water
Unit weight 700KG 900KG  940KG  1200KG
Outline
Dimension(mm)
A:2198,B:1348, C:1060,D:303   A:2837,B:1423, C:1180,D:383   A:2987,B:1498, C:1180,D:383 A:2575,B:2215, C:1016,D:453


Applications

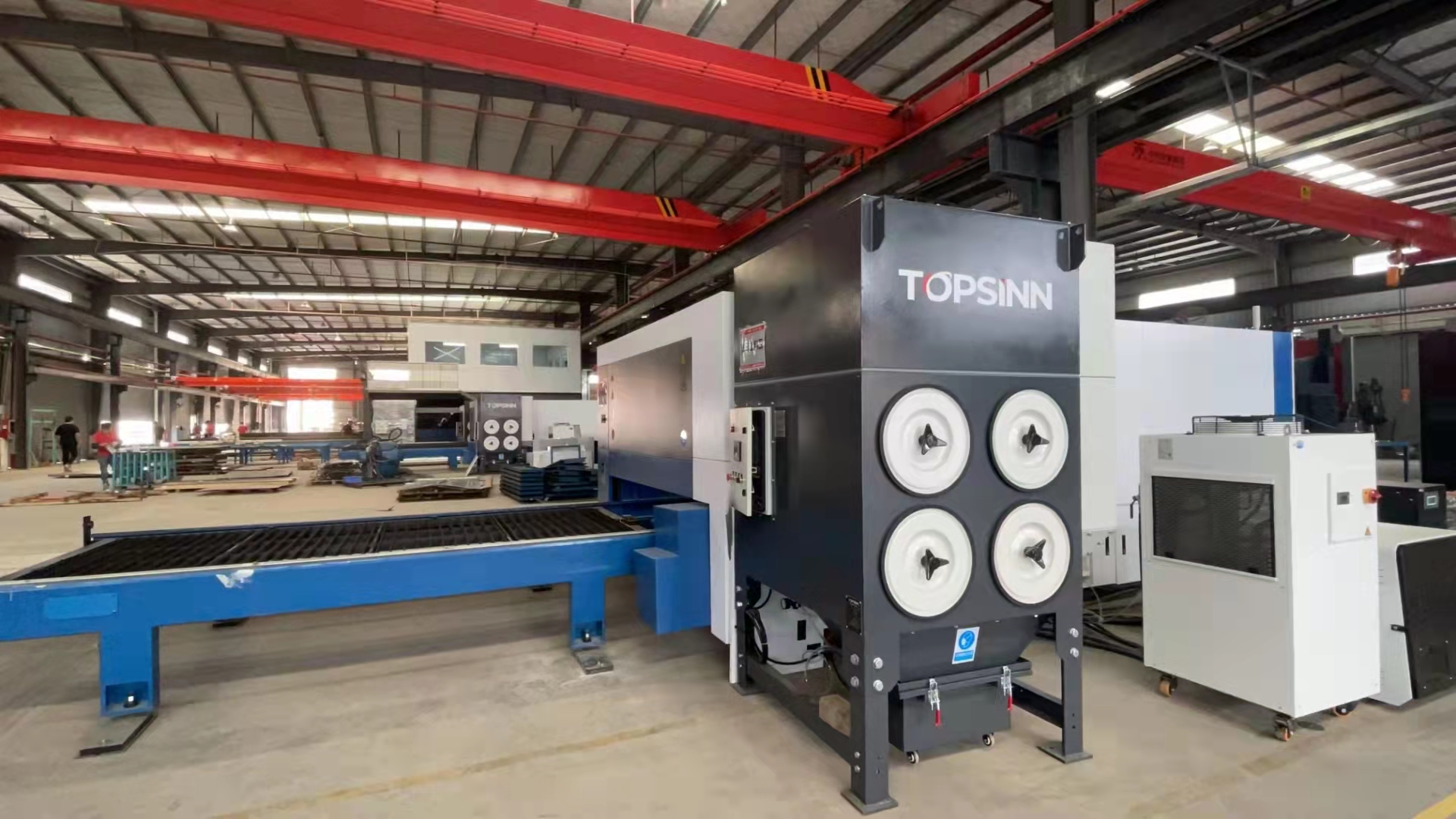

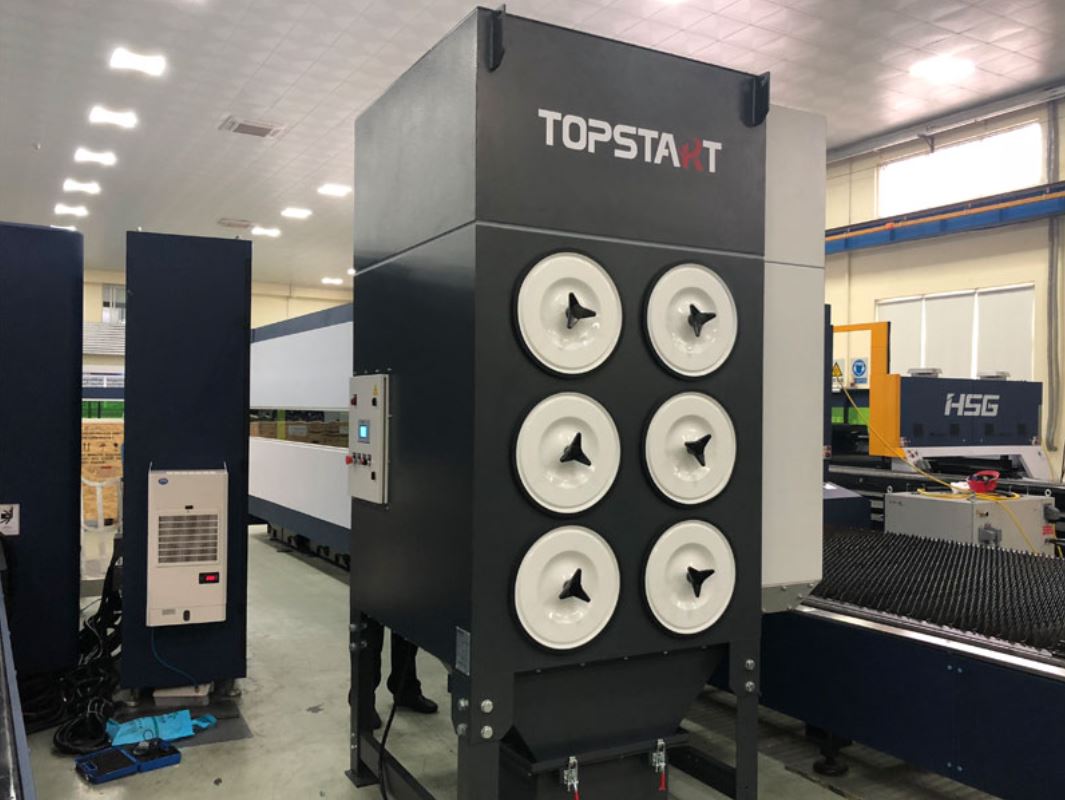

Ideal for use in laser cutting, laser welding, laser cleaning, laser marking, and other dust-producing industrial processes.
