Robot Laser Spot Welders
| Product Description |
 |
IRB 6620 is a flexible and agile robot with a large working range. It can be installed in four installation methods: ground installation, tilt installation, inverted installation and bracket installation. This compact robot brings new opportunities for new production line concepts that are more flexible and optimized. All these features help reduce floor space, increase robot density, and shorten production line lengths. |
| Features |
|
Compact design, lightweight structure, easy to install. Outstanding load capacity and working range; compact structure and bracket-type installation, suitable for multi-layer robot operations; the upper robot can be appropriately tilted to maximize the space between the two layers. |
|
 |
Is a highly flexible, cost-effective solution It can significantly increase production line uptime and reduce production costs. |
| For More Details |
|

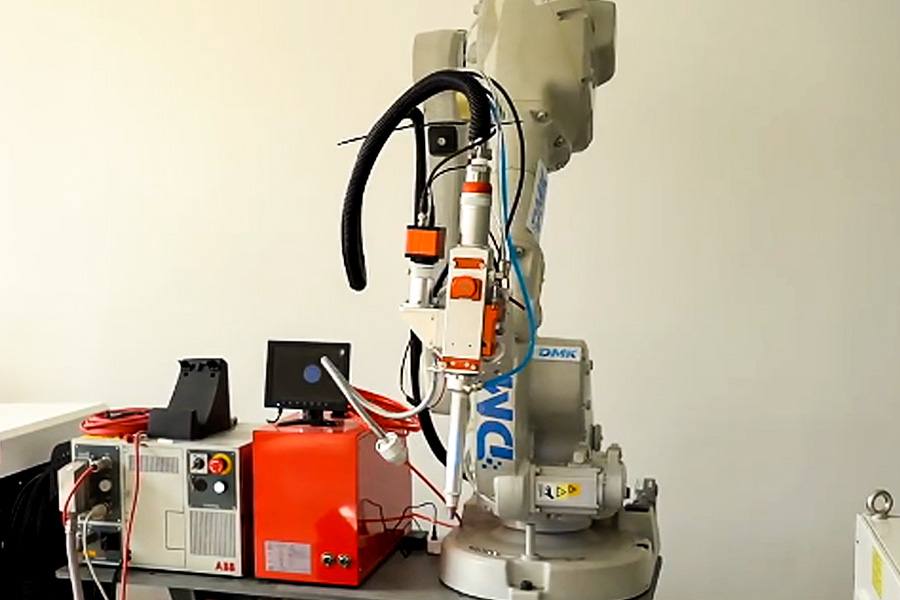

Platform welding head |

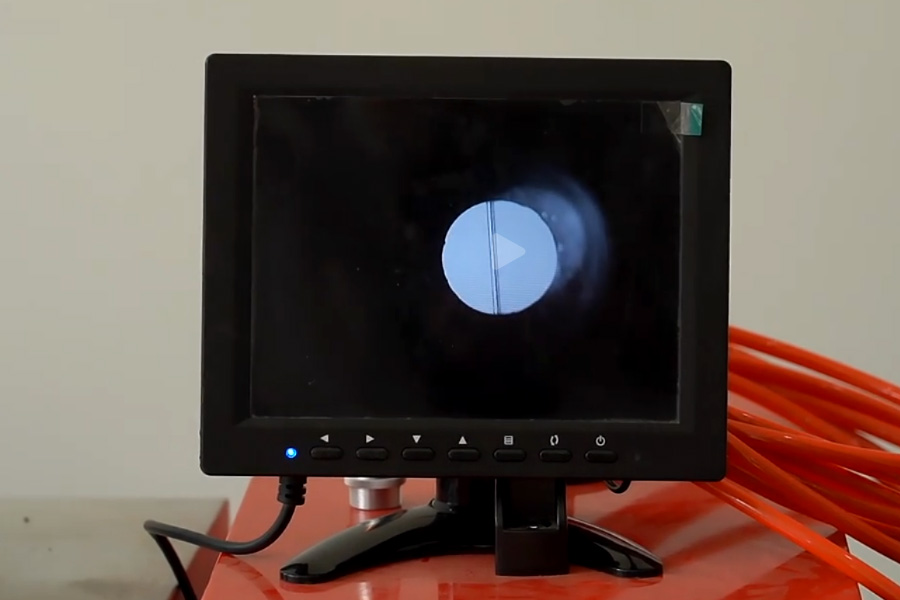

CCD panel |
|

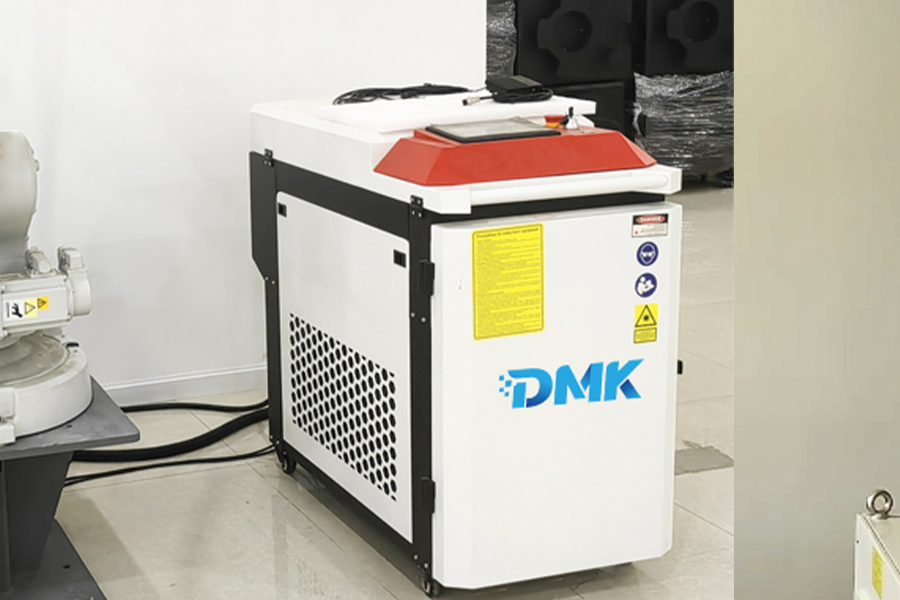

Fiber laser welders |

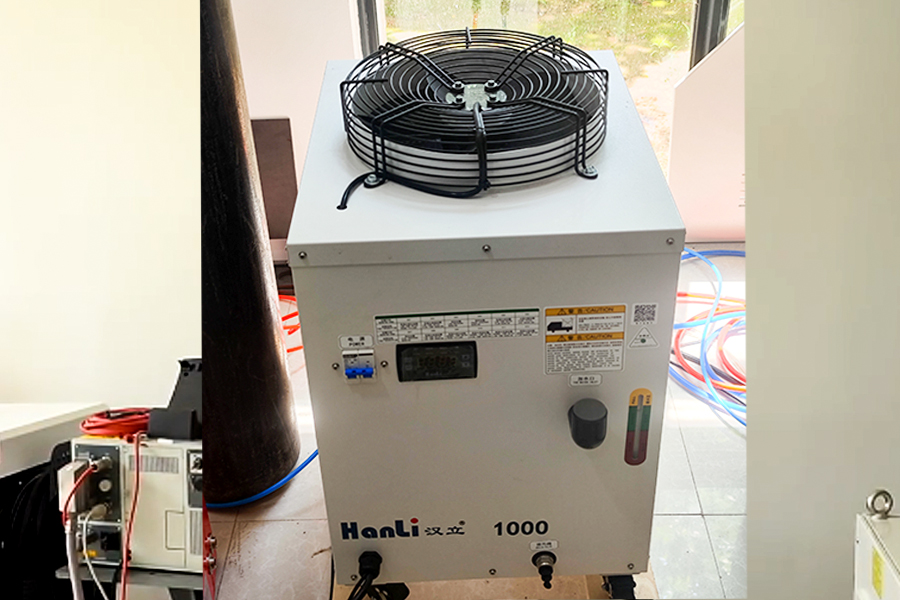

Laser Chiller |
|

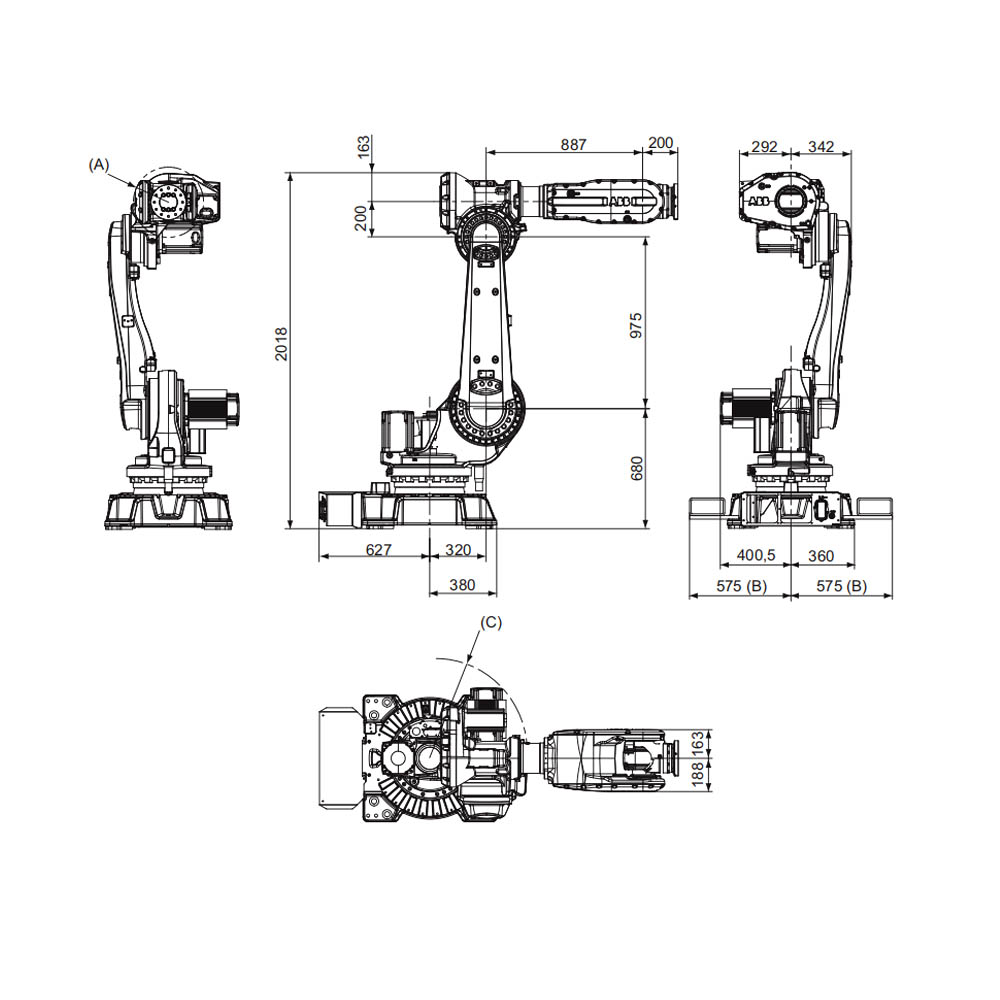

Dimensions
|
|
| Product Specifications |
| Reaching distance | 2.2 m |
| load capacity | 150kg |
| Robot extra payload | Upper arm 50kg, base 100kg |
| Number of axes | 6 |
| Protection level | IP 54 |
| Installation method | Floor, tilt or inverted |
| Repeatability | 0.1 mm |
| Robot base size | 760X760 mm |
| weight | 900kg |
| Application |
|

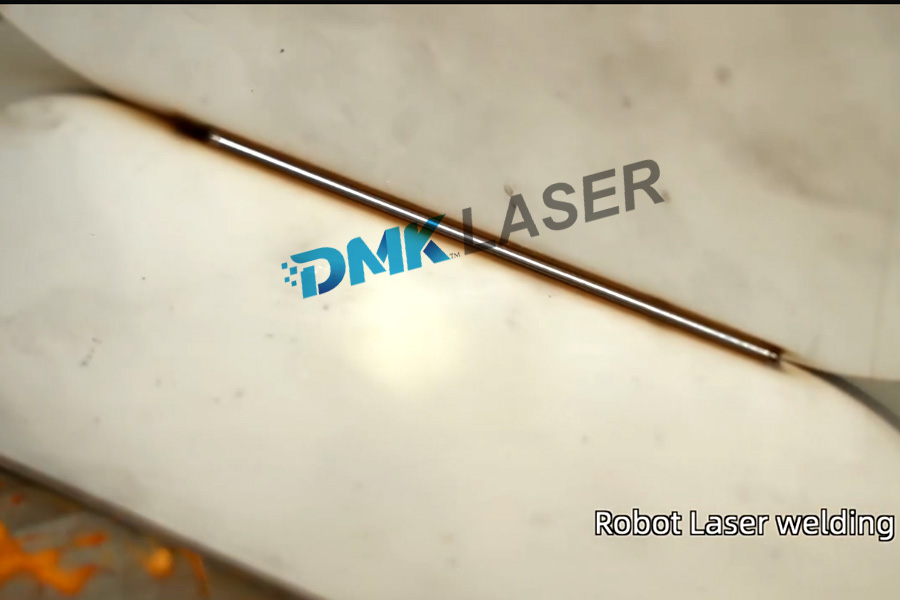

Spot welding\loading and unloading\material handling Welding Samples
|
