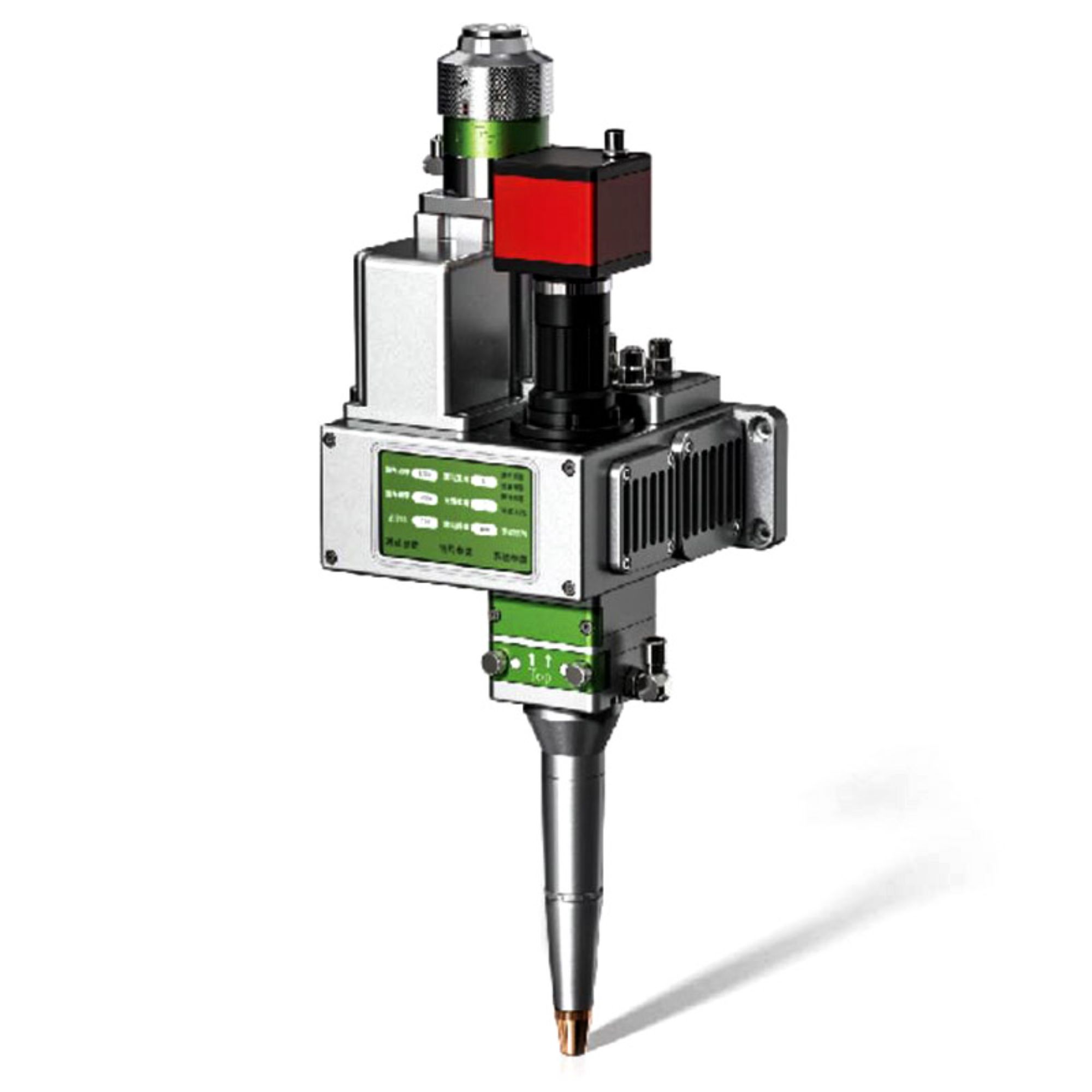

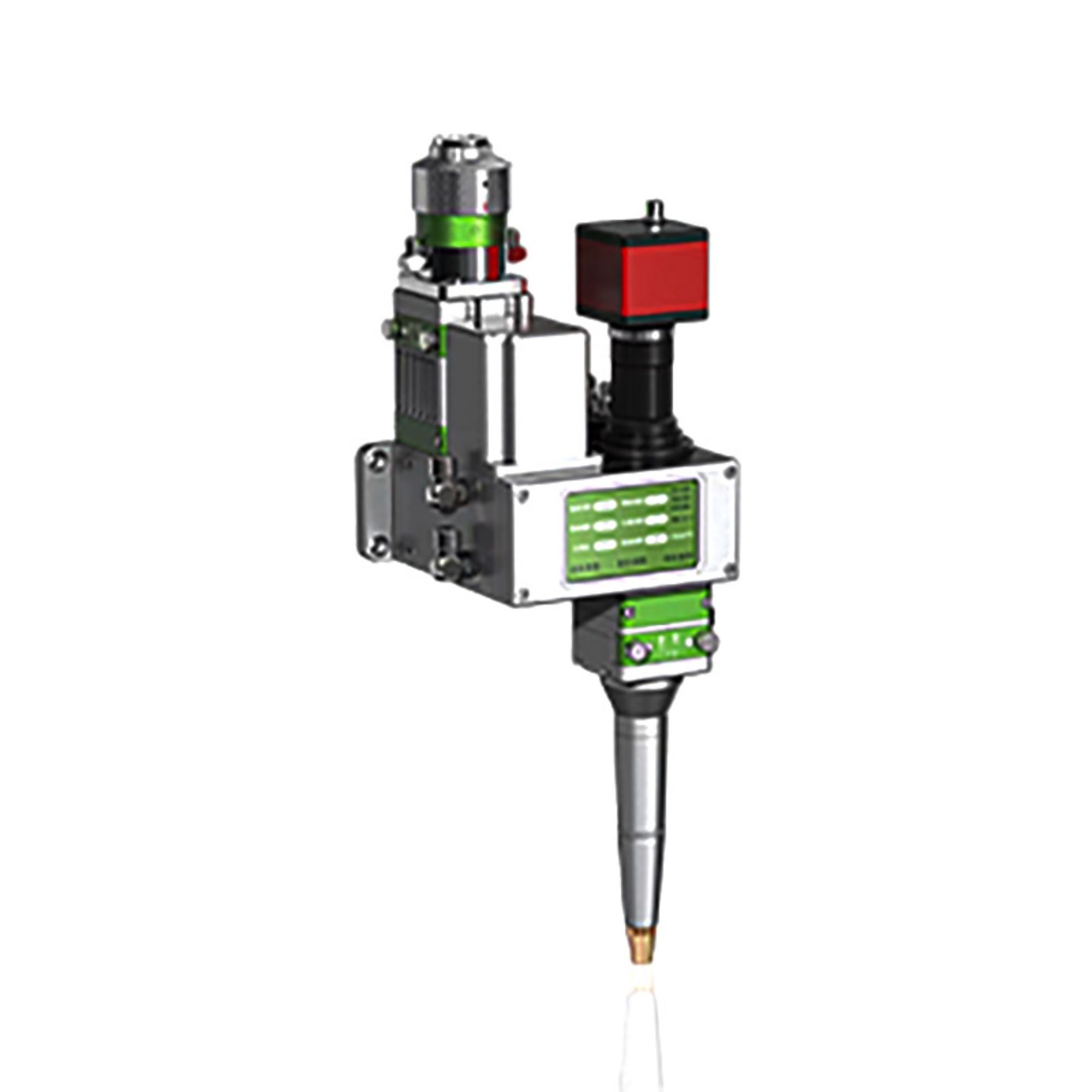

Relfar Intelligent Double Swing Welding Head
| Product Description |
 |
*Functional application, welding; *Independently developed control system, capable of offline and online; *8 kinds of spot modes and processes can be switched at will; *All lenses adopt a drawer-type modular design and are easy to replace; *High threshold optical components and better welding effects; |
| *Full body water-cooling design, longer-lasting stability; *Integrated CCD module, can be equipped with vision software or welding seam tracking system; *Intelligent protection system, real-time monitoring of all-optical system, real-time feedback of working status; |
 |
| Product Parameters |
| Optical fiber interface | QBH |
| Wavelength range | 1070±20NM |
| rated power | ≤3000W |
| collimation focal length | 100MM |
| focus focal length | 200/250/300/350MM |
| Scan range | X axis: 0-5mm, Y axis: 0-5mm |
| Intelligent protection function | have |
| Auxiliary air pressure | ≥0.5~0.8Mpa Coaxial/Paraxial |
| Effective clear aperture | 24MM |
| weight | 2.9KG |
| Accessory List |
| Intelligent double swing welding head | 1 set |
| Protective lens D30*2 | 4 pieces |
| industrial camera | 1 pieces |
| 24V switching power supply | 1 pieces |
| ±15V switching power supply | 1 pieces |
| 8 inch display | 1 item |
| Display cable | 1 item |
| Intelligent laser welding control system P2 | 1 pieces |
| blue light | 1 item |
| Motor cable (X-axis/Y-axis) | 1 item |
| Control line (monitoring, screen) | 1 item |
| Snake lateral trachea | 1 item |
| Power adapter cable (display) | 1 item |
| Power adapter cable (camera) | 1 item |
| CCD lens | 1 item |
| Application Scenarios |
|
Sheet metal industry, hardware industry, aviation industry, new energy industry.
|
