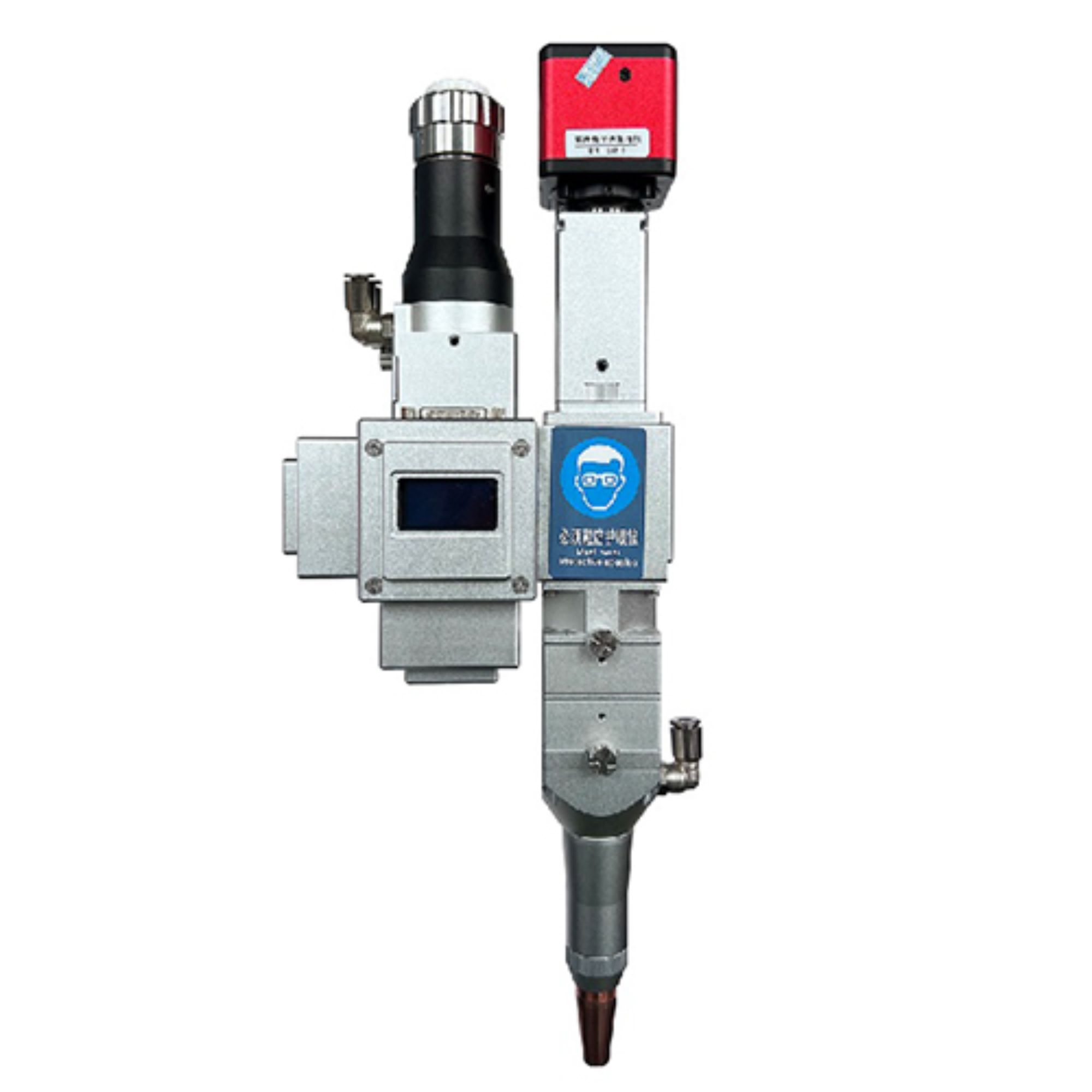

Qilin BWT30/ BWT30PC Dual Drive Wobble Laser Welding Head
| Product Description | |
|
●The swing angle can be set arbitrarily, and the fiber interface type: QBH/RD can be adapted to a variety of fiber lasers. ●The process package can be edited, stored and recalled, and the welding head is equipped with a coaxial air blowing device, which can effectively ensure that the welding seam is bright and beautiful. ●Modular design enables easy and fast assembly, optimized optical design, water cooling, double sealing, more durable and stable. ●Double-layer protective lens, drawer-type installation, lens carrying power 3000W. ●BWT30-PC can realize multi-station welding with different parameters. |
|
|

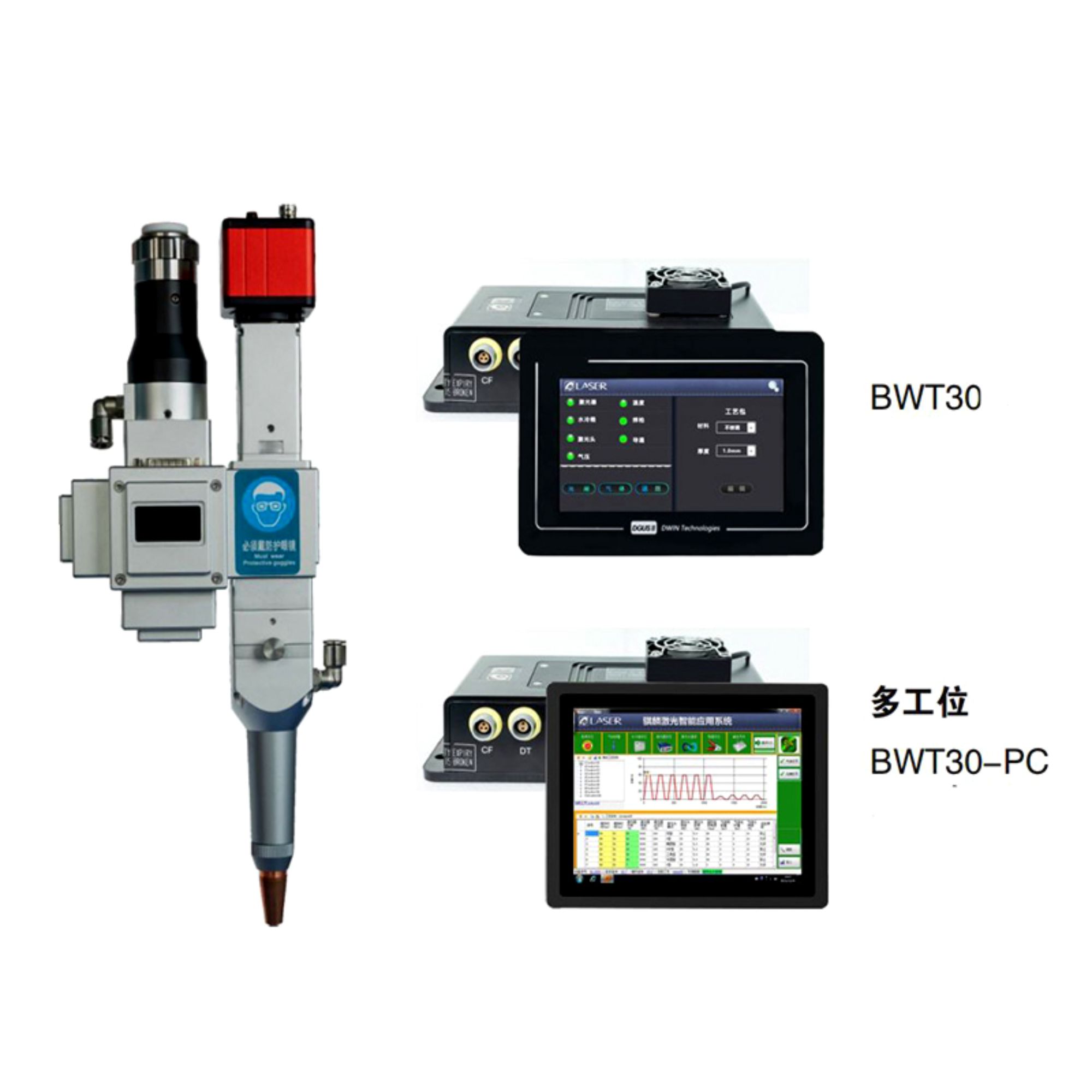

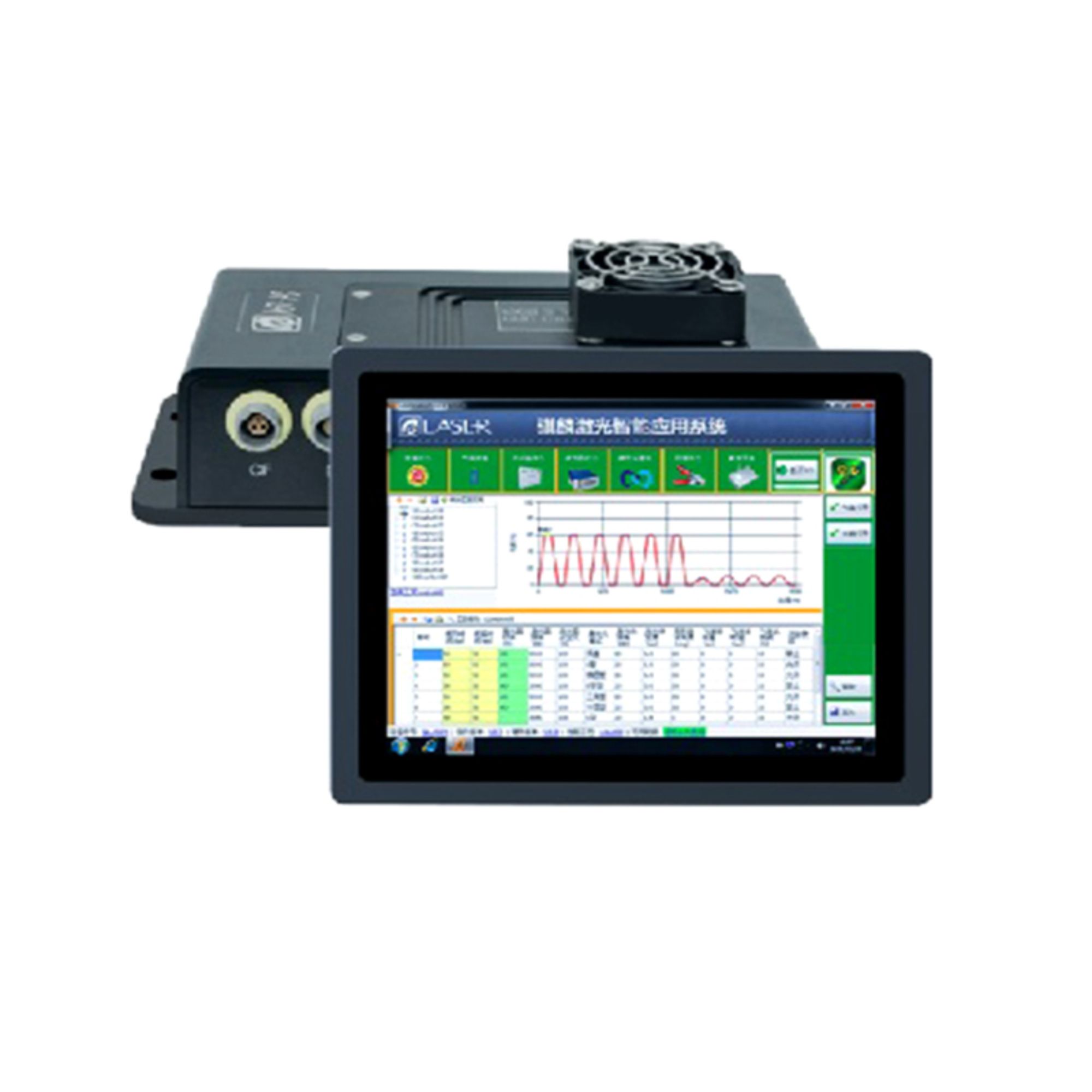

Multi-station BWT30-PC system control box + 15-inch display screen |

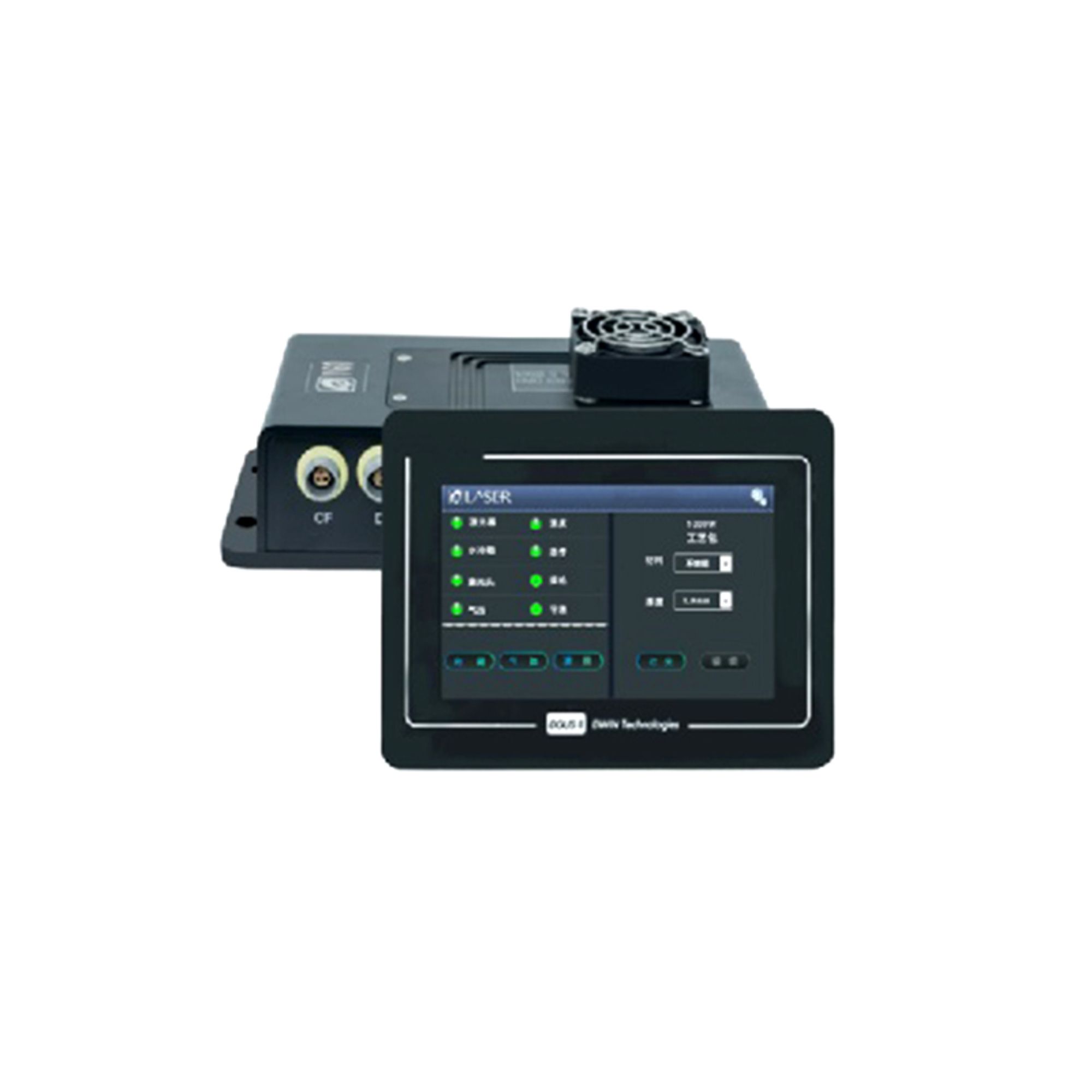

Single station BWT30 system control box + 7-inch display screen |
|
|
|
| Product parameters |
| Product Name | Light multi Station Industrial Welding Head |
| Interface | QBH/RD |
| Optical Aperture | 16mm |
| Power | 3000W |
| Wave Range | 0.2--5mm |
| Collimating Length | F75 |
| Wave Frequency | 2-30HZ adjustable |
| Focusing Length | F200/300 |
| Weight | 2.1KG |
| Wave Mode |  |
| Application |
QILIN welding head double oscillating head collimating lenses are mainly used in industrial manufacturing, including but not limited to the following areas:
Automotive manufacturing: In automotive manufacturing, welding is one of the key production processes. Qilin welding heads can ensure the welding quality of automotive parts and improve the overall performance and safety of automobiles.
Aerospace: In the aerospace field, the demand for welding quality is extremely high. Qilin Welding Heads can meet this requirement and ensure the structural stability and safety of aerospace vehicles.
Building and Construction: Welding also plays an important role in the building and construction industry. Qilin Welding Heads can be used to weld steel structures and other building materials to improve the overall quality of the building.
 |
 |
