Pulsed Handheld Mirror Laser Cleaner
Product Description |
The 300W pulsed handheld mirror laser cleaning equipment features custom high-peak pulsed lasers with a unique optical path configuration. It is ideal for non-destructive cleaning of thin rust, paint, coatings, oil, and other contaminants on various metal surfaces.
The unique design ensures a uniform laser cleaning effect even in handheld conditions, effectively removing pollutants while preserving the original mirror finish of the metal substrate. Even with repeated cleanings on the same spot, there is no damage, making it especially suitable for cleaning rolls and other high-gloss workpieces.
Product Advantages |
Preserving the Original Lustre of the Substrate
Even after repeated cleaning, the original mirror surface of the substrate is retained without damage, meeting the cleaning needs of high-gloss substrates such as rolls.
Uniform Cleaning Effect
With a long focus depth and advanced high-tolerance and beam homogenization rectification technology, the handheld device achieves a nearly uniform cleaning effect.
Thorough Cleaning without Oxidation
After a single cleaning, the substrate's temperature rise is less than 5°C. The cleaning effectively removes pollutants without causing yellowing, blackening, or other defects. For heavy contaminants, multiple reciprocal cleanings can still reveal the metallic luster.
Compact and Ultra-Portable Design
Featuring specialized optical, mechanical, and control deployment, the device is compact, portable, and easy to move. It is suitable for plant operations, outdoor use, and various mobile scenarios, including climbing.

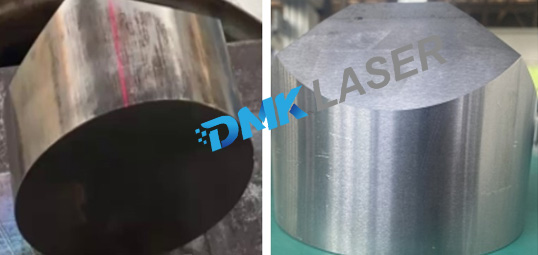

Comparison of cleaning effects of cemented carbide
Products Parameters |
Model | CL-HM-30OW |
Laser average power | 300W |
Fiber length | 5M |
Power adjustment range | 10%~100% adjustable |
Pulse frequency | 5KHZ~1KHZ adjustable |
Field lens model | Standard F254 (Select according to usage scenario) |
Scan width | Length: 5mm~150mm adjustable Width: 5mm~150mm adjustable (larger width requires customized scene) |
Cooling method | air cooling |
Net weight | 60kg |
Cleaning head type | Two-position handheld cleaning head |
Chassis size | L520mm*W270mm*H440mm |
Supply voltage | AC220士10%V |
Application |
Aluminum alloy cleaning

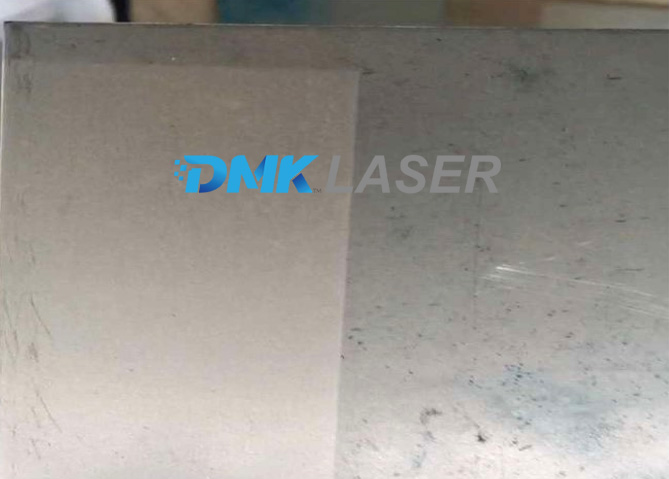

Aluminum alloy surface coating and dust cleaning

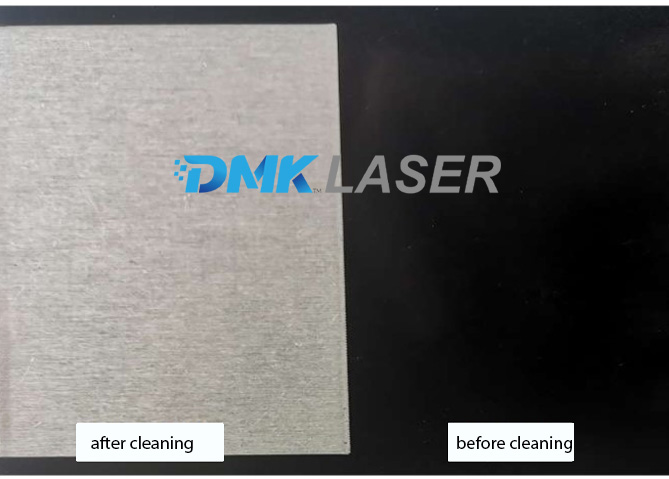

Aluminum alloy paint cleaning
