Fiber Laser Repair Tool Kit

Fiber laser repair tool set, including large core fiber cutter, large core fiber fusion splicer, fiber laser power meter, thermal imager and other equipment

The large-diameter fiber cleaver SFC-XL is specially used for cutting a single fiber with a diameter of less than 1250um; this model does not have an angle cutting module; the SFC-XLA model of a large-diameter fiber cleaver has a rotating module, which can angle the fiber Cutting; the SFC-XL-B model large-diameter fiber optic cleaver has a built-in large-capacity battery, and does not need to be connected to a power adapter when working, which is easy to move. SFC-XL series fiber optic cleavers are equipped with a vacuum suction function, which makes the fiber entry into the groove more stable and reliable when putting the fiber into the V-groove of the insert; Reliable cleaving of 80um to 1250um fiber.

•

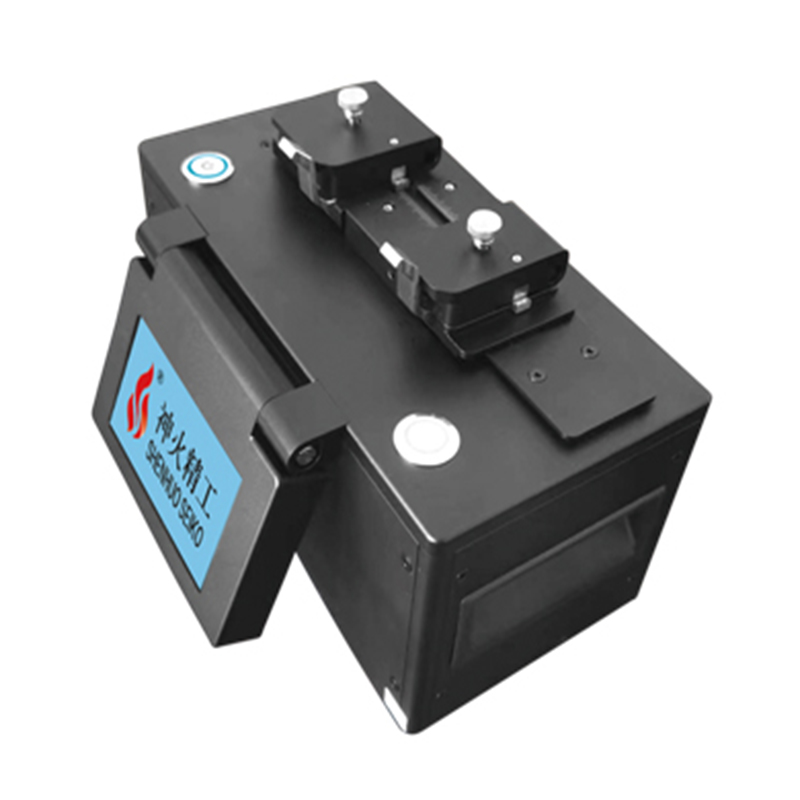

  Large core fiber cleaver

•

  Large core fiber cleaver

The large diameter fiber fusion splicer is used to splice a single fiber with a cladding diameter within the range of 125-500um. Among them, the MS-XL-B fusion splicer has a built-in large-capacity battery, and does not need to be connected to a power adapter when working. It is suitable for laser maintenance and narrow space operations. The unique "stepped V-groove" and "split-type indenter" can hold the optical fiber with a cladding diameter of 125um to 500um stably, so as to obtain a more stable fusion process. The large-diameter optical fiber fusion splicer is suitable for the production of optical fiber components and Testing, fiber laser manufacturing and repair.

•

  Large Diameter Optical Fiber Fusion Splicer

•

  Large Diameter Optical Fiber Fusion Splicer

The PRONTO series is so compact that it can be taken anywhere.

Our power detectors are also available in BLU and INTEGRA versions with wireless and USB/RS-232 integrated connectors respectively. You can use them to measure laser power directly on your computer, eliminating the need to carry separate acquisition and readout devices.

•

  High precision laser power meter

•

  High precision laser power meter

In fiber lasers, the fiber may absorb laser energy to increase the temperature, accelerate the aging of the fiber, and reduce the reliability and service life of the laser. During use, use a thermal imager to detect the temperature distribution of the entire section of optical fiber and components, especially the temperature at the fiber splicing point and connection, so that abnormalities can be found in time.

•

  Infrared Thermometer

•

  Infrared Thermometer

·UV curing low refractive index optical fiber coating is suitable for large core diameter multimode optical fiber and double-clad active optical fiber, which not only realizes the coating and protection of special optical fiber, but also effectively reduces optical loss;

·UV curable low refractive index glue is suitable for splice coating of special optical fiber

•

  Large Diameter Optical Fiber Fusion Splicer

•

  Large Diameter Optical Fiber Fusion Splicer

·UV curing low refractive index optical fiber coating is suitable for large core diameter multimode optical fiber and double-clad active optical fiber, which not only realizes the coating and protection of special optical fiber, but also effectively reduces optical loss;
·UV curable low refractive index glue is suitable for splice coating of special optical fiber

•

  Low Refractive Index UV Glue

•

  Low Refractive Index UV Glue
