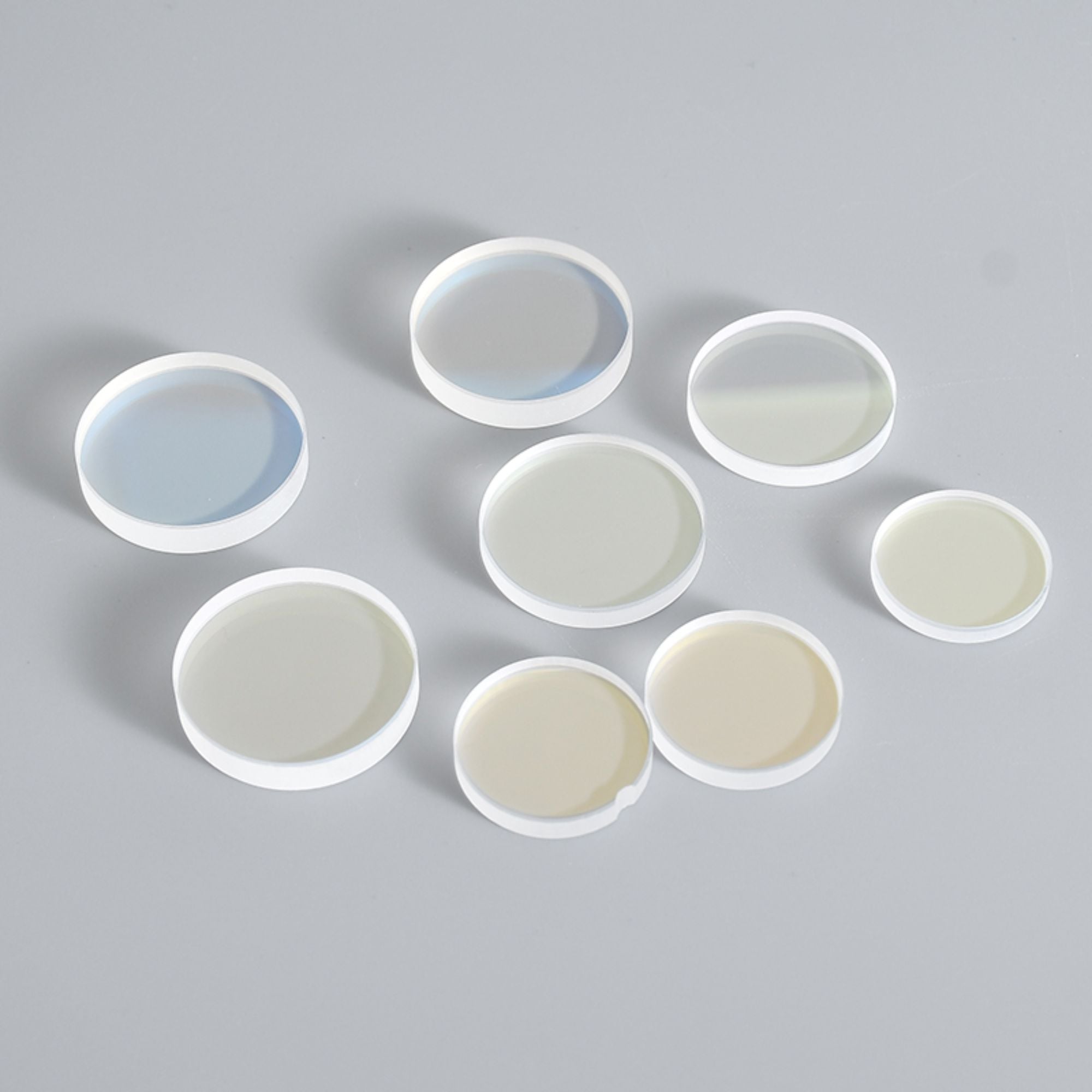

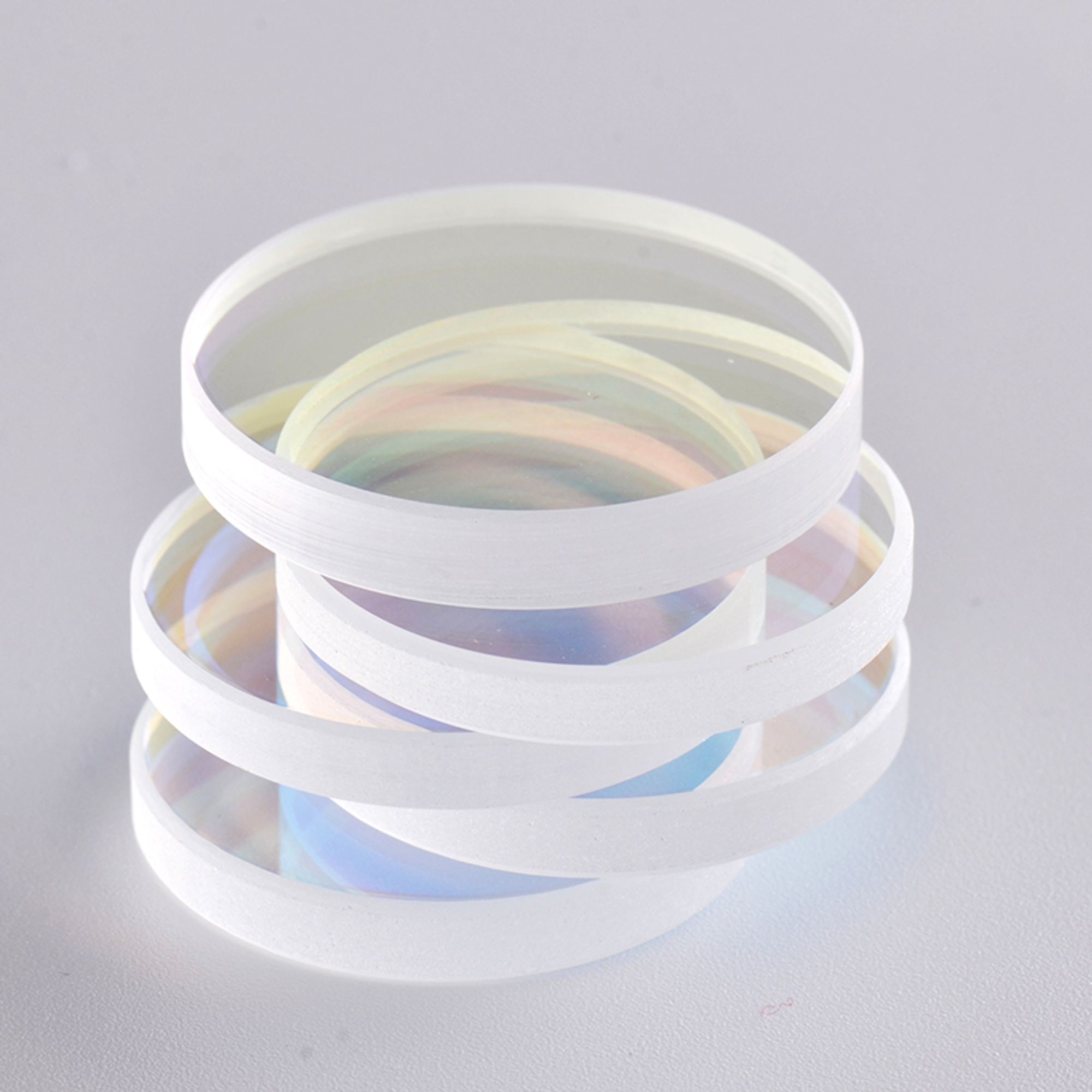

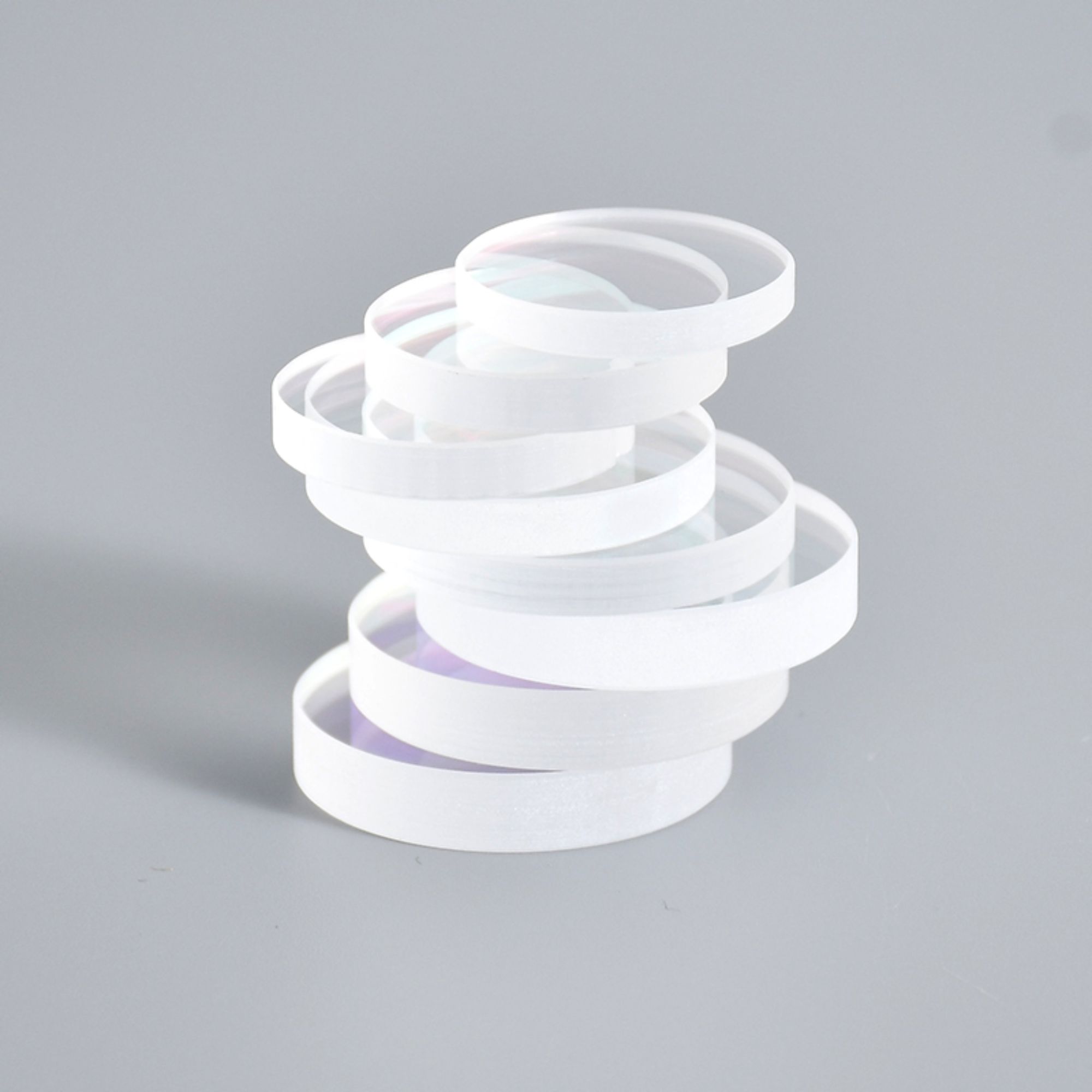

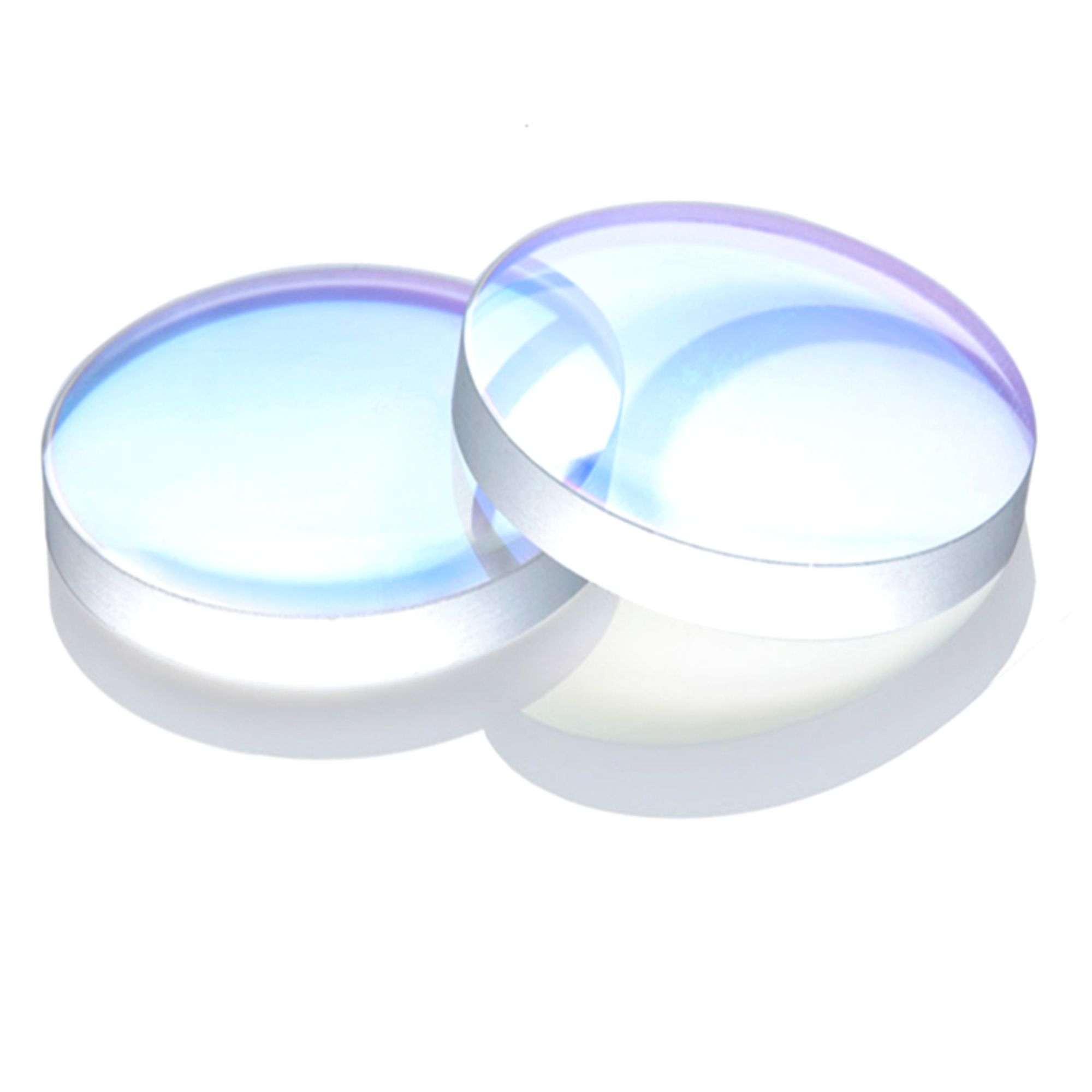

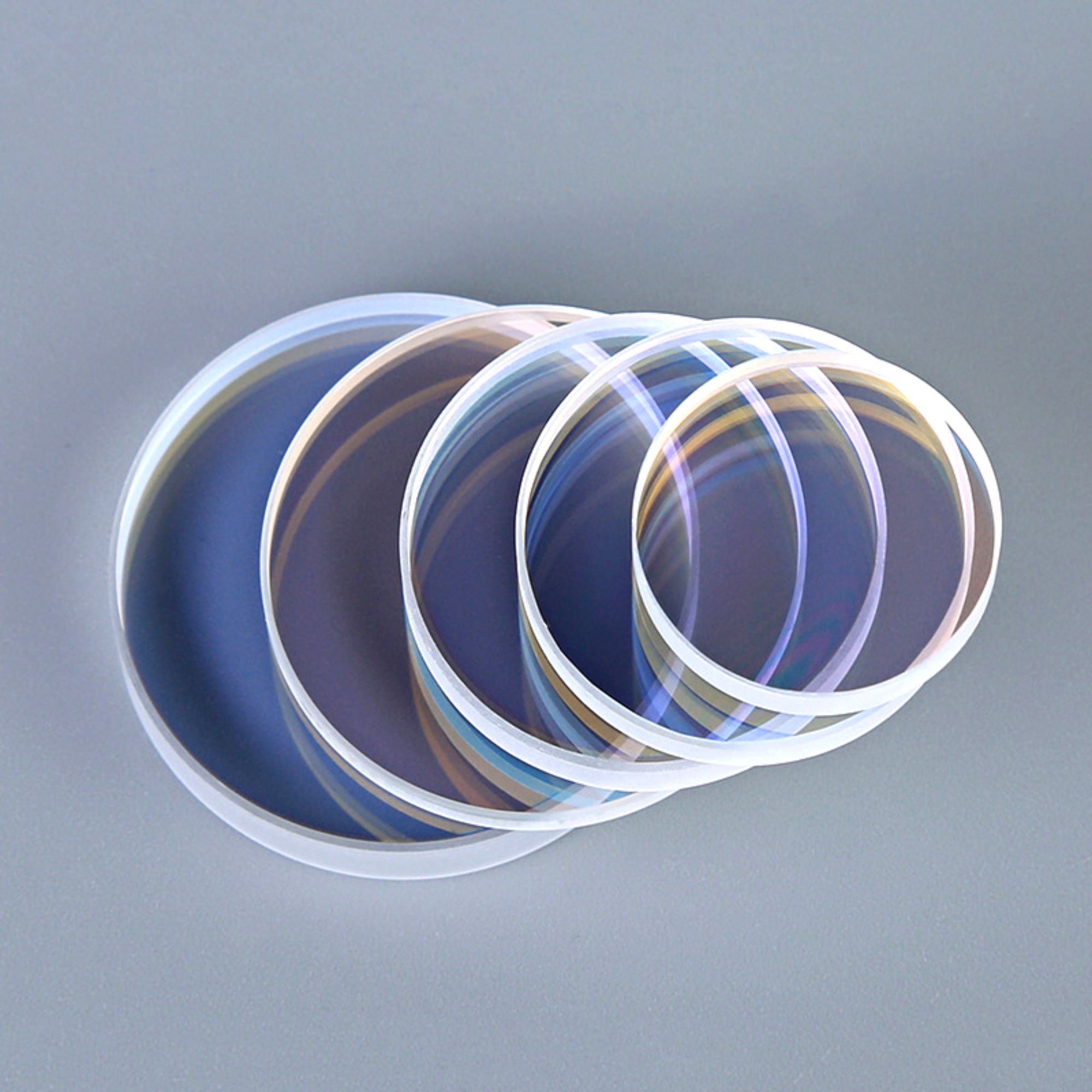

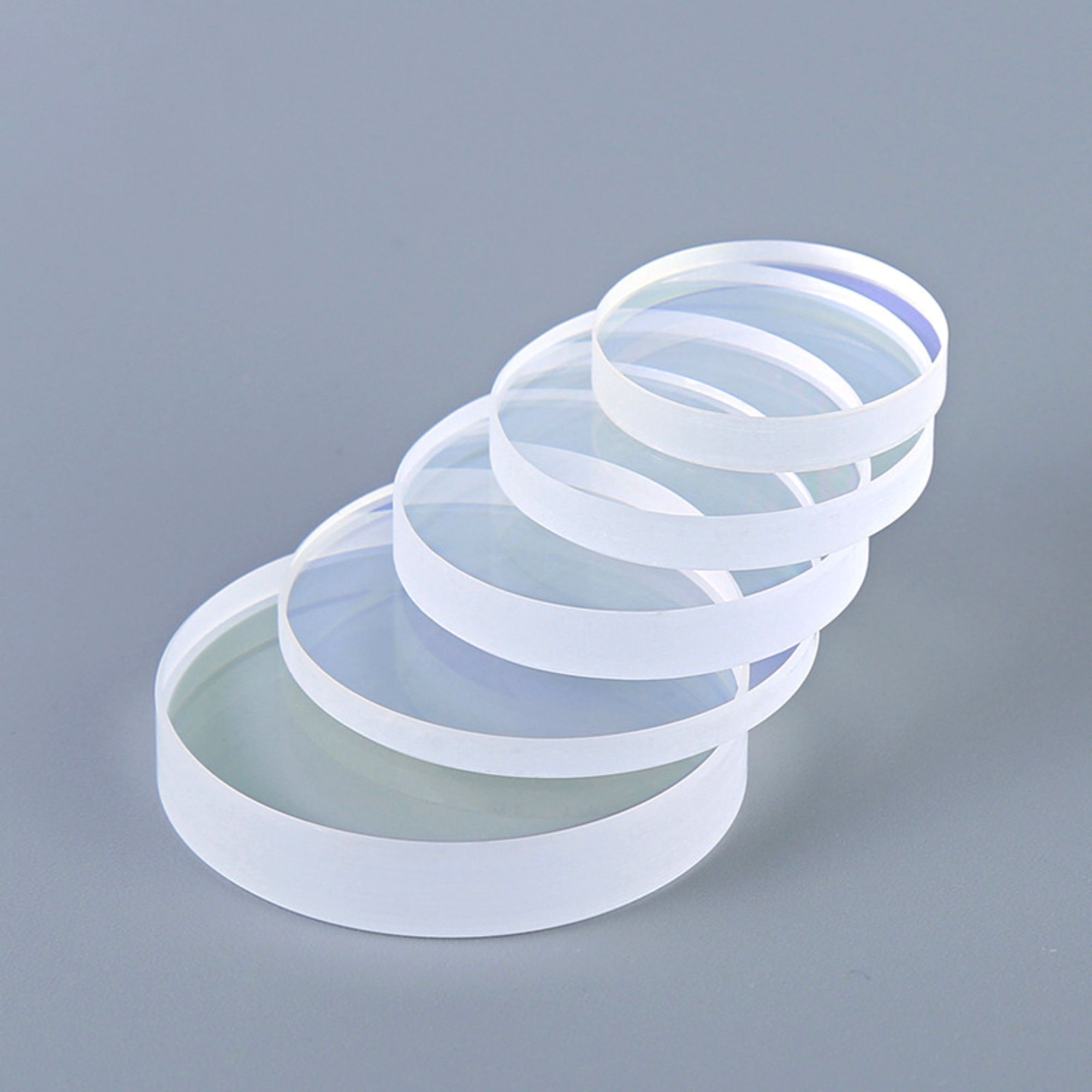

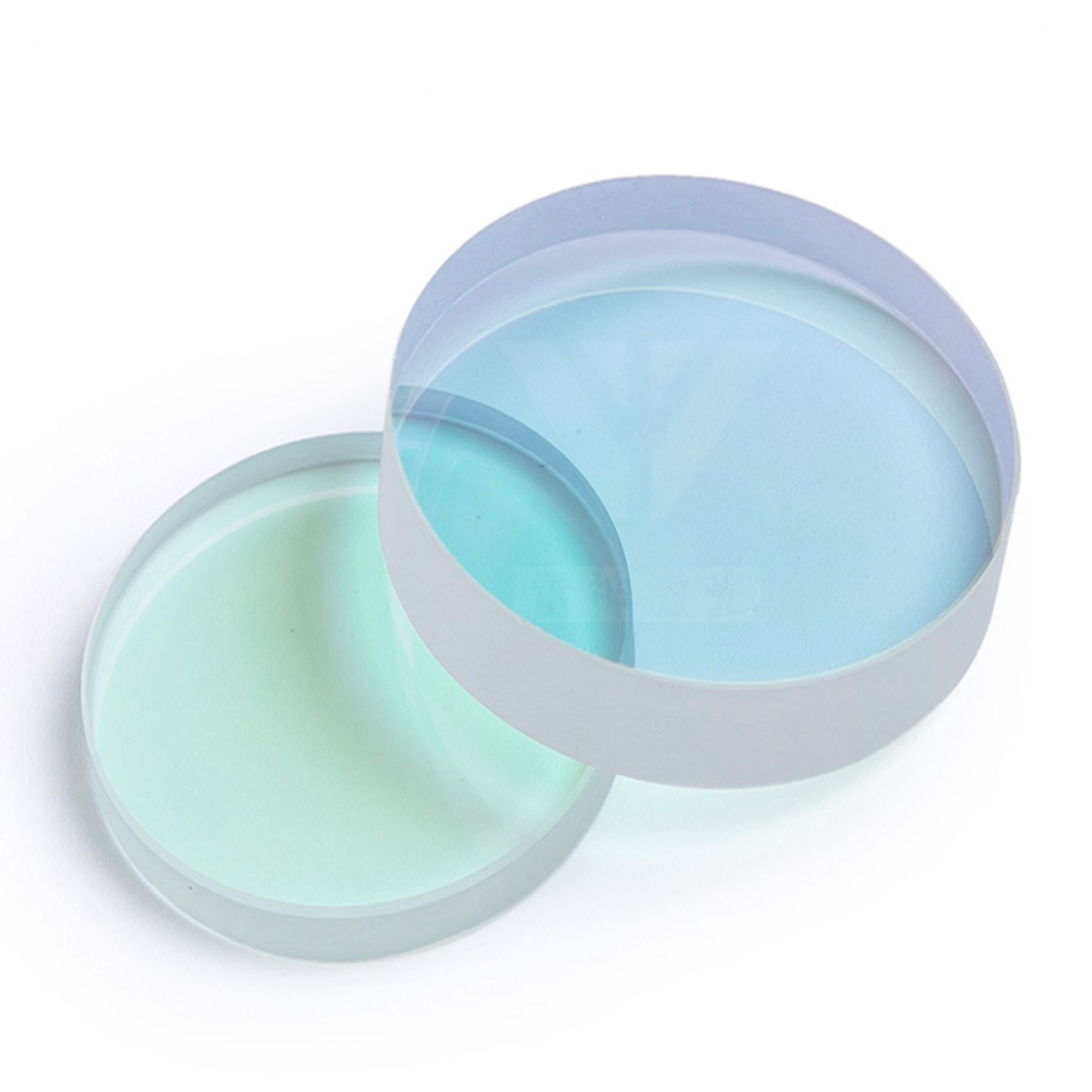

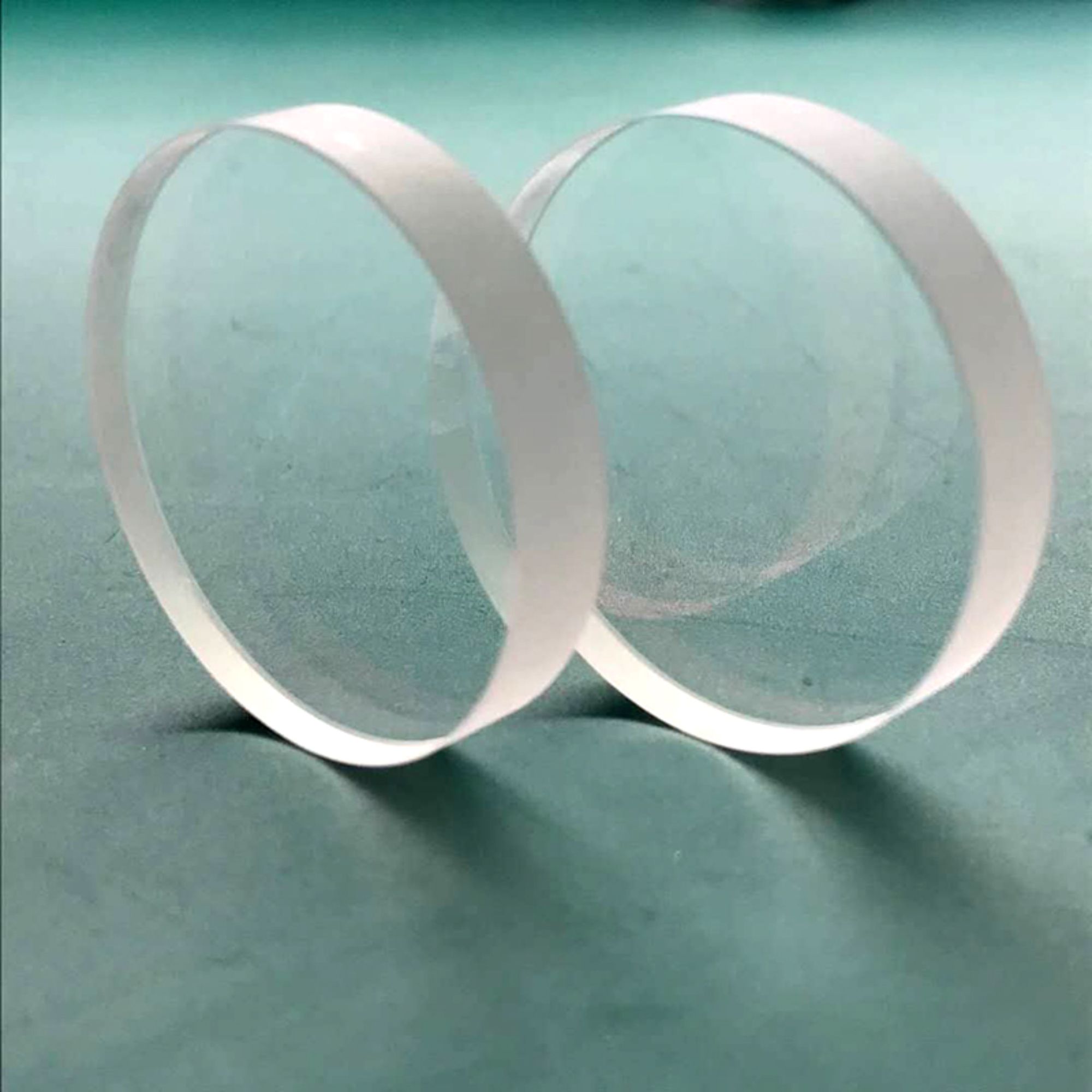

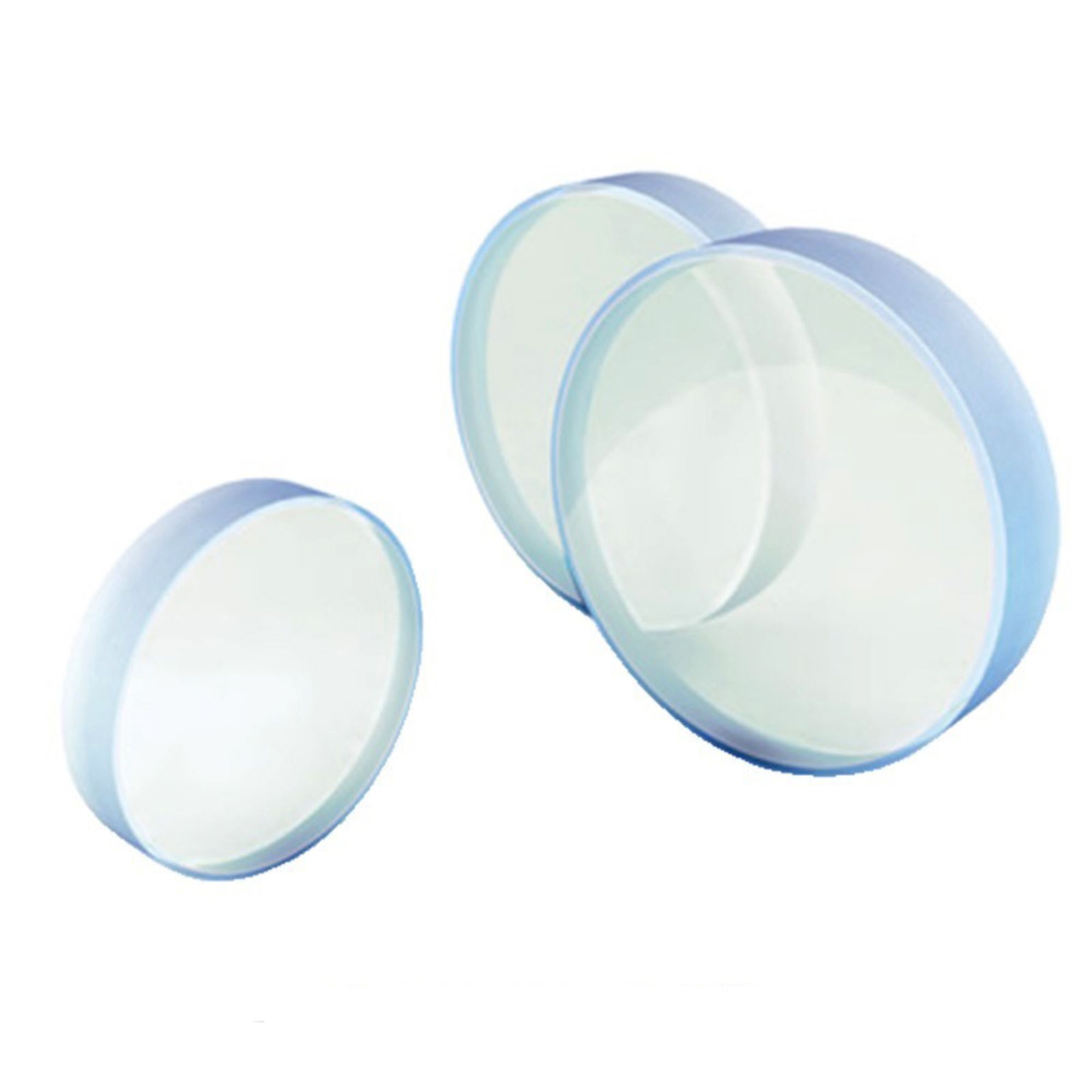

Laser Protective Window
| Product Description |
 |
Material | High temperature resistant quartz crystal |
| Coating | Double-sided AR coating | |
| equipment | German optical equipment | |
| Process | Slicing, spheronization, polishing, polishing, vacuum high-temperature coating, sorting, ultrasonic cleaning, manual inspection, packaging, etc. |
| Product Parameters |
| Material | JGS1/quartz |  |
| Diameter range | 20-140MM | |
| Thickness range | 1-9MM | |
| Diameter tolerance | ±0.01mm | |
| Thickness tolerance | ±0.01mm | |
| Wavelength | 1064nm | |
| Transmittance | 99.998% | |
| Clear aperture | ≥90% | |
| Parallelism | <0.1mm | |
| Surface Quality | 20/10 | |
| Chamfer | <45° |
| Brand | model | Upper protective lens | Under protective lens |
| Raytools | BT210S | 24.9*1.5 | 27.9*4.1 |
| Raytools | BT220 | BT220 | 27.9*4.1 |
| Raytools | BT240S | 24.9*1.5 | 27.9*4.1 |
| Raytools | BM109FC | 24.9*1.5 | 27.9*4.1 |
| Raytools | BM110 | 24.9*1.5 | 27.9*4.1 |
| Raytools | BM111FC | 24.9*1.5 | 27.9*4.1 |
| Raytools | BM114S | 38.1*1.5 | 37*7 |
| Raytools | BM115 | 38.1*1.5 | 37*7 |
| Raytools | BM116 | 38.1*1.5 | 37*7/50*2 |
| WSX | MN15 | 24.7*2 | 25.4*4 |
| WSX | KC13 | 22.35*4 | 30*5 |
| WSX | KC15 | 22.35*4 | 30*5 |
| WSX | NC12 | 22.35*4 | 25.4*4 |
| WSX | NC30 | 22.35*4 | 30*5 |
| WSX | NC60 | 32*2 | 37*7 |
| Product features |
 |
Doesn't collapse, easy to crack Using high quality quartz crystal substrate, the texture is uniform, the mechanical strength is high, the lens is not easy to collapse and crack. |
|
High temperature resistance and strong laser resistance It is processed through multiple high-precision processes such as slicing, grinding, polishing, and coating. The lens has good thermal stability, excellent optical performance, and strong laser resistance. |
 |
 |
High light transmittance, strong anti-slag Anti-reflection coatings with high damage thresholds are coated on both sides of the lens to reduce the loss caused by reflection, and the coating is protected from splashes and other hazards, and the life is long. |
|
Safe and easy to use The humanized 45-degree protective full-angle design is easy to apply and does not hurt your hands. |
 |
| Product Process |
|
Grinding machine |
Vacuum coating machine |
|
Optical performance test |
Aluminum foil sealed packaging |
|
Ultrasonic cleaning machine |
Inspection |
|
Packaging |
-—— |
