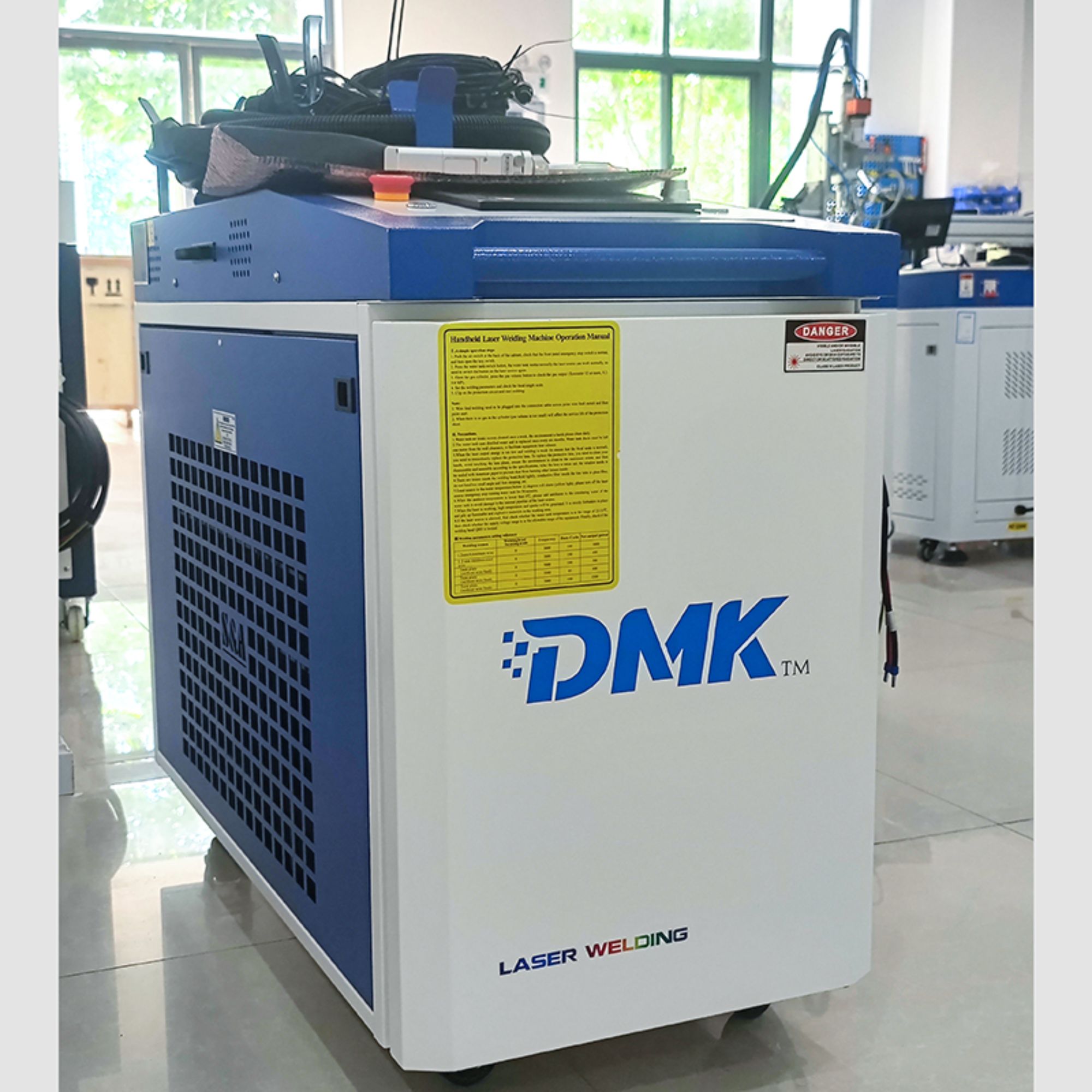

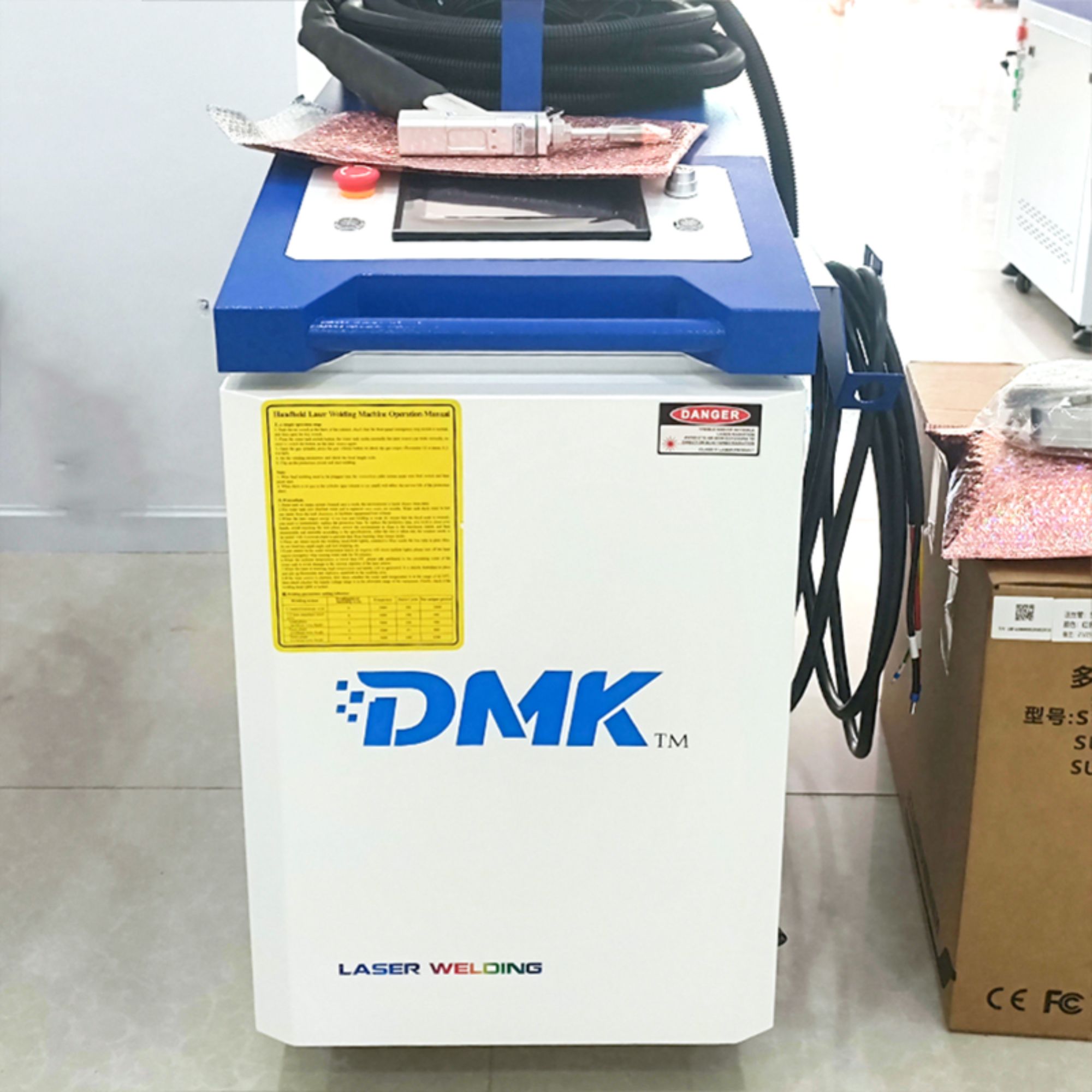

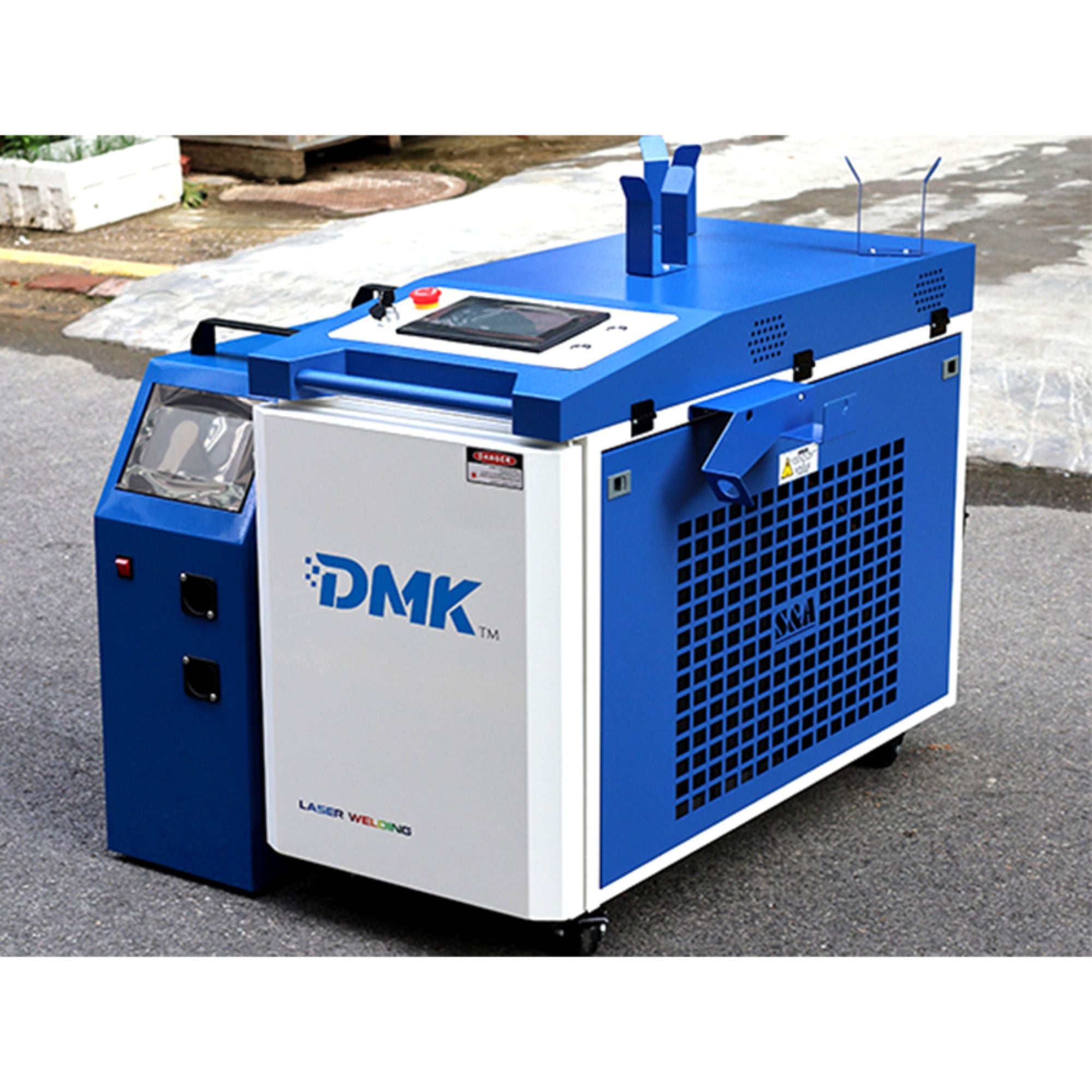

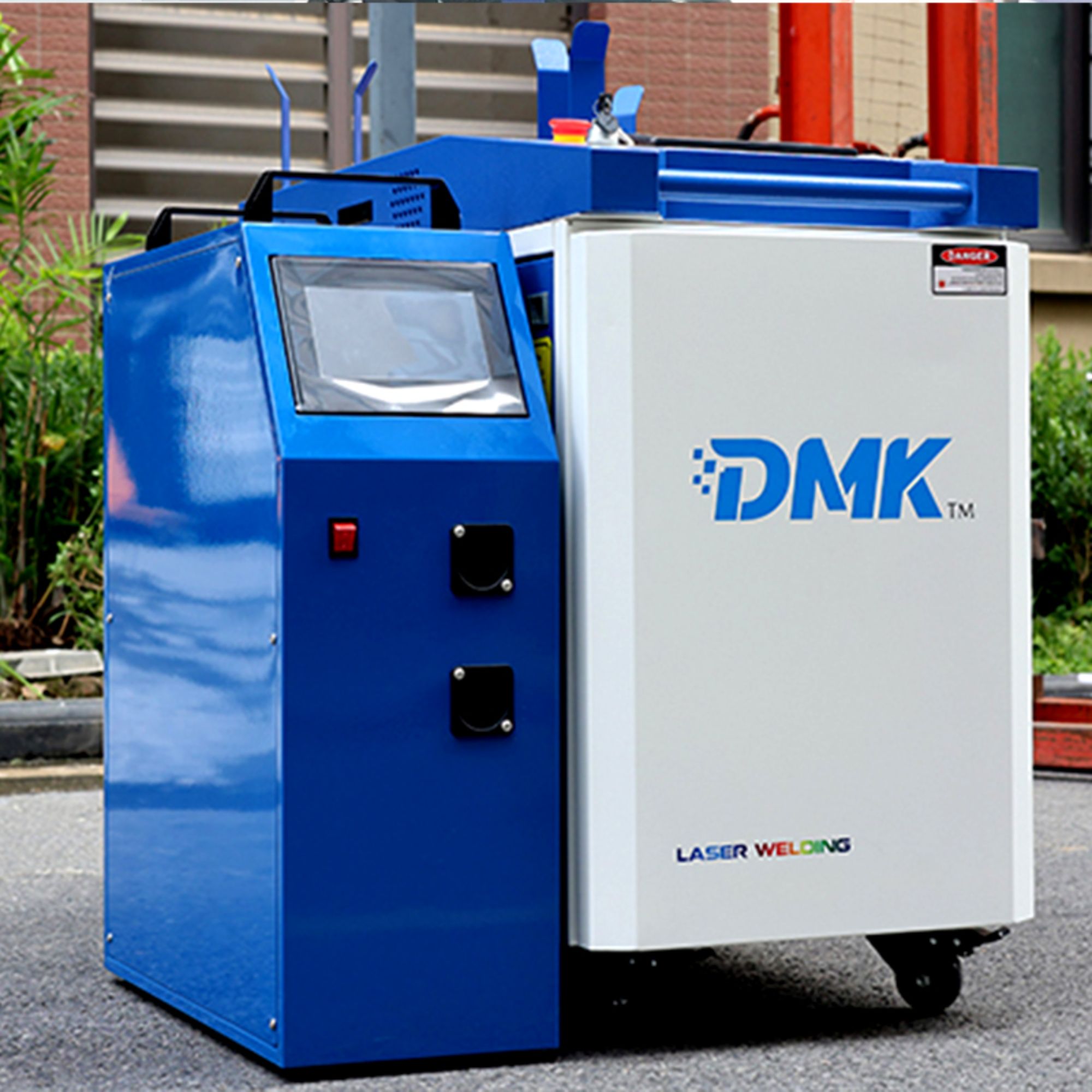

DMK 1500W Integrated Handheld Fiber Laser Welding Machines
DMK 1500W Integrated Handheld Fiber Laser Welding Machines
DMK 1500W Integrated Handheld Fiber Laser Welding Machines
DMK 1500W Integrated Handheld Fiber Laser Welding Machines
DMK 1500W Integrated Handheld Fiber Laser Welding Machines
DMK 1500W Integrated Handheld Fiber Laser Welding Machines
DMK 1500W Integrated Handheld Fiber Laser Welding Machines
DMK 1500W Integrated Handheld Fiber Laser Welding Machines

DMK 1500W Integrated Handheld Fiber Laser Welding Machines

Product Description
The MINI handheld laser welding machine adopts an integrated design. The laser, water tank and control part are integrated together. It occupies a smaller area and has low site requirements. It is equipped with moving pulleys, and the working position can be adjusted at any time according to on-site requirements

★The handheld laser welding head is equipped with 5m-10M original optical fiber, which is flexible and convenient, and can realize outdoor welding
★The handheld laser welding machine is equipped with a special welding nozzle that can weld any part of the workpiece at any angle
★The handheld laser welding machine has beautiful welds and strong welding; suitable for tailor welding, stack welding, irregular shape welding, etc.
★The handheld laser welding machine is highly functional and suitable for various working environment scenarios; it has proprietary laser safety operation protection functions and is easy to learn and operate
★Handheld laser welding machine can weld stainless steel, carbon steel, aluminum alloy, galvanized sheet, wire filler welding; can be used in hardware, elevators, home appliances, advertising, shelves, furniture, lamps, doors and windows, chassis cabinets, kitchenware, kitchen and bathroom
and other industries

Specification
Model DHH1000 DHH1500 DHH2000
Laser power 1000W 1500W 2000W
Stainless Steel Welding Penetration 2.68mm 3.59mm 4.57mm
Carbon steel welding penetration 2.06mm 2.77mm 3.59mm
Welding penetration of aluminum alloy 2.00mm 3.00mm 4.00mm
Focus spot size 0.2-5.0mm 0.2-5.0mm 0.2-5.0mm
Wire feed specification 0.8/1.0/1.2mm 0.8/1.0/1.2/1.6mm 0.8/1.0/1.2/1.6mm
Cooling method water cooling water cooling water cooling
Power supply 220V/50-60HZ 220V/50-60HZ 220V/50-60HZ
Total power 4.5KW 6.5KW 8.5KW
Overall size 109x45x79cm 109x45x79cm 109x45x79cm
For More Details

MAX/RAYCUS laser source

Control Screen

Welding Head

Back of device


thermostat

Water inlet

drain outlet

casters
Application

Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.


Company Profile

Demark (Wuhan) Science & Technology Co.,Ltd Locates In Free Trade Zone Of East-Lake Hi-Tech Development District In Wuhan City, The Company Is Invested By High Level Technical And Managerial Professionals In China Laser Industry, With More Than 20 Years Working Experience In China Laser Welding Industry, From The Intergration Of Laser Welding Machine To The Operation Details Of Fabrication Factories, They Have Experienced The Time Changes And More Than Ten Thousand Installations All Over China, The Target Of Demark Is Exporting The Best Value Chain Of Chinese Laser Welding Machine Or Fabricating Machineries To The Global Fabricators, To Be Your Best Partner When You Are Purchasing Laser Welding Machine Or Fabricating Machineries In China With The Most Professional Service.
