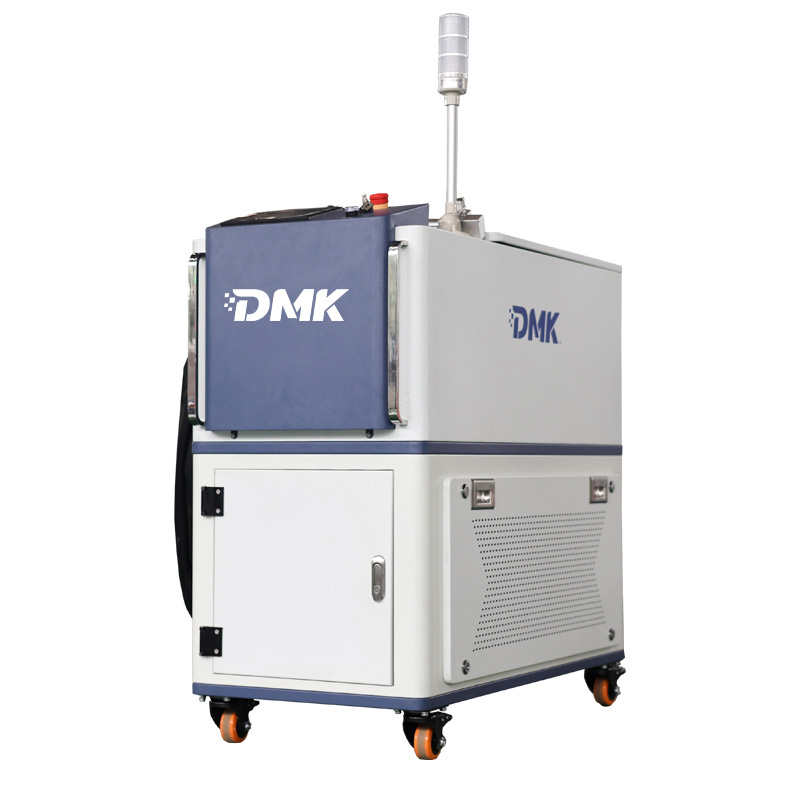

DMK Handheld 2000W CW Laser Etching Cleaning Machine
Product Description
| The laser cleaning machine can efficiently remove resin, oil stains, stains, dirt, rust, coating, plating, and paint on the surface of the workpiece, meeting the cleaning requirements of complex shapes and fine positioning in the industrial processing field, achieving a cleaner cleaning effect with higher cleanliness, and a higher overall cost. |  |
 |
Low production efficiency. Mainly used in automobile manufacturing,mechanical processing, electronic processing, cultural relic restoration, mold industry, shipbuilding industry, food processing, petrochemical industry and other industries. |
Specification
| Type | DCL-2000 | DCL-3000 |
| Laser source | CW Fiber | CW Fiber |
| Laser Power | 2000W | 3000W |
| Fiber cable | 10M | 20M |
| Wavelength | 1070nm | 1070nm |
| Clean speed | ≤50M²/Hour | ≤70M²/Hour |
| Beam width | 10-200mm | 10-200mm |
| Scann speed | 0-7000mm/s | 0-7000mm/s |
| Cooling | Water cooling | Water cooling |
| Voltage | Three Phase 380/220V, 50/60HZ | Three Phase 380/220V, 50/60HZ |
For More Details
|

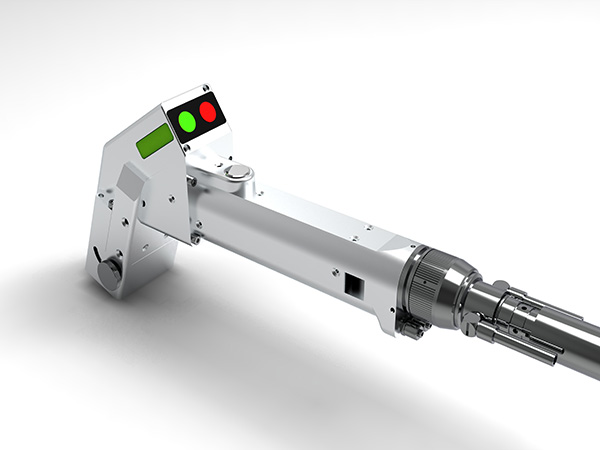

Self-developed laser cleaning head, more stable |

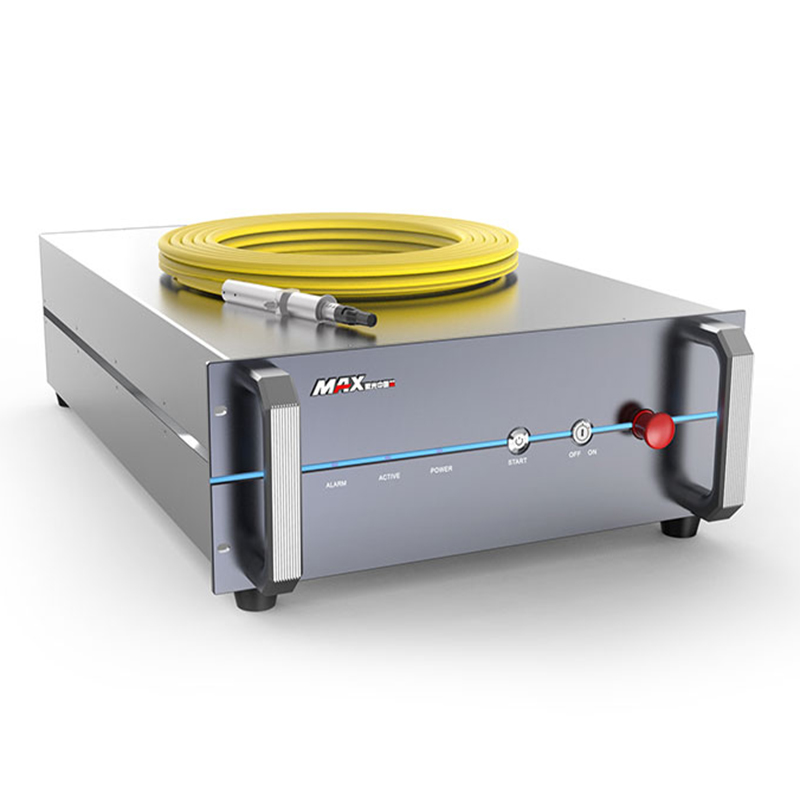

MAX/Raycus/JPT/Reci |
|
Components are produced using EU and North American certification standards, with strict production processes and high qualityinspection standards |

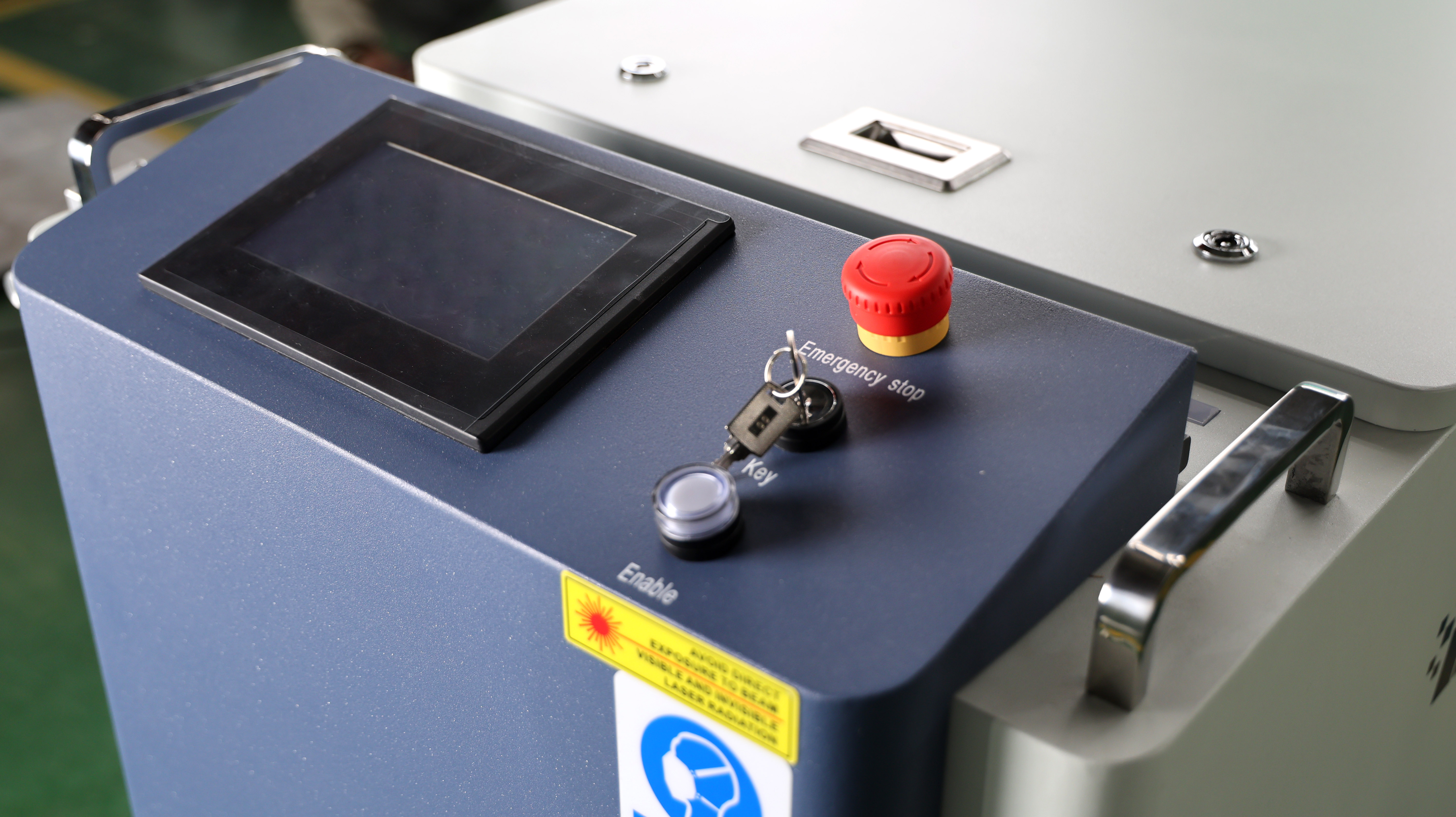

Control panel, easy to operate |
Application
Use CW-H-3000W, connect the self-developed cleaning head, clean the carbon steel with oxide layer 2 times, clean 1 time + texturing 1 time, clean 1 time + texturing 2 times, and measure the roughness, as shown in the figure shown. The results show that the degree of texturing effect is more obvious.The self-developed cleaning head has better cleaning effect, and the texturing function can also improve the roughness well.

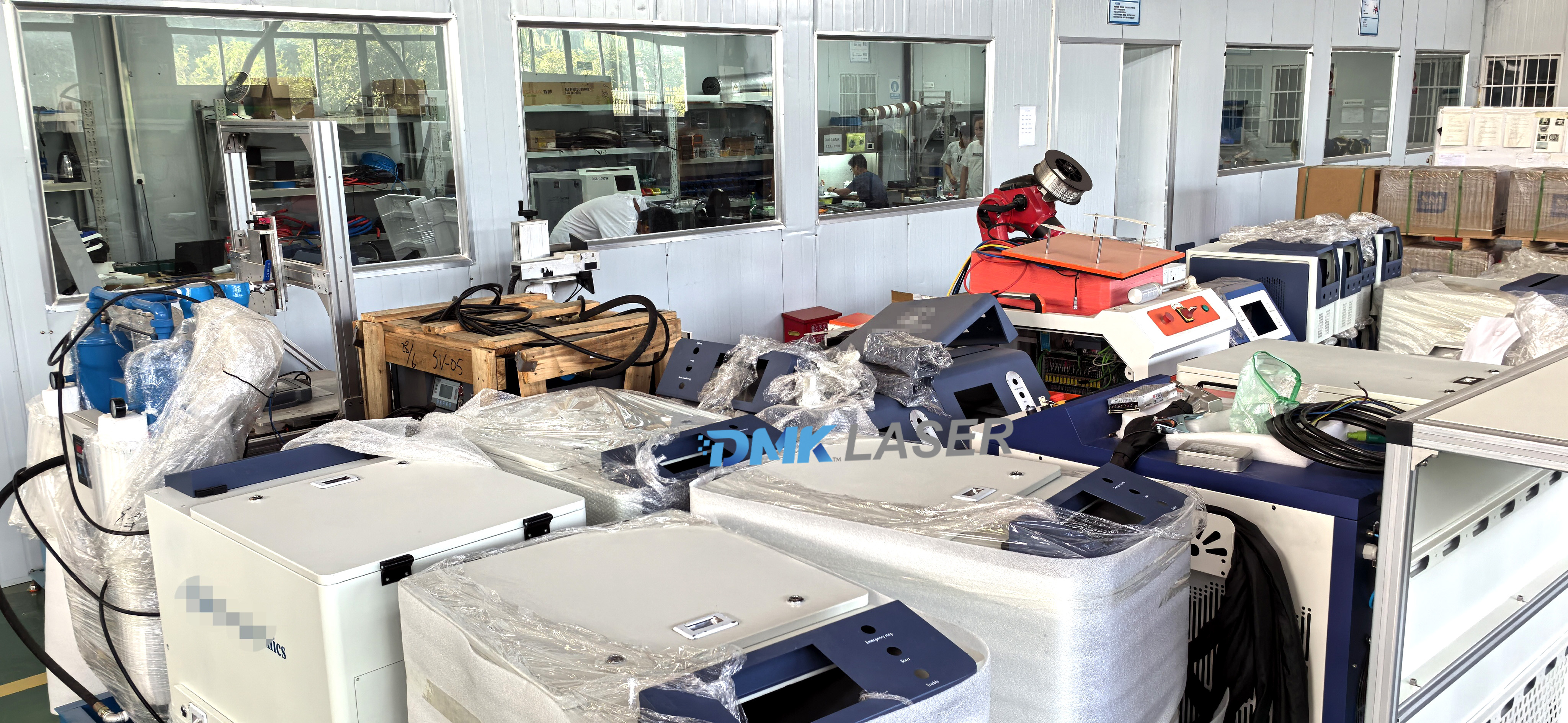

Company Profile
Demark (Wuhan) Technology Co., Ltd is a high-tech enterprise focusing on theresearch and development, production, sales and service of fiber laser equipment. lt isheadquartered in Wuhan Optics Valley, the birthplace of laser technology in China.Relying on the solid scientific research strength of Huazhong University of Science andTechnology, the company has mastered a number of core technologies in laser cuttingwelding, cleaning and marking through more than 20 years of exploration andaccumulation,and has more than 60 patent protections.
