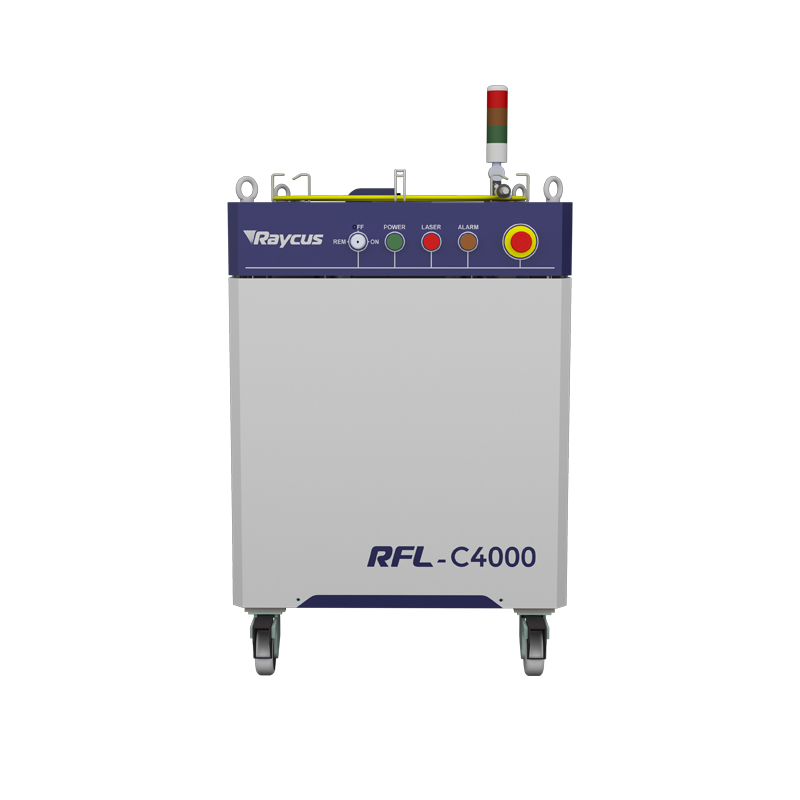

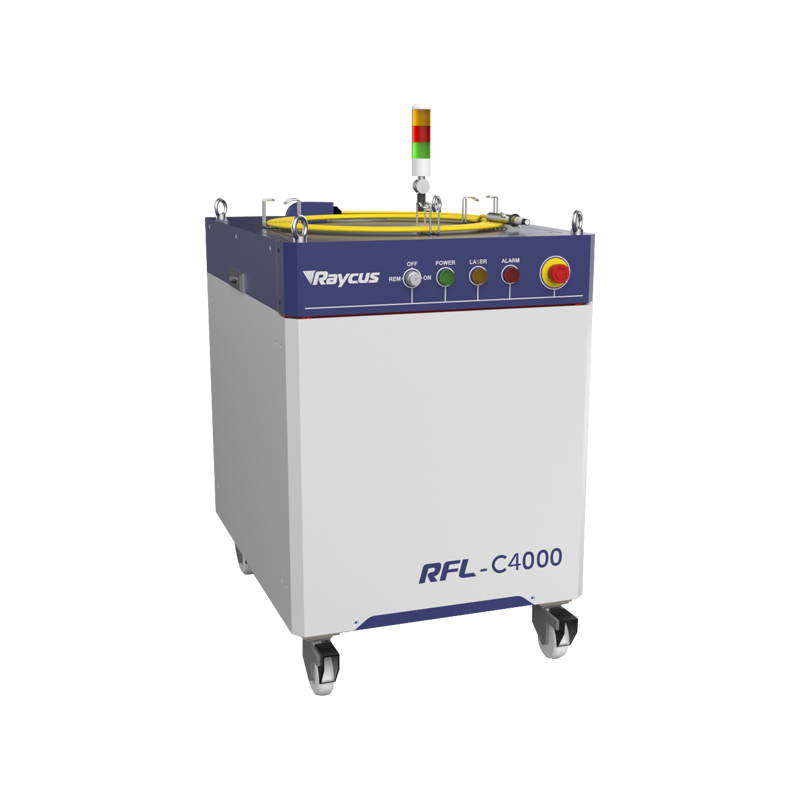

4000W multi-module continuous fiber laser
| Product Description | |||||
|
The multi-module continuous fiber lasers developed by Raycus Laser cover products between 4000W and 30000W. They have high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, high reliability, long life, and maintenance-free operation, etc. Advantages: It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.
|
| Product Parameters |

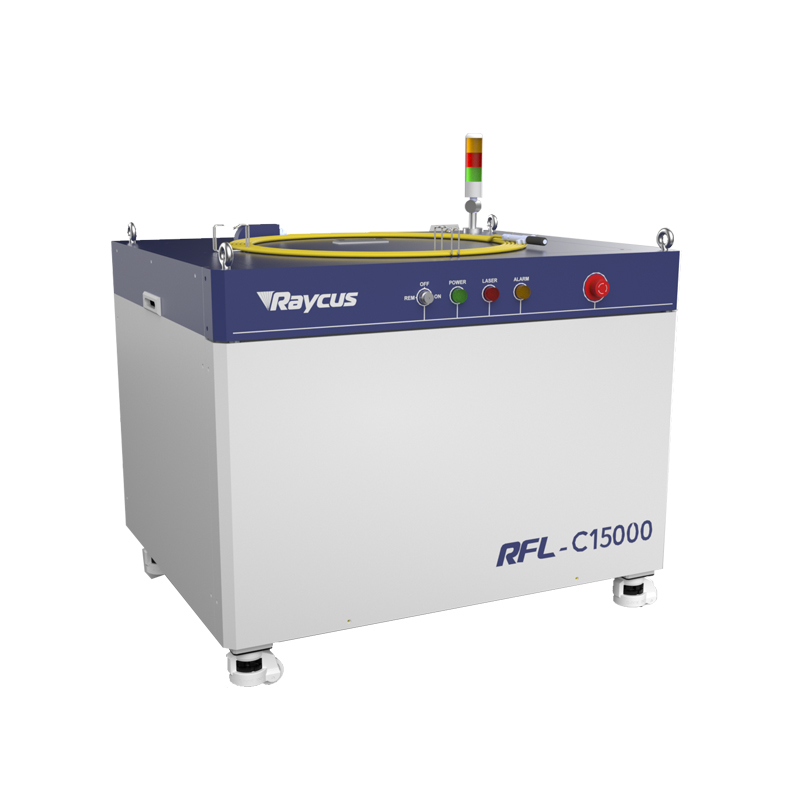

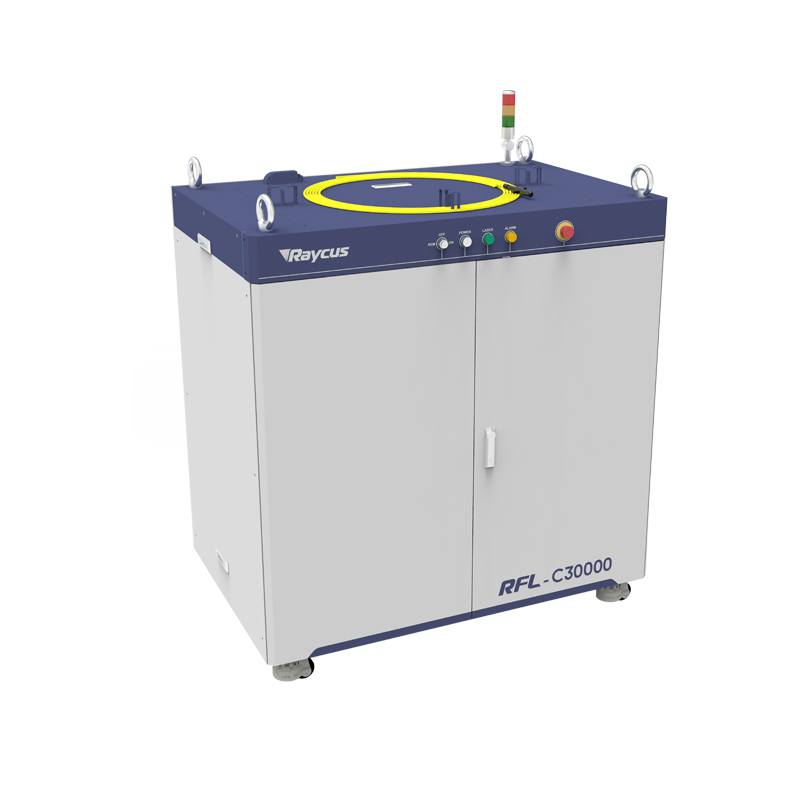

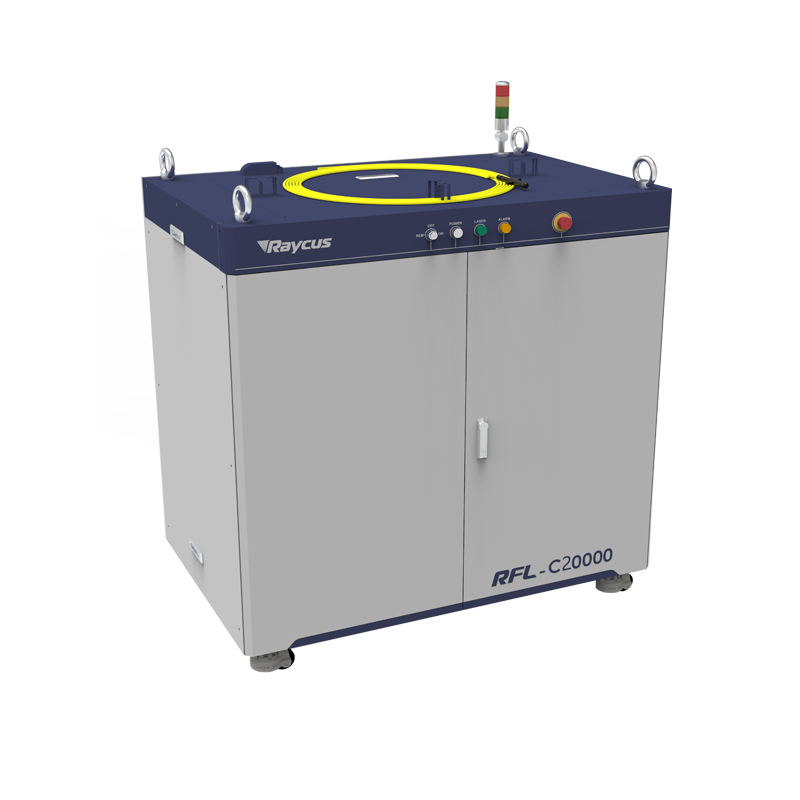

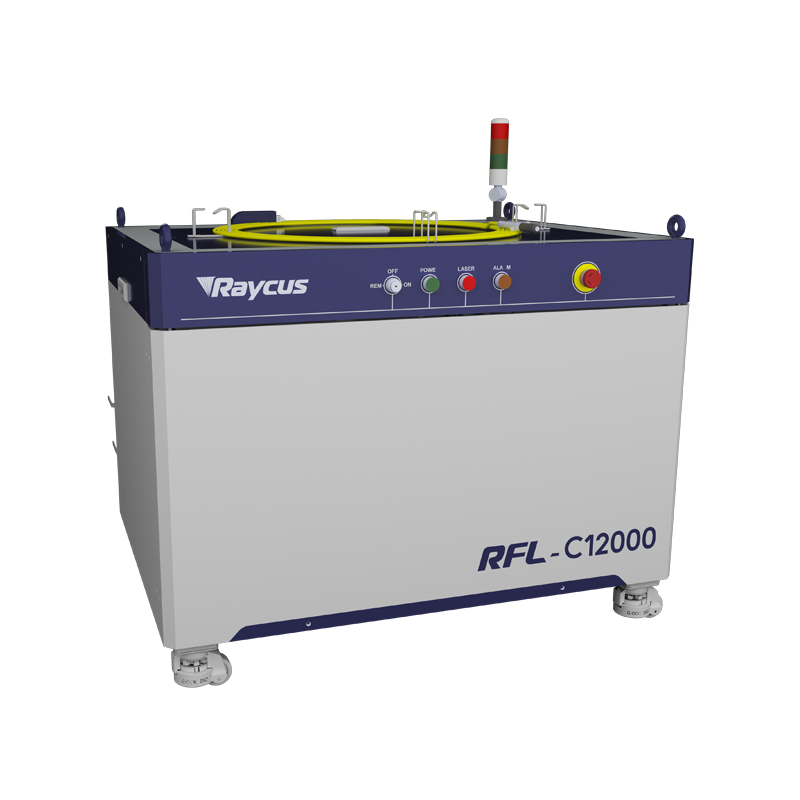

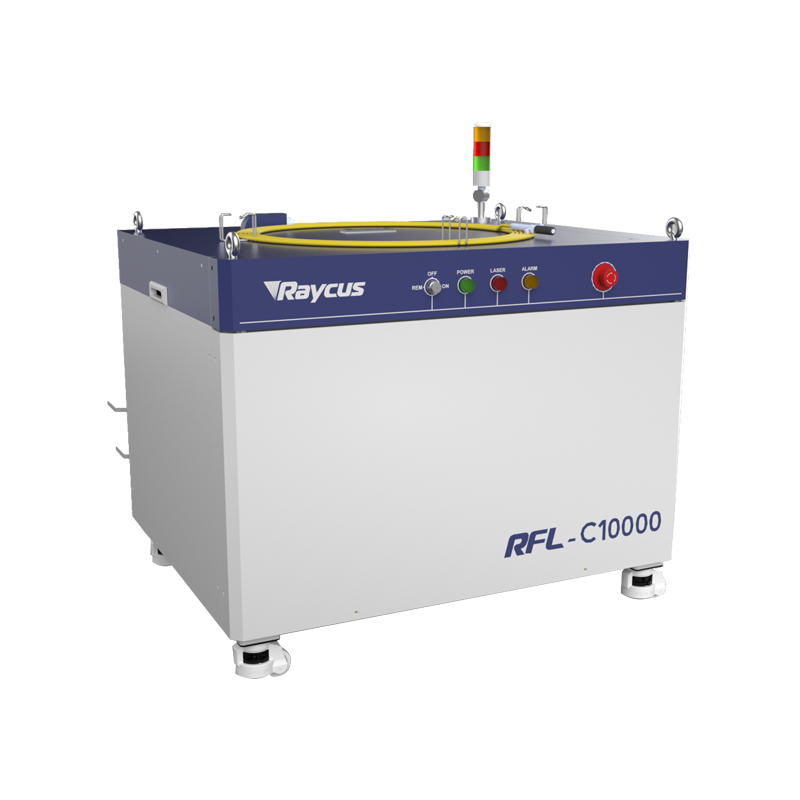

| Model | RFL-C10000X | RFL-C12000X | RFL-C15000 | RFL-C20000 | RFL-C30000 |
| Optical properties | |||||
| Rated output power | 10000 | 12000 | 15000 | 20000 | 30000 |
| central wavelength | 1080士5 | ||||
| operating mode | Continuous/Modulated | ||||
| Maximum modulation frequency (kHz) | 2 | 5 | |||
| Power stability(%) | 士1.5 | ||||
| Output characteristics | |||||
| Output connector | QD | QP | |||
| Output fiber core diameter (um) | 100(can be customized) | 150 | |||
| BPP(mm.mrad) | ≤4 | 7 | |||
| polarization state | random | ||||
| Output fiber length (m) | ≤30 | ≤20 | |||
| Other characteristics | |||||
| Dimensions (mm) width*height*depth | 1200x960x1160 |
15000XZ:960x1220x1600 |
20000XZ:1200x1220x1600 20000TZ:960x1160x1500 |
1320x1160x1600 | |
| cooling method | water cooling | ||||
| ambient temperature | 10~40(°C) | ||||
| Characteristic |
| High electro-optical conversion efficiency Output fiber length can be customized Output optical cable: QD/QP |
 |
 |
Maintenance-free operation Wide modulation frequency range Small size, easy to install |
| Application |
|

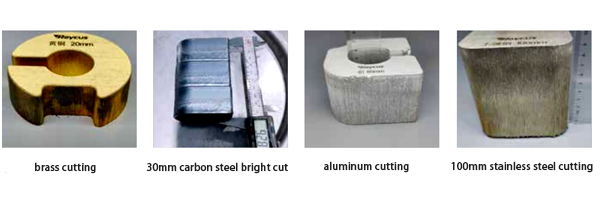

Welding, cladding, cutting, 3D printing, sintering, surface treatment
|
