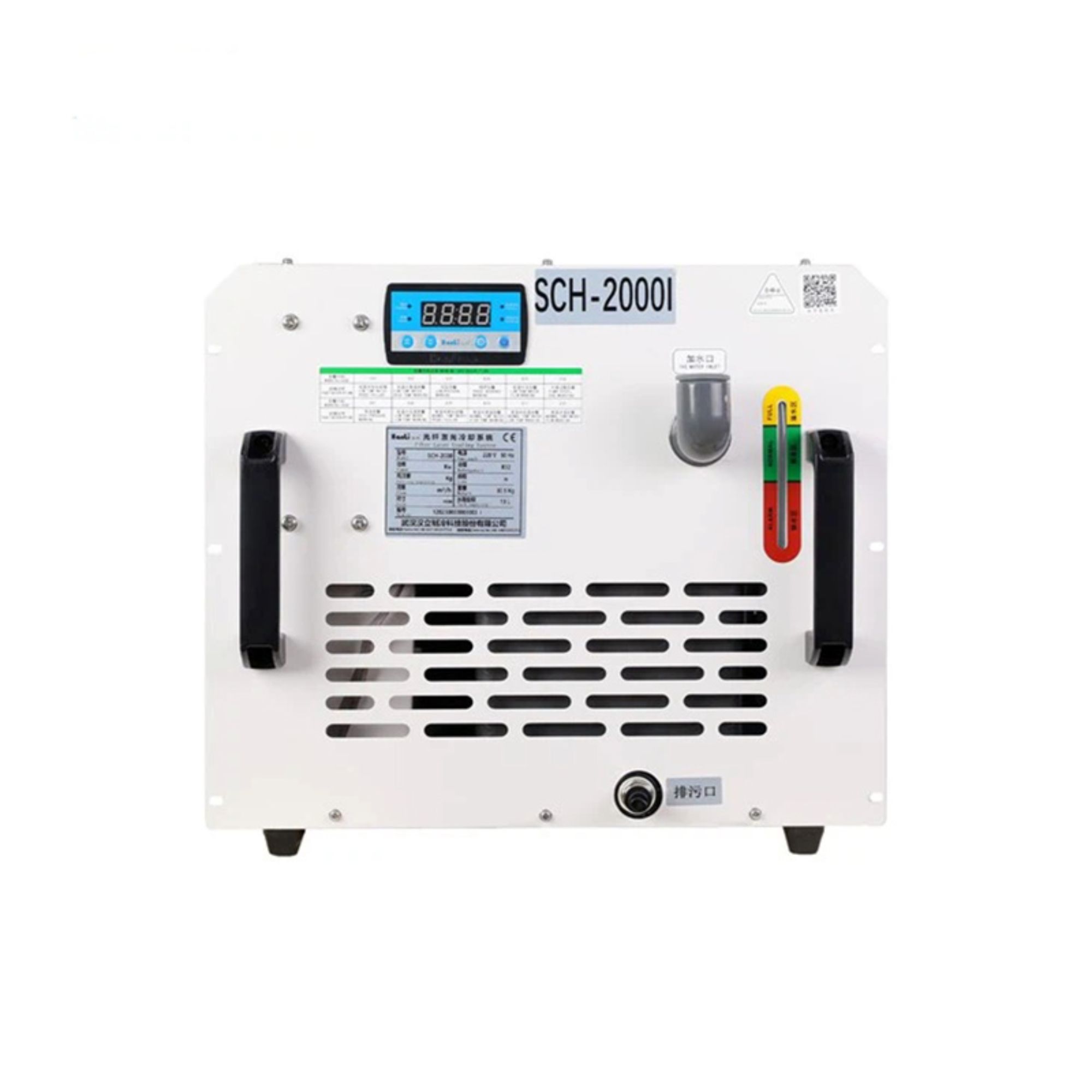

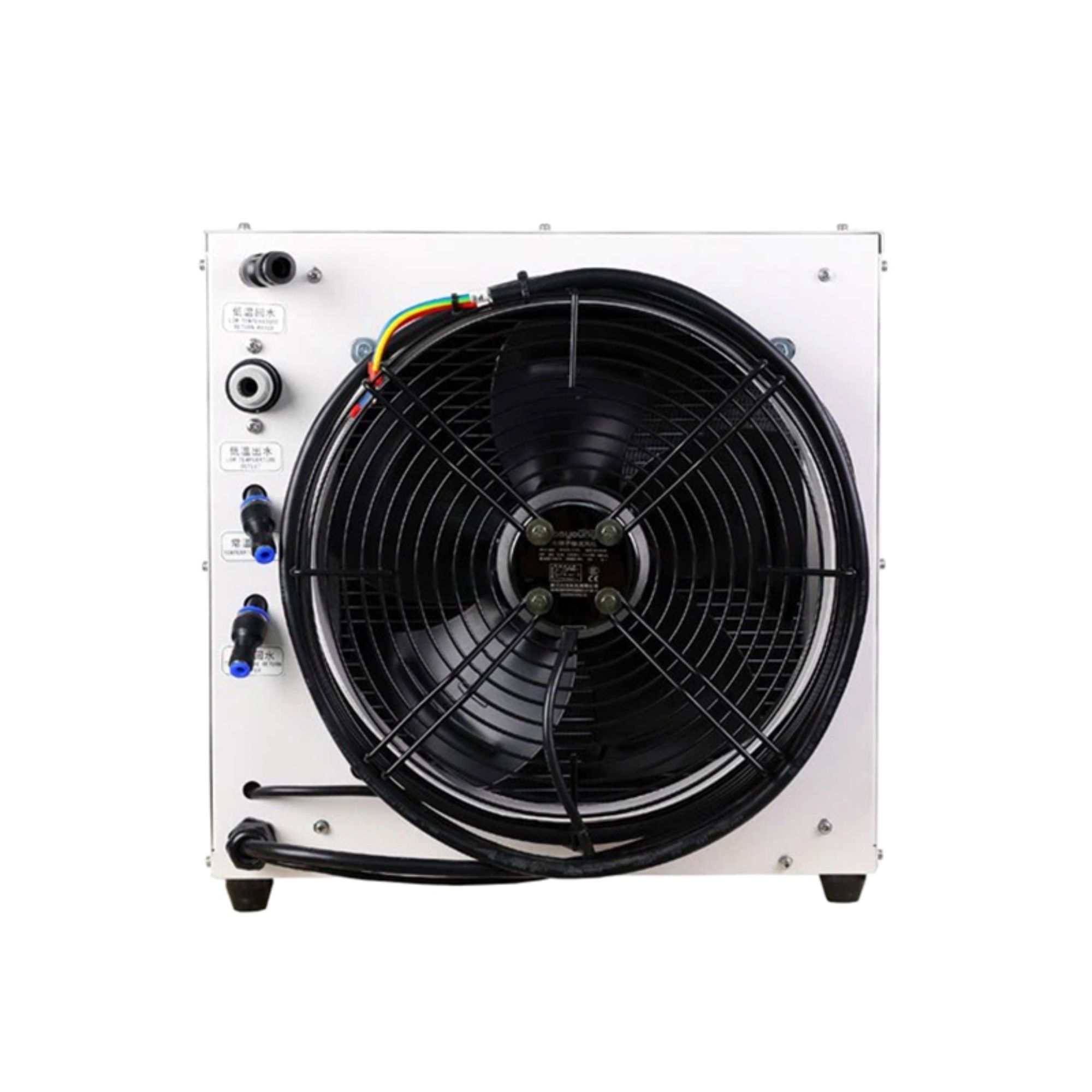

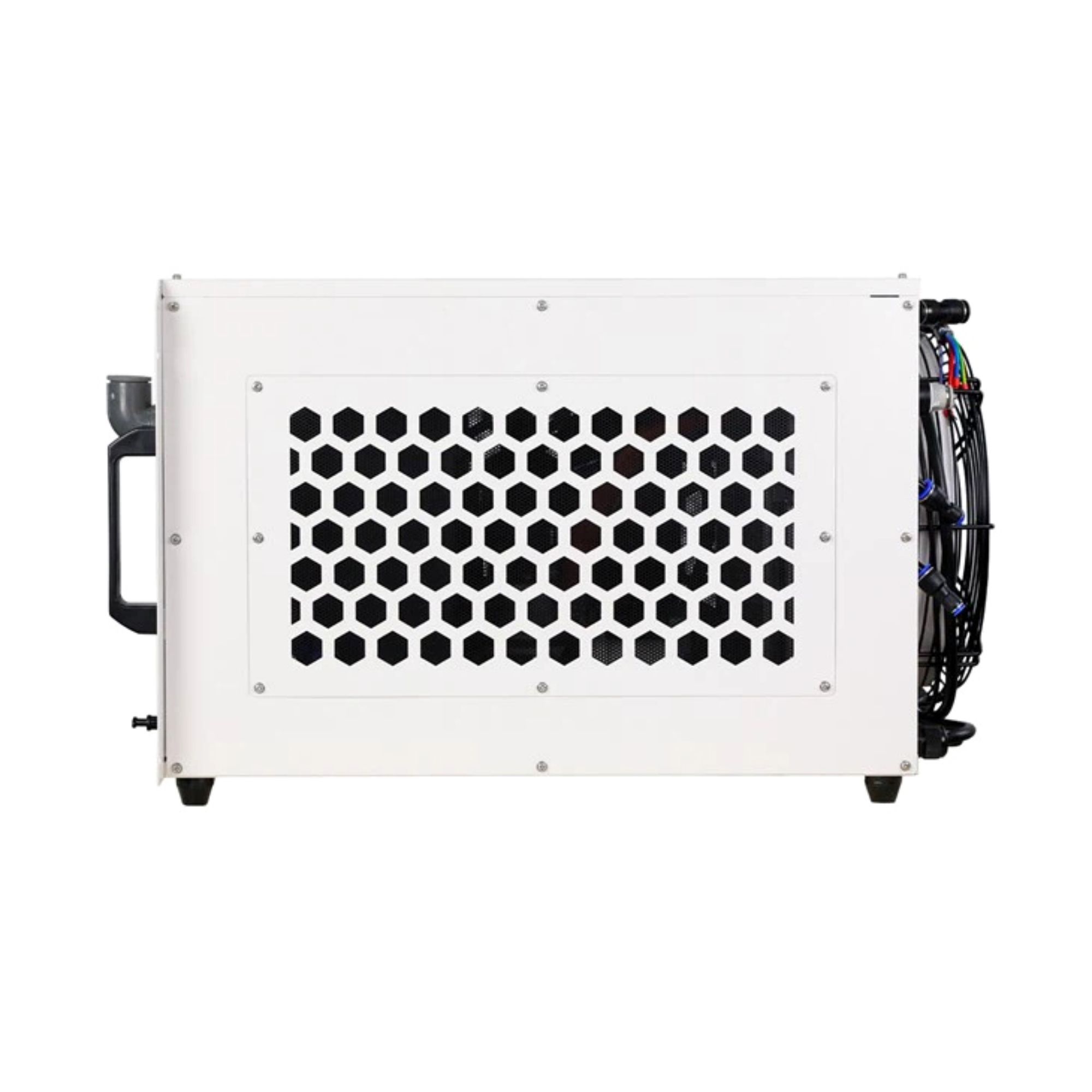

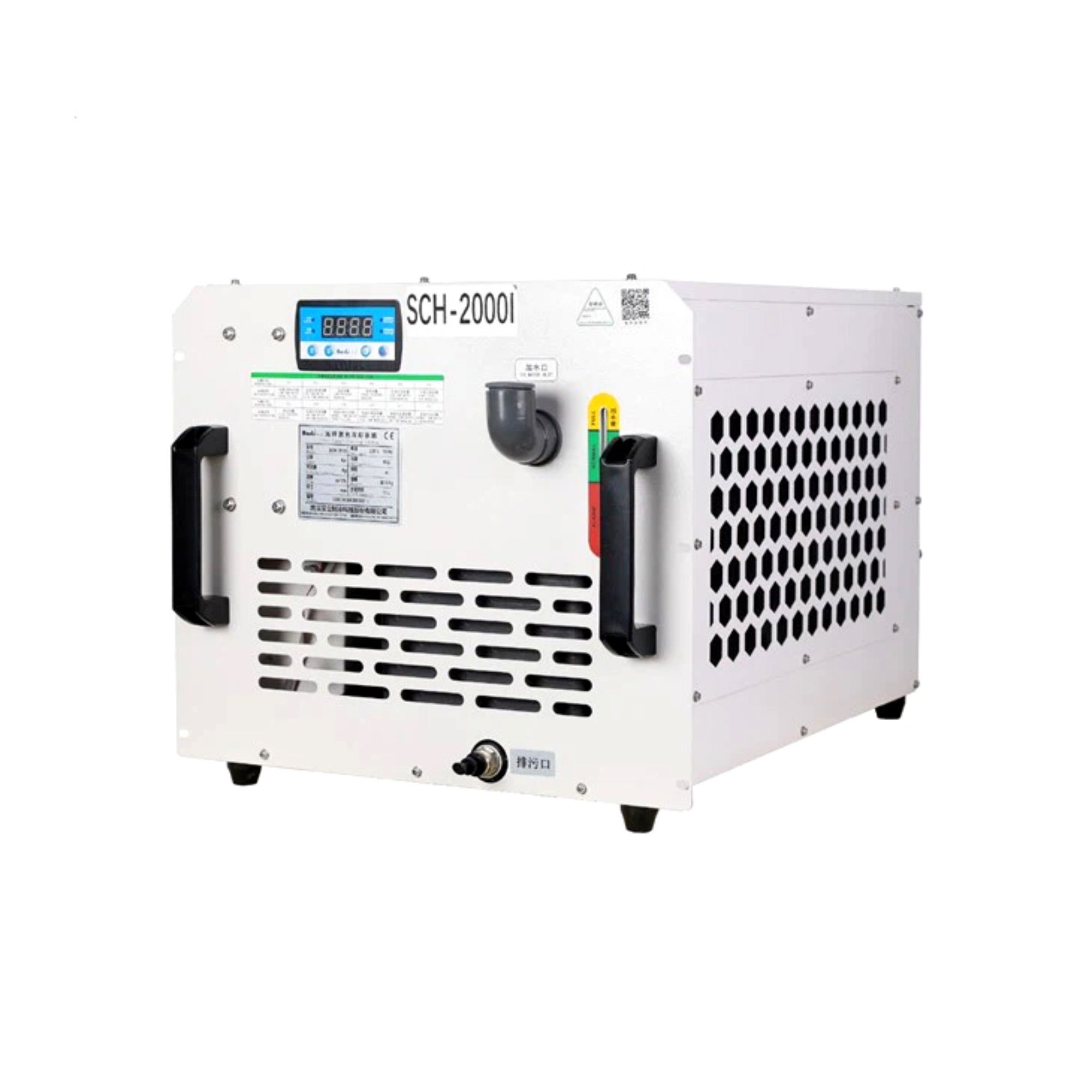

2000W Hanli Laser Chiller Water Chiller
2000W Hanli Laser Chiller Water Chiller
2000W Hanli Laser Chiller Water Chiller
2000W Hanli Laser Chiller Water Chiller
2000W Hanli Laser Chiller Water Chiller
2000W Hanli Laser Chiller Water Chiller
2000W Hanli Laser Chiller Water Chiller
2000W Hanli Laser Chiller Water Chiller

2000W Hanli Laser Chiller Water Chiller

Product Introduction
The dual cooling circuit and active cooling technology ensure temperature stability with an accuracy of ±1°C. This makes it suitable for use in environments with temperatures ranging from 0°C to 45°C. The refrigerant used is R32, which is environmentally friendly. The user-friendly controller interface comes with integrated alarm functions to warn of any deviations from the desired temperature. Additionally, the back-mounted fill port and visual water level make it easy to use. It is optimized for high performance at low temperatures and is ready for immediate use. Overall, it offers high efficiency and environmental protection
product specifications
Model SCH-1500 SCH-2000
Voltage & Frequency AC 1P 220 V
Working power 50Hz 60Hz 50Hz 60Hz
Working current 9.5 A 10.9 A 11.4 A 10.9 A
Machine power 2.1 kW 2.4 kW 2.5 kW 2.4 kW
Application environment 0℃<Environment temperature<45℃ , Relative humidity<95%
Tempe.control accuracy ±1 ℃
Coolant R32
Cooling capacity 4.5 kW 5.6 kW
Electric heating power 400W (room temperature) 400W (room temperature)
Rated flow of water pump 1.2 m³./h 1.2m³./h
Max.pump lift 30 m 40 m 40 m
Pump power 0.26 kW 0.32 kW 0.32 kW
Tank volume 13L
Matching Laser tube Φ12 pneumatic PU tube
QBH head nozzle interface Φ6mm pneumatic quick connector
Dimension 760×485×430 (mm) 760×485×430 (mm)
N.W 32 kg 32 kg 42kg 32 kg
Packing size 800×515×580 (mm) 800×515×580 (mm)
G.W 41 kg 41 kg 51 kg 41 kg
Matching laser source

1500W Continuous fiber lase

(Matching BWT,Max,Raycus ,RECI laser)

2000W Continuous fiber lase

(Matching BWT,Max,Raycus ,RECI laser)
