เครื่องเชื่อมจุดเลเซอร์แบบแม่นยำ ประเทศไทย

รายละเอียดสินค้า

This precision welding machine features our pulse laser, which has several key advantages over traditional lasers:

• ประสิทธิภาพสูง: Optimal energy use.
• การออกแบบที่กะทัดรัด: Easy to integrate.
• ไม่ต้องบำรุงรักษา: Hassle-free operation.
• Flexible Fiber Output: Versatile applications.

Our pulse laser combines optics, mechanics, electronics, and software for enhanced performance. It allows real-time monitoring and data collection through a user-friendly interface.

Designed with an air-cooling system, it offers low energy consumption and is convenient for integration, making it ideal for industrial laser welding and various applications.

สินค้า

• Real-Time Laser Power Feedback Control: Our system allows for real-time feedback and arbitrary waveform control, ensuring high-quality and stable processing for various workpieces.

• 16 Processing Standards: Equipped with 16 different processing specifications and waveform control functions to accommodate a wide range of materials.

• Fast Standard Switching: Capable of instantaneous switching between standards, enabling high-speed and high-quality welding.

• Homogenized Optical System: Designed for processing small weld point diameters.

• เอาต์พุตหลายช่องสัญญาณ: Features the P4 series with up to 4 output branches (optional), allowing for versatile configurations.

• Uniform Power Distribution: Each branch can achieve uniform output power, simplifying operation and maintenance.

• Simplified Wiring and Operation: Easier and more straightforward than previous models, enhancing user experience.

• User-Friendly LCD Interface: Input specifications directly on the LCD screen for simple and accurate operation.

• Rich I/O Terminals: Equipped with numerous input/output terminals (signals) for easy integration with various automation equipment.

• Energy Monitoring Function: Enables monitoring of laser output energy (J) and average energy (W), with upper and lower limit determination for quality management.

• High-Precision QBH Fiber: Available with a maximum cable length of 10 meters to meet diverse needs.

• External Communication Capability: (Optional) Allows centralized management of laser device specifications and monitoring data, compact design improves workshop environment.

• Optional 10.1-Inch HD Screen: Combines welding process monitoring with laser system functionality.

• Air-Cooled System: This product is designed as an air-cooled series, eliminating the need for external cooling water, and features an intelligent air-cooling system for energy efficiency.

ข้อดีของผลิตภัณฑ์

Ergonomic Design with Flexible Accessibility Featuring comfortable manual ports and barrier-free access, this design offers a spacious working area with a flat processing surface and a removable bottom plate for enhanced versatility.
	Integrated water-air-cooling • Generously sized for full load operation at max. 35°C • Very large DI filter for optimal conductance • µC controlled cooling water flow
Compact and Ergonomic Workstation Designed for efficiency and comfort, this workstation features an ergonomic microscope and arm position, a flat top surface for convenient placement of workpieces and tools, a spacious working chamber, and a compact footprint that ensures a comfortable seating position.
	Easy Mobility with Durable Wheels Robust wheels provide smooth, stable movement, making it easy to reposition the workstation with ease and flexibility.
MicroWeld: • Allows finest high precision welds • Weld spot diameters smaller than 50 microns • Enhanced range of applications	สวีทสปอต • Consistent welding quality from the first pulse • ความชัดลึกขนาดใหญ่ • Reliable welding process • Patented laser resonator design • No first-pulse effect • คุณภาพลำแสงที่ยอดเยี่ยม

พารามิเตอร์ทางเทคนิค

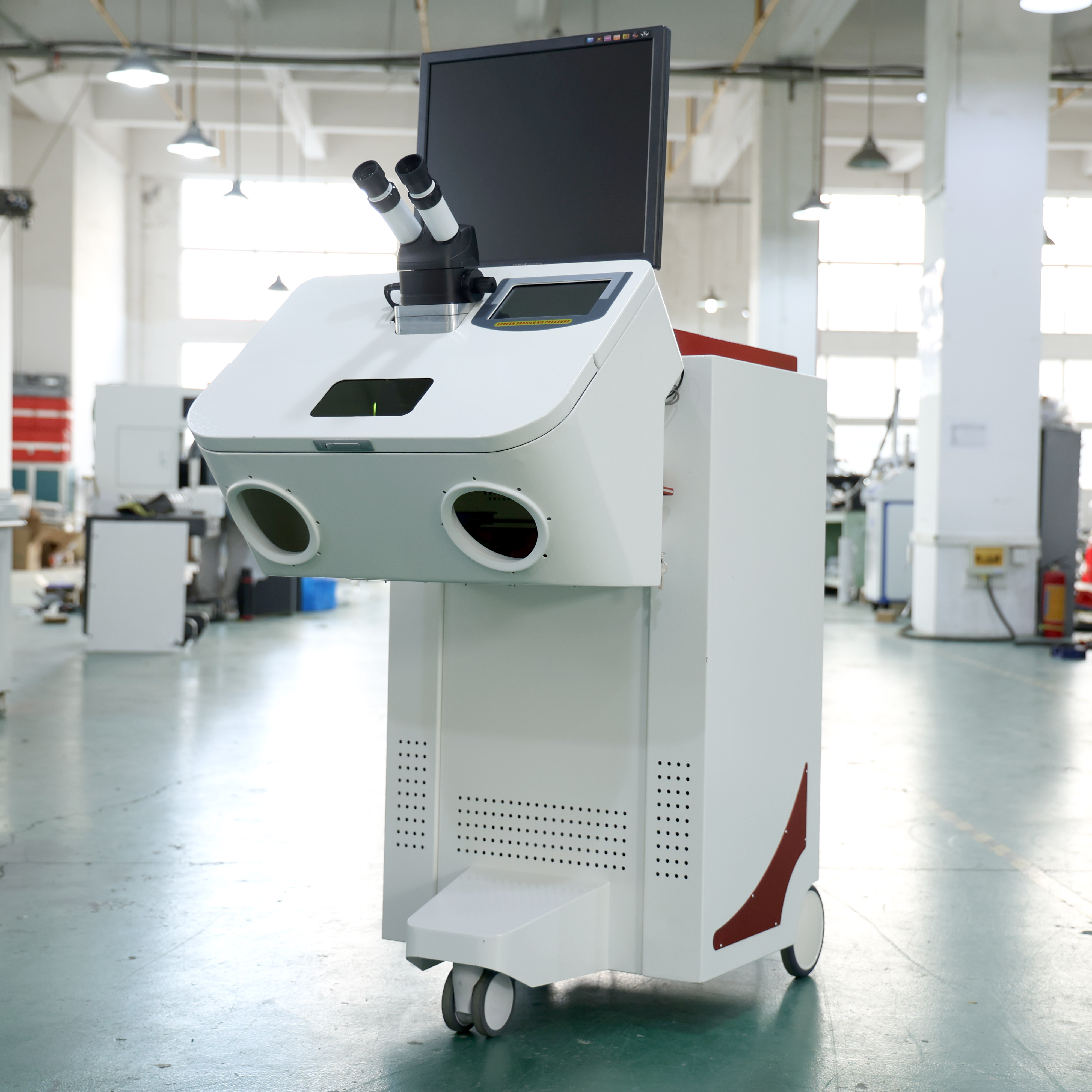

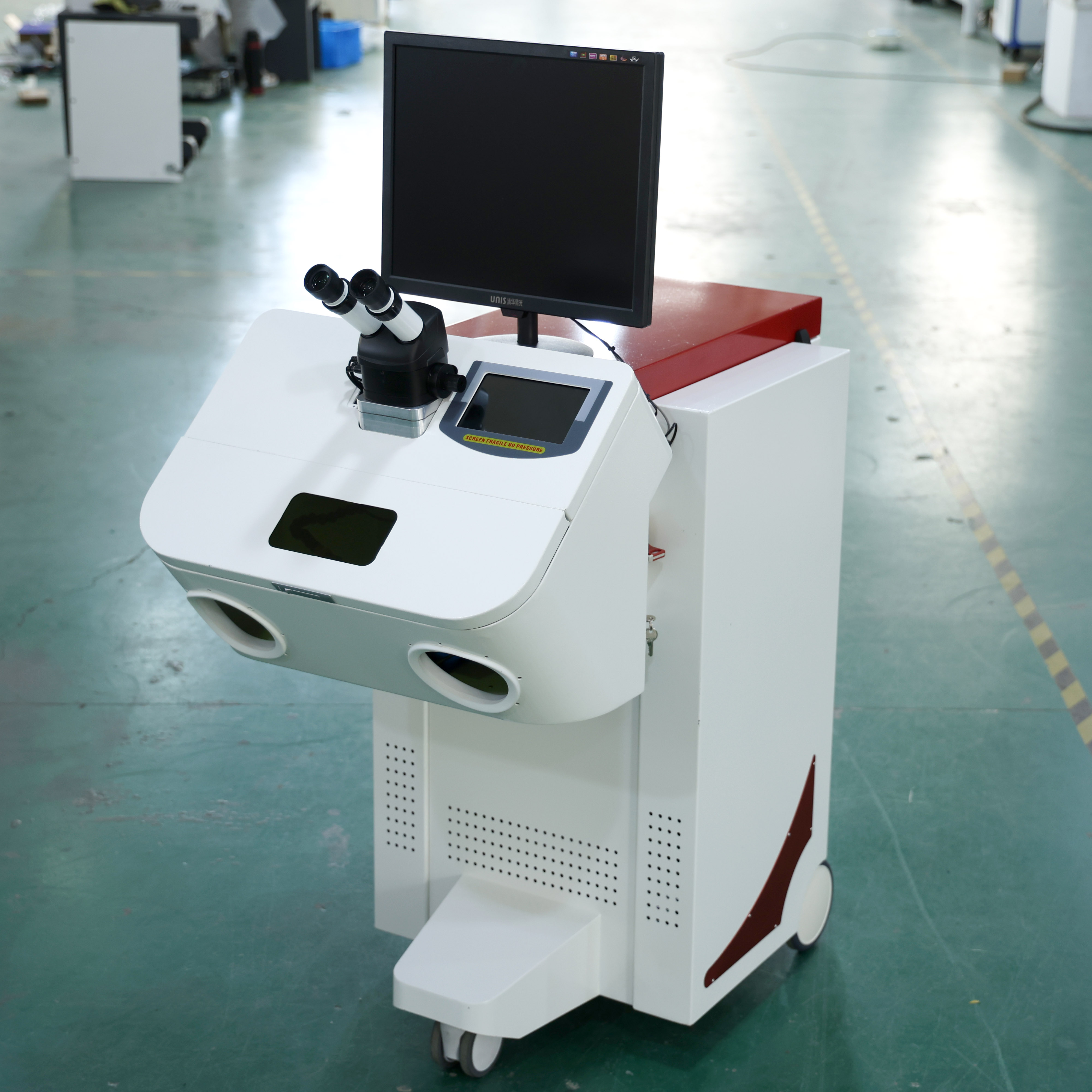

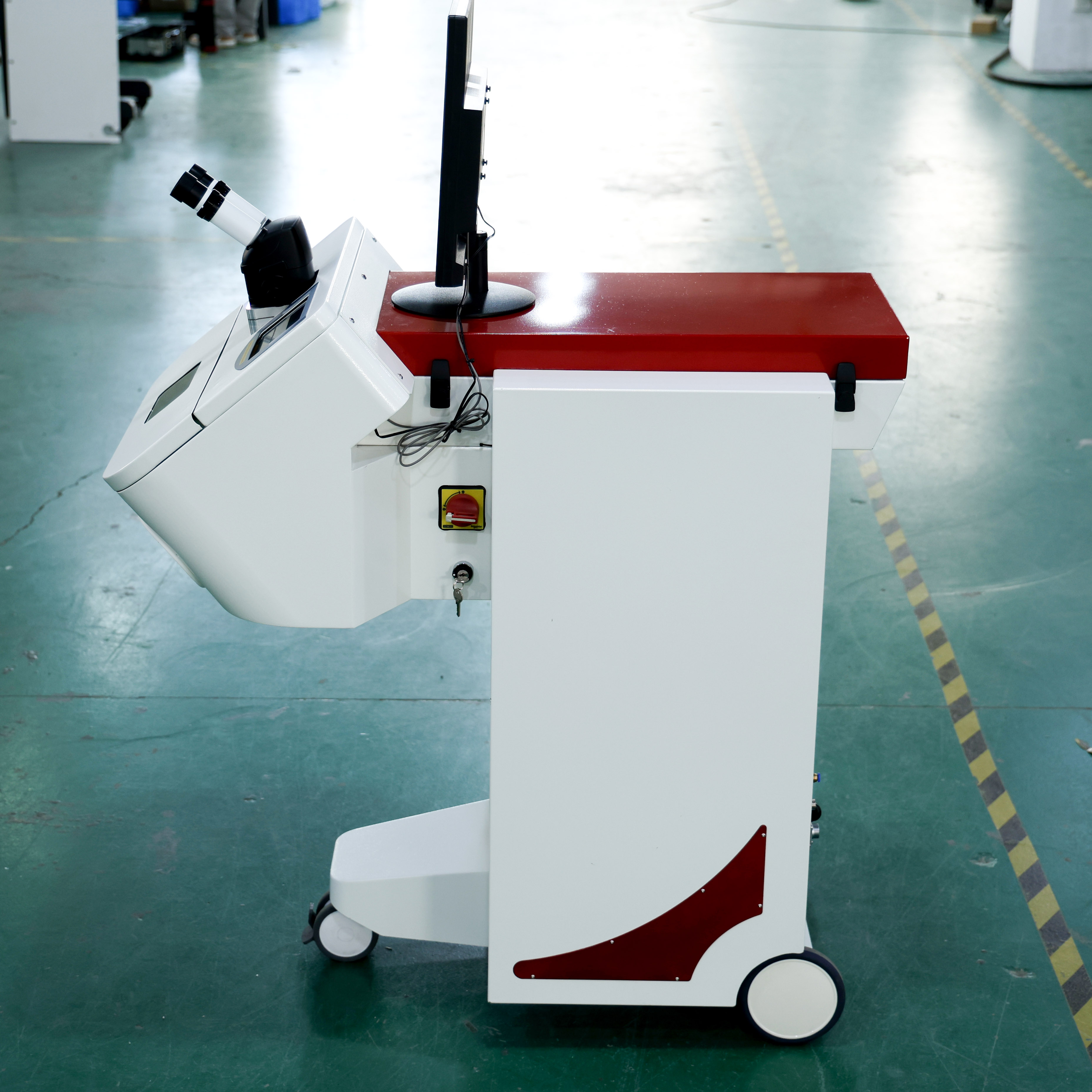

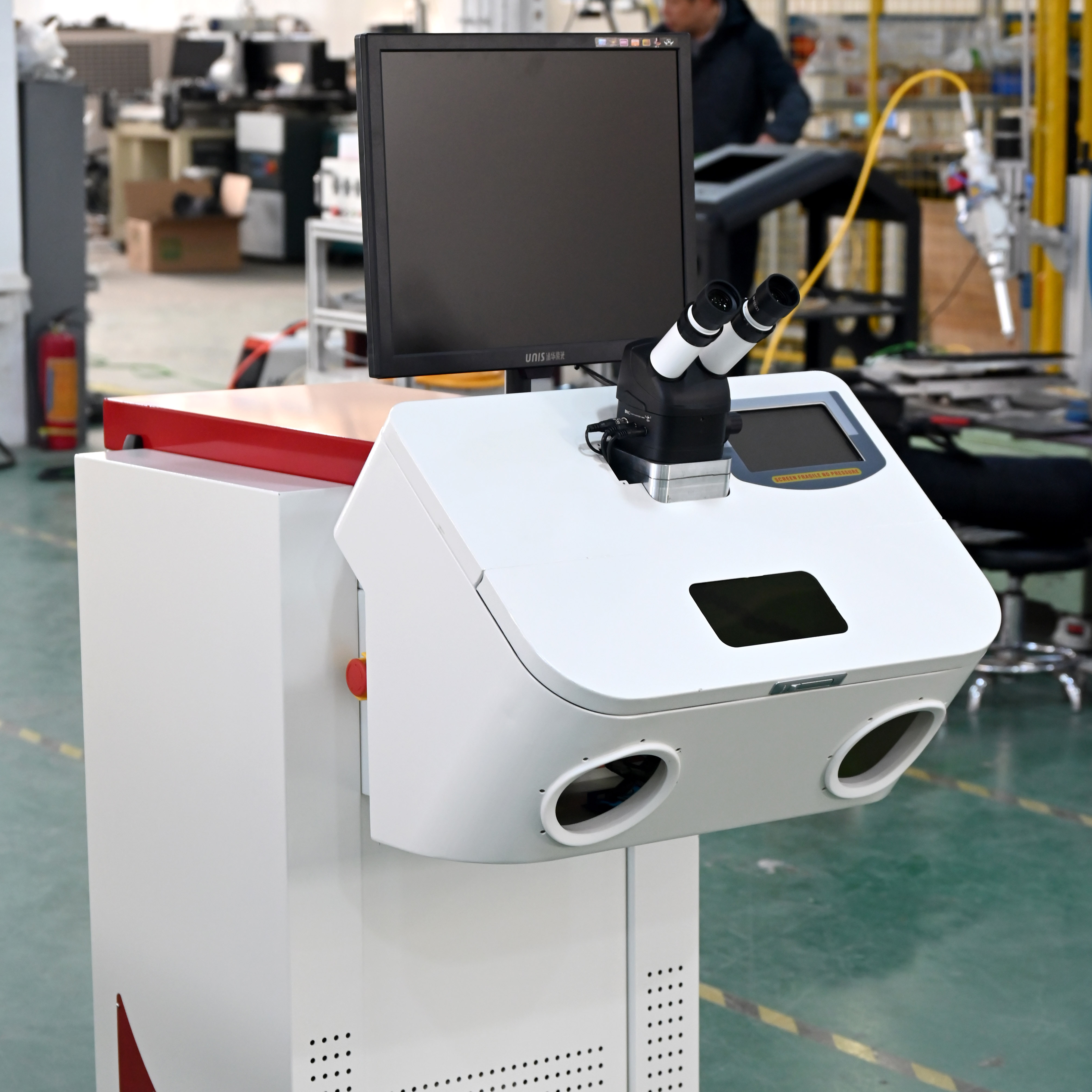

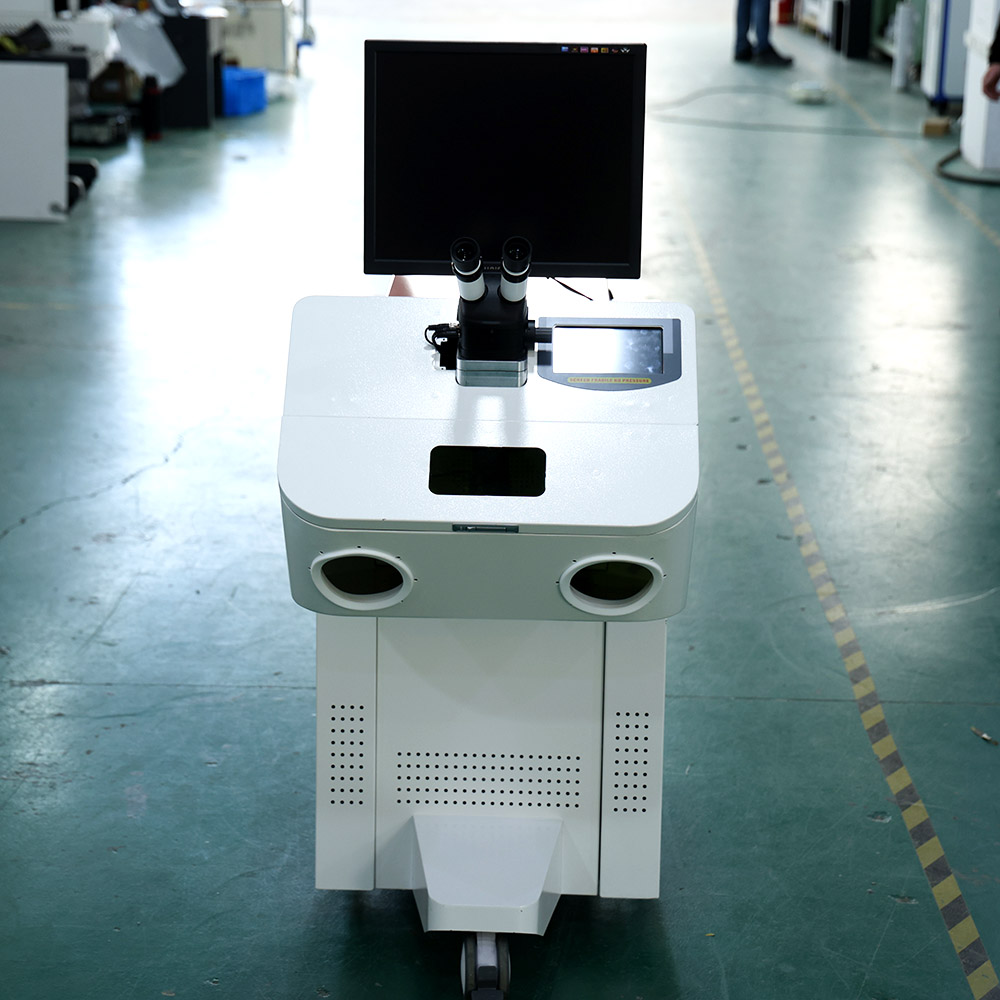

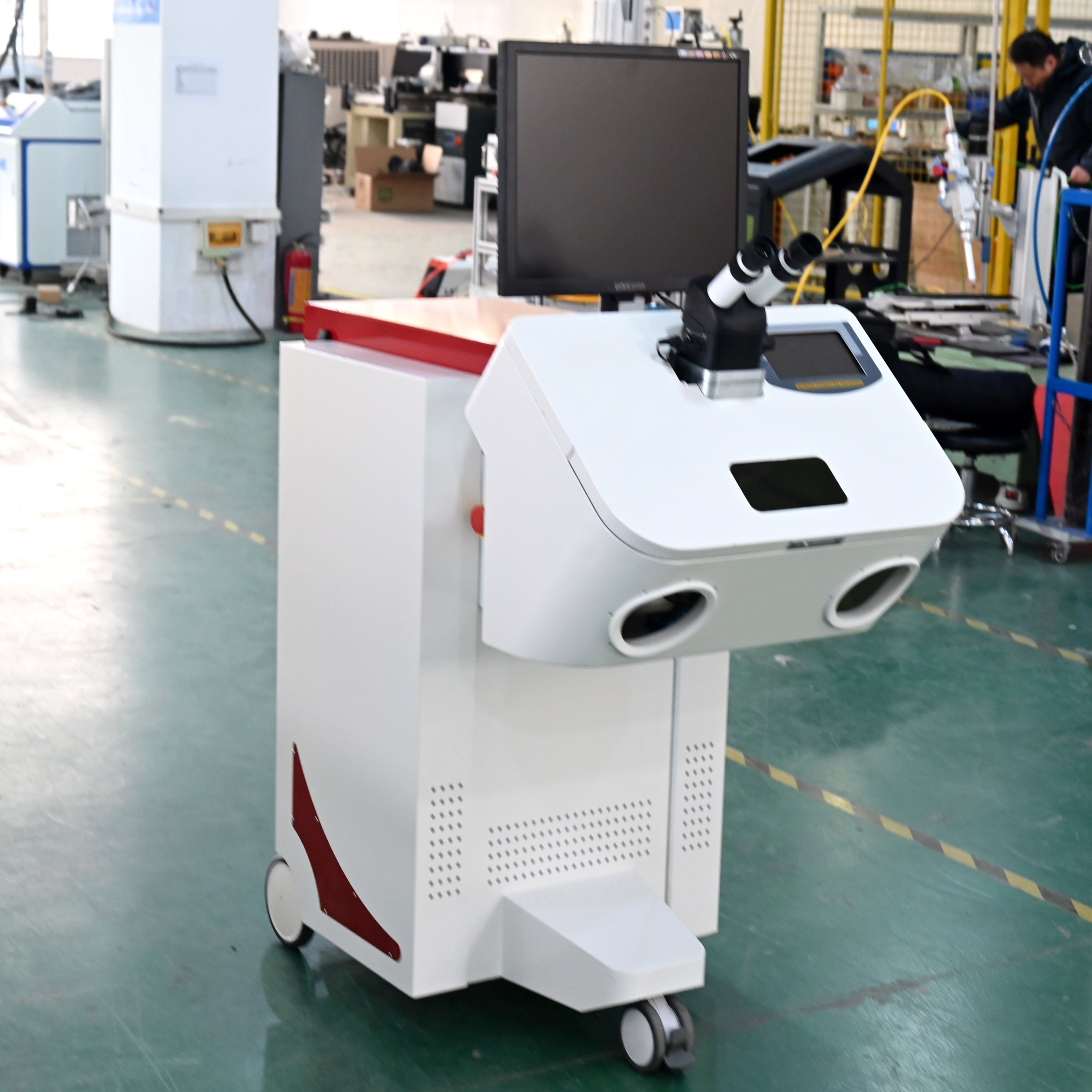

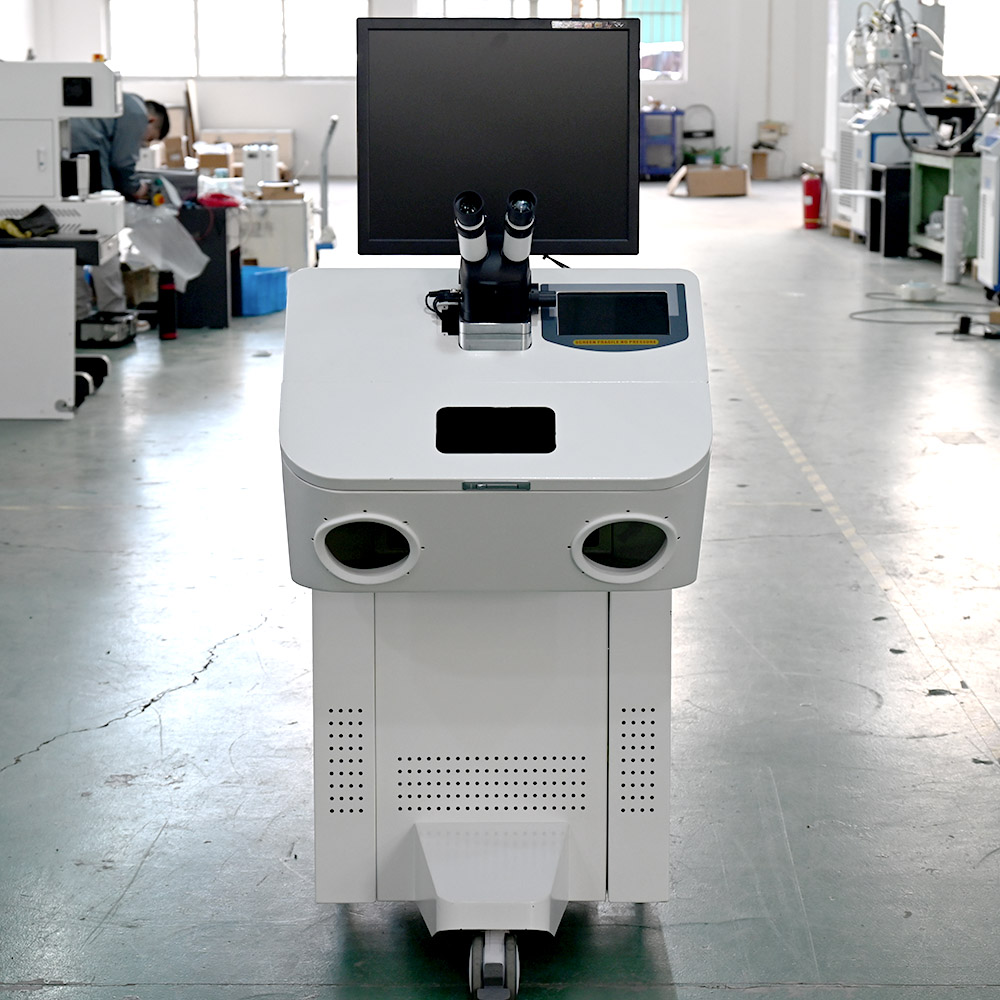

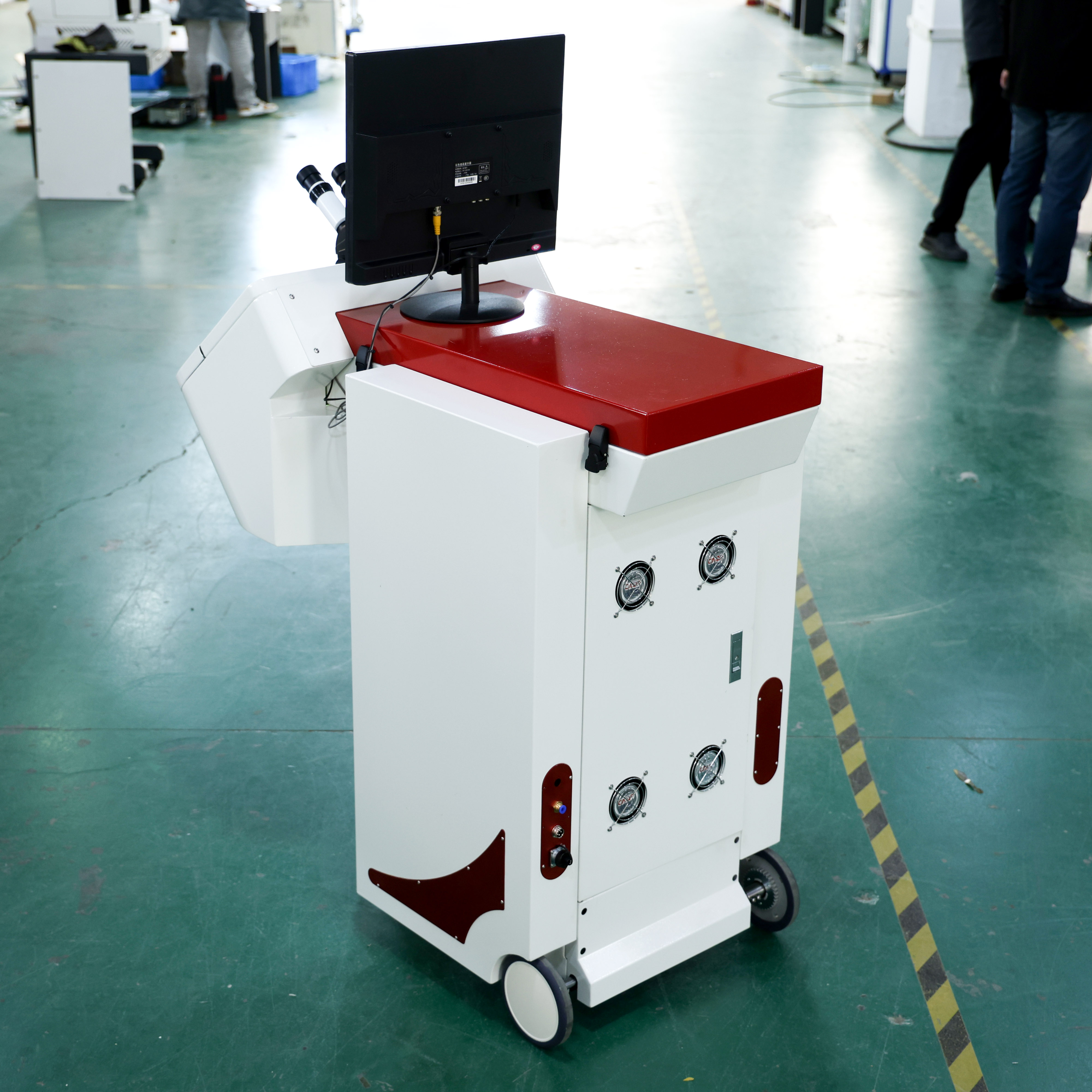

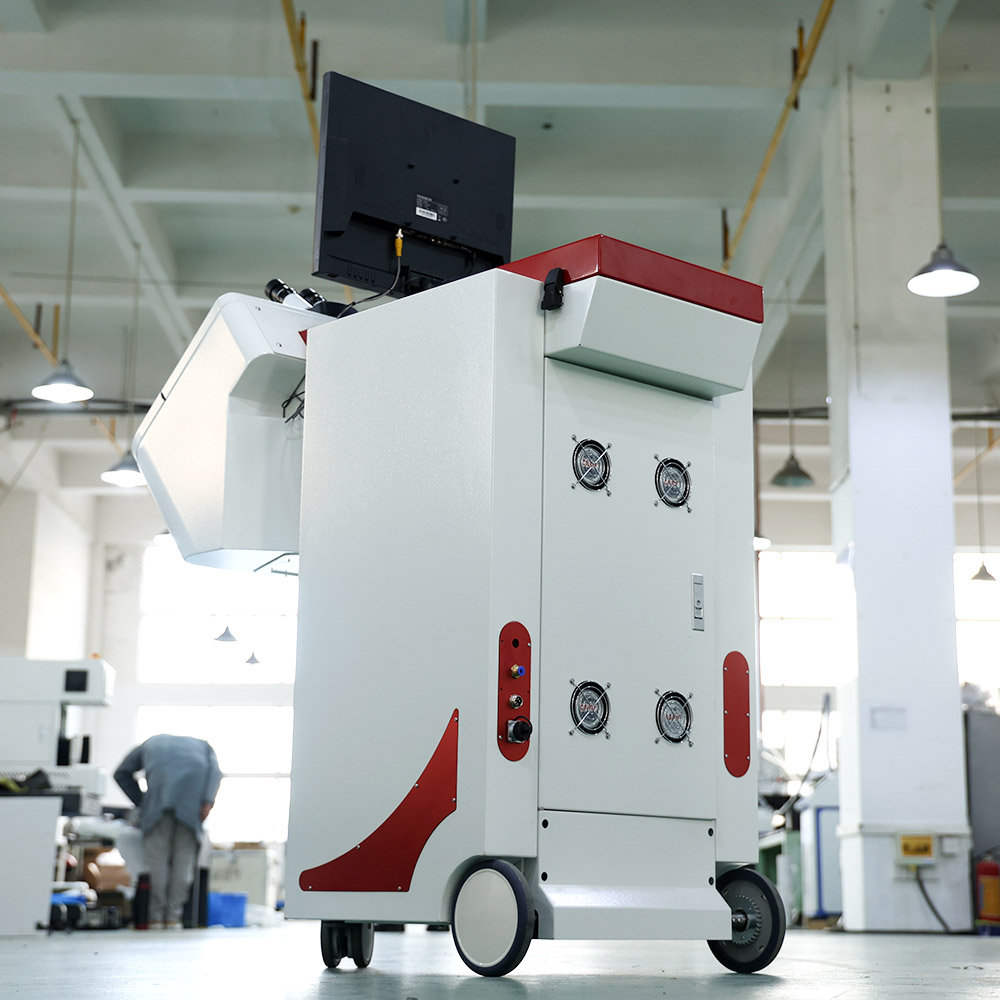

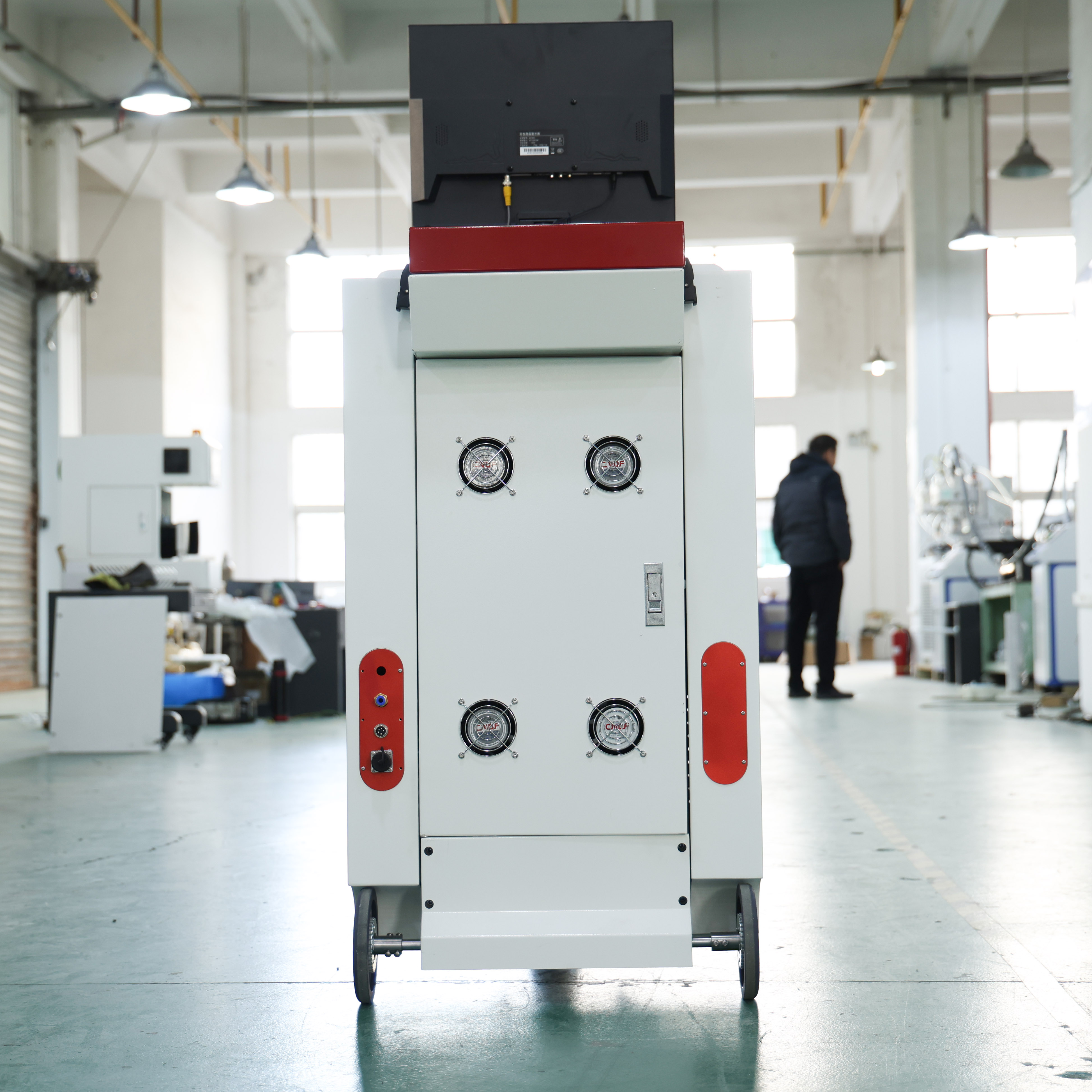

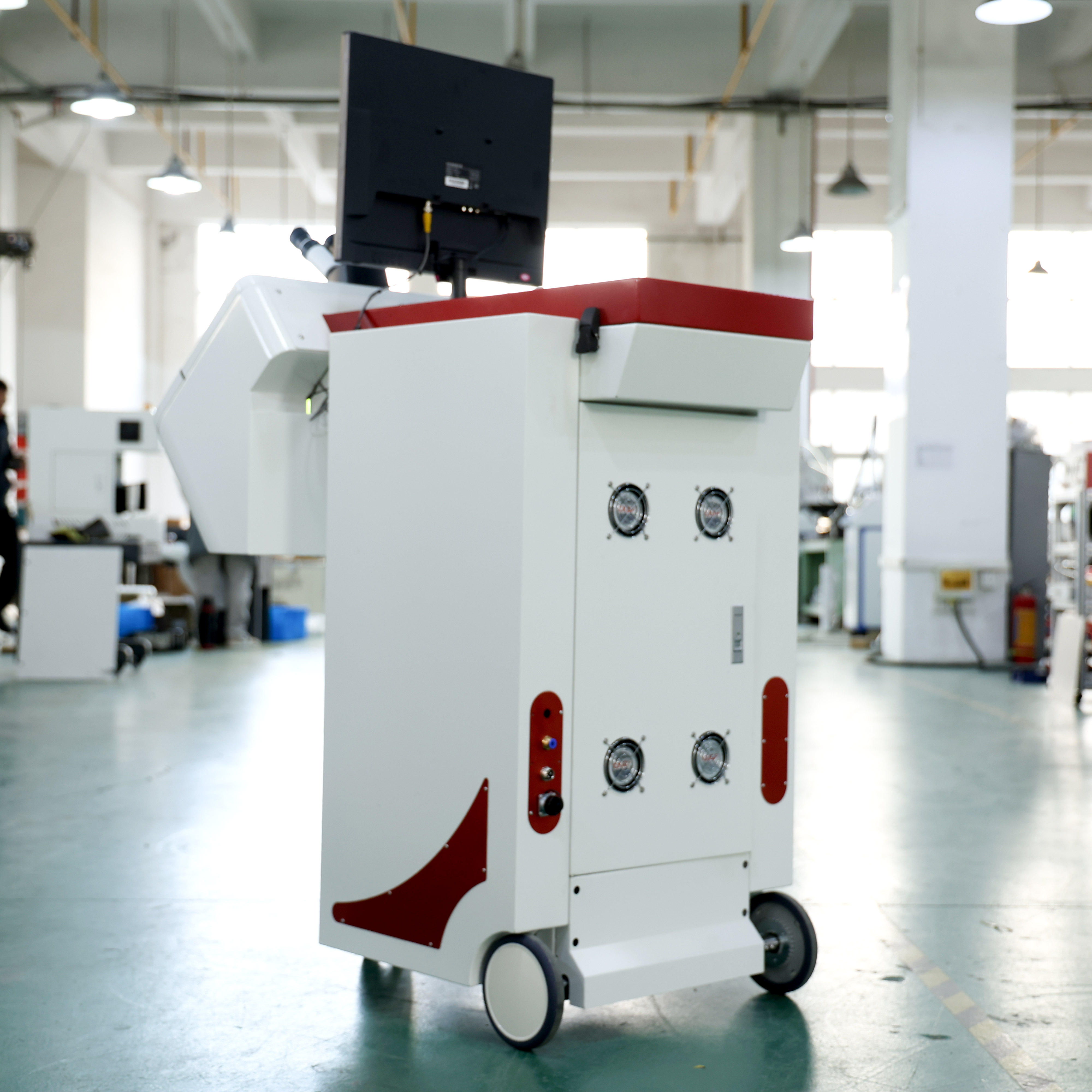

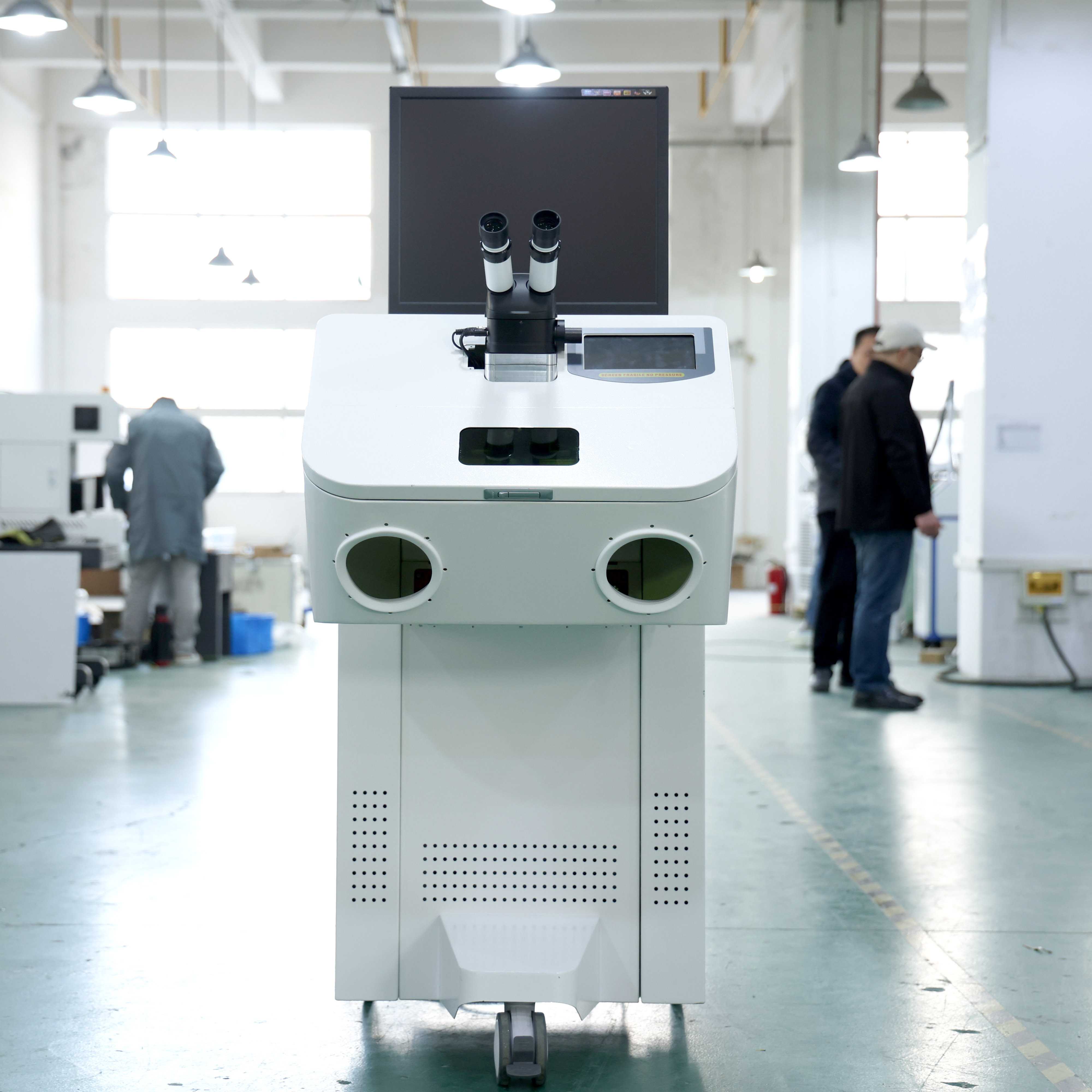

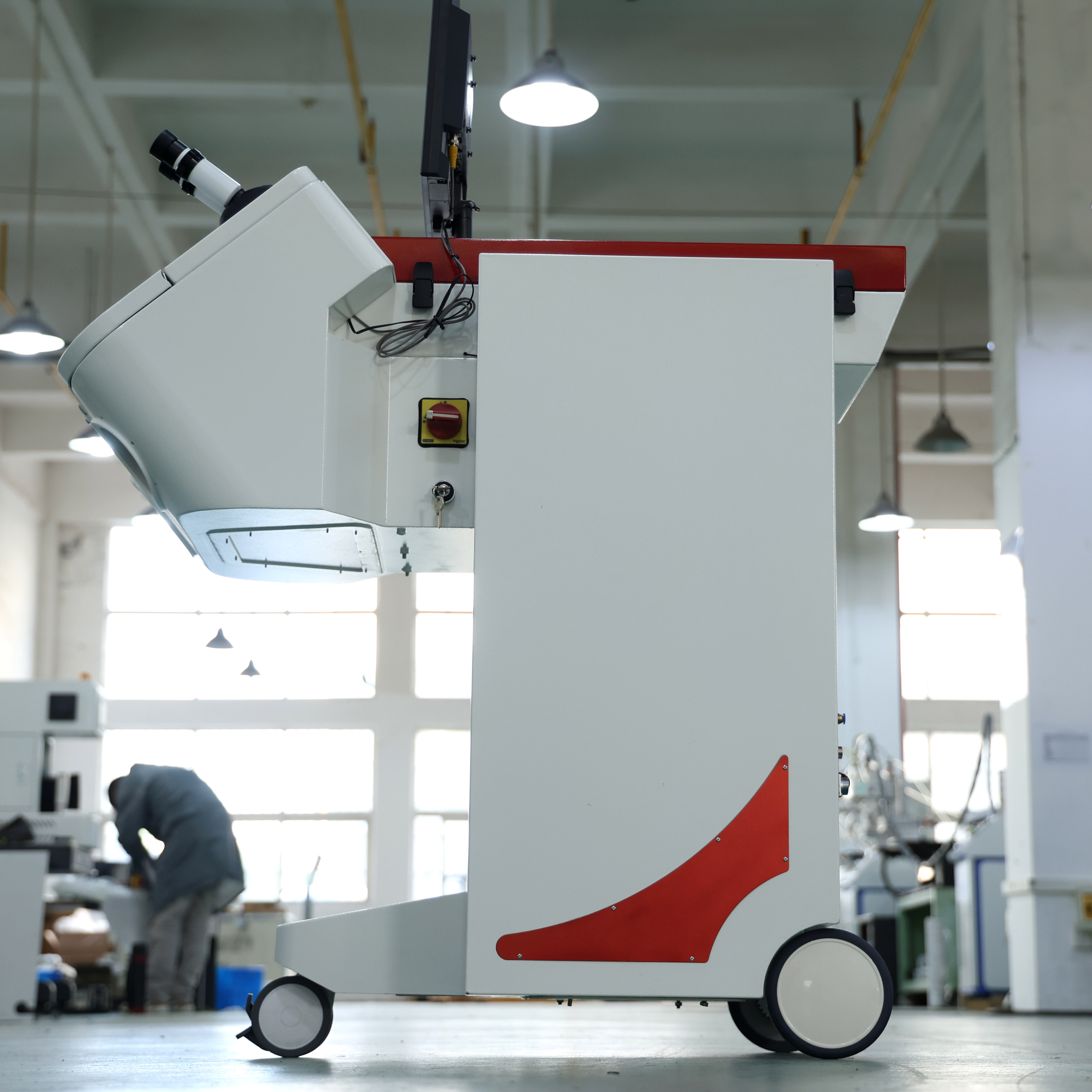

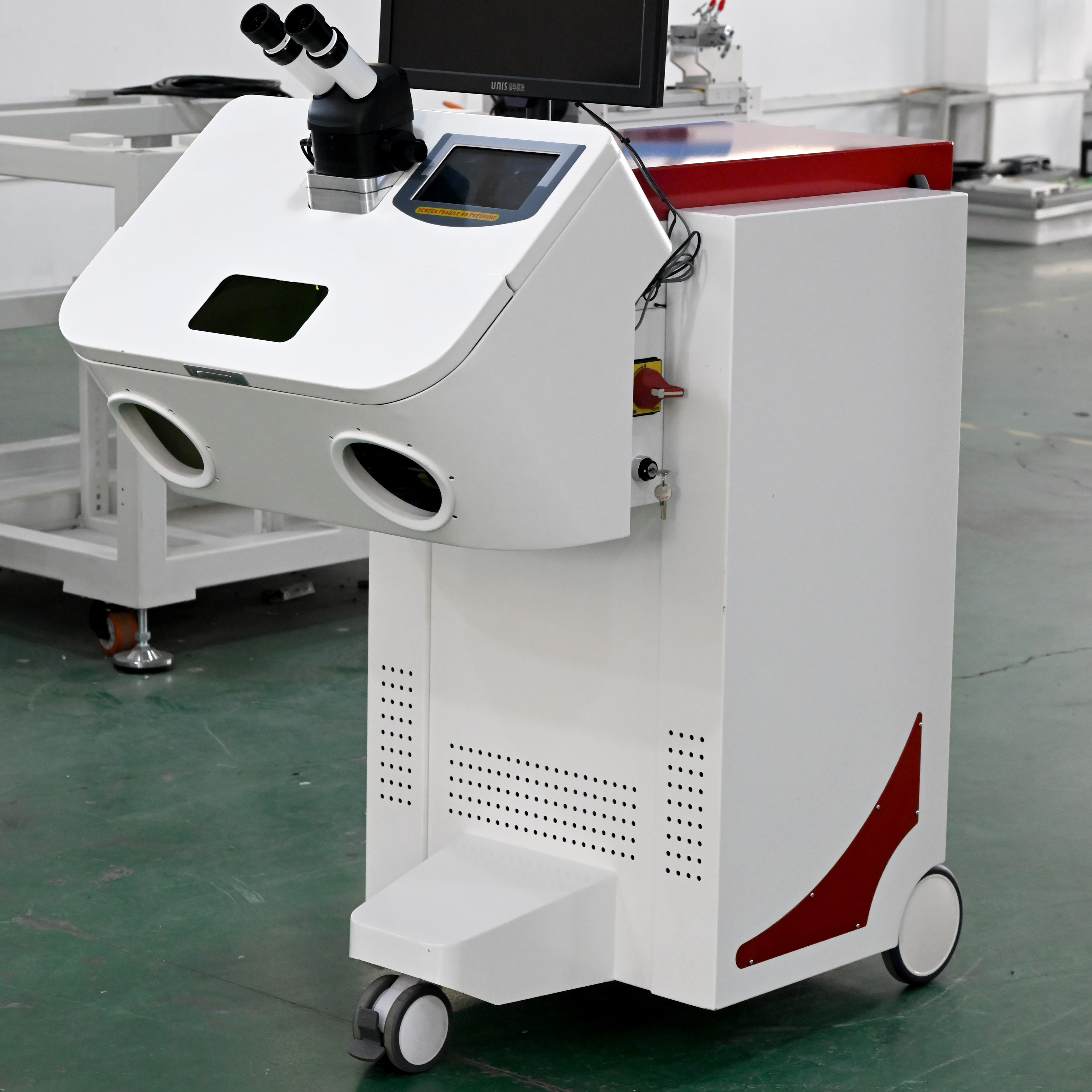

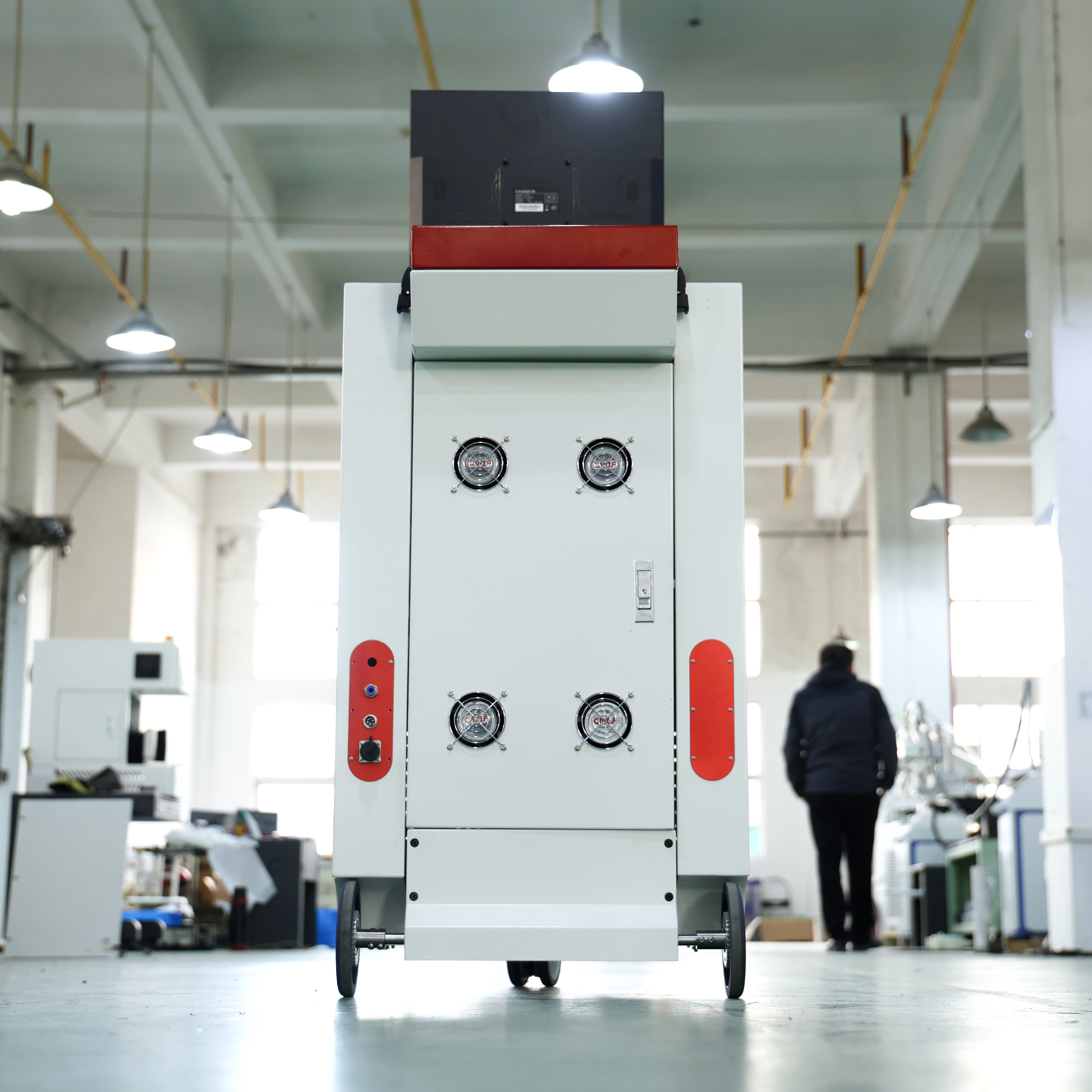

More Real Pictures
