Descrizione del prodotto

Presentazione prodotto

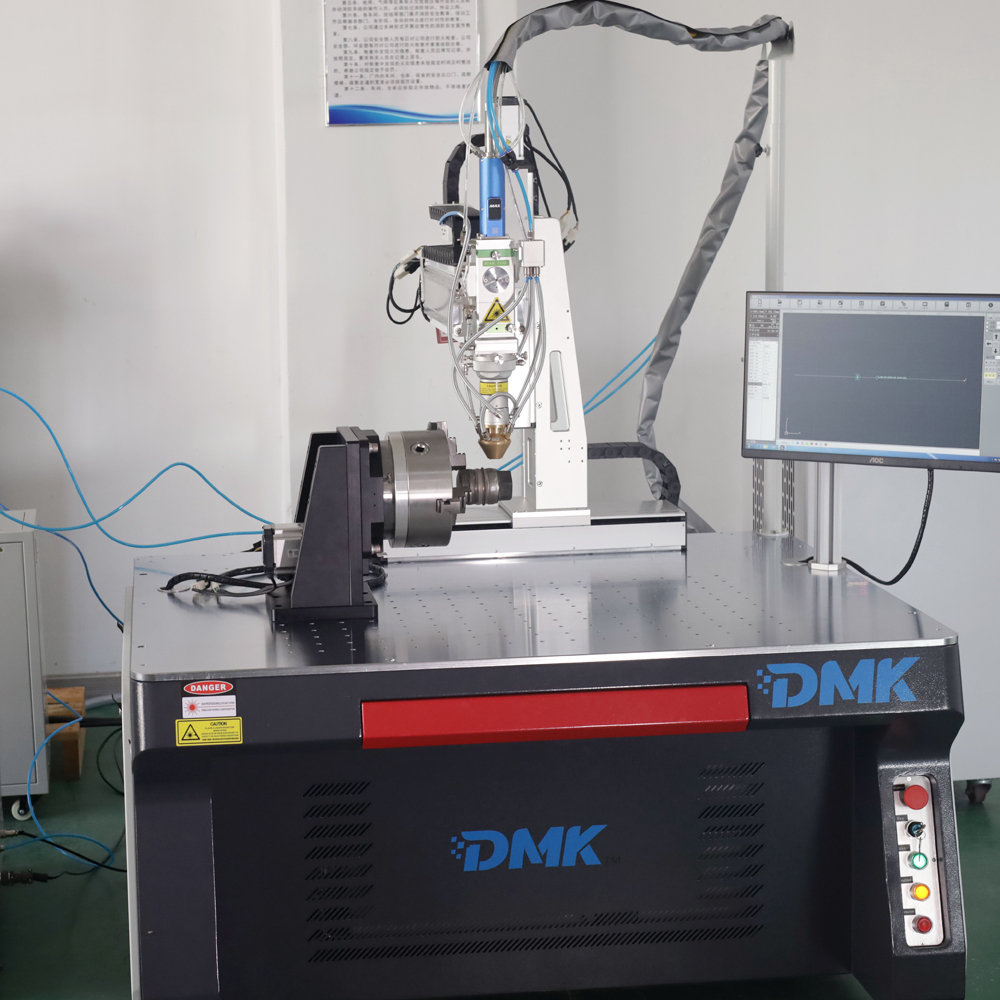

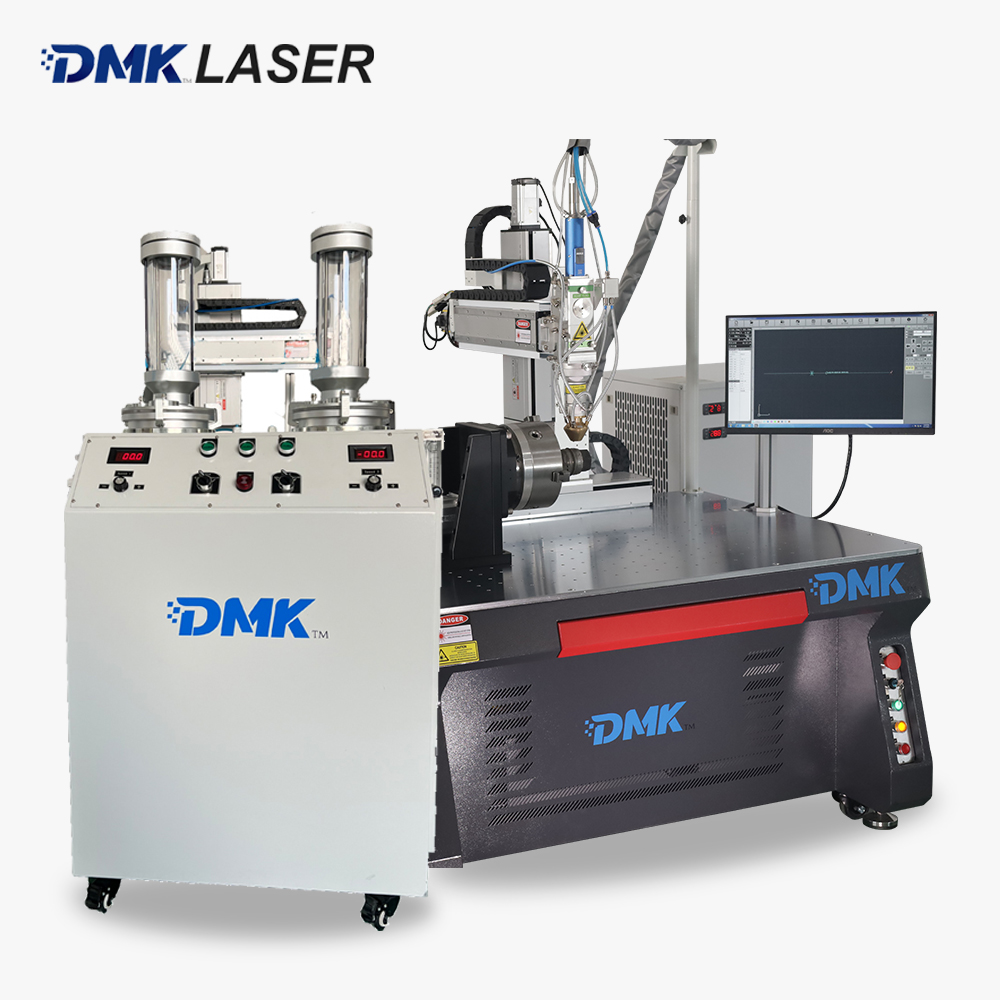

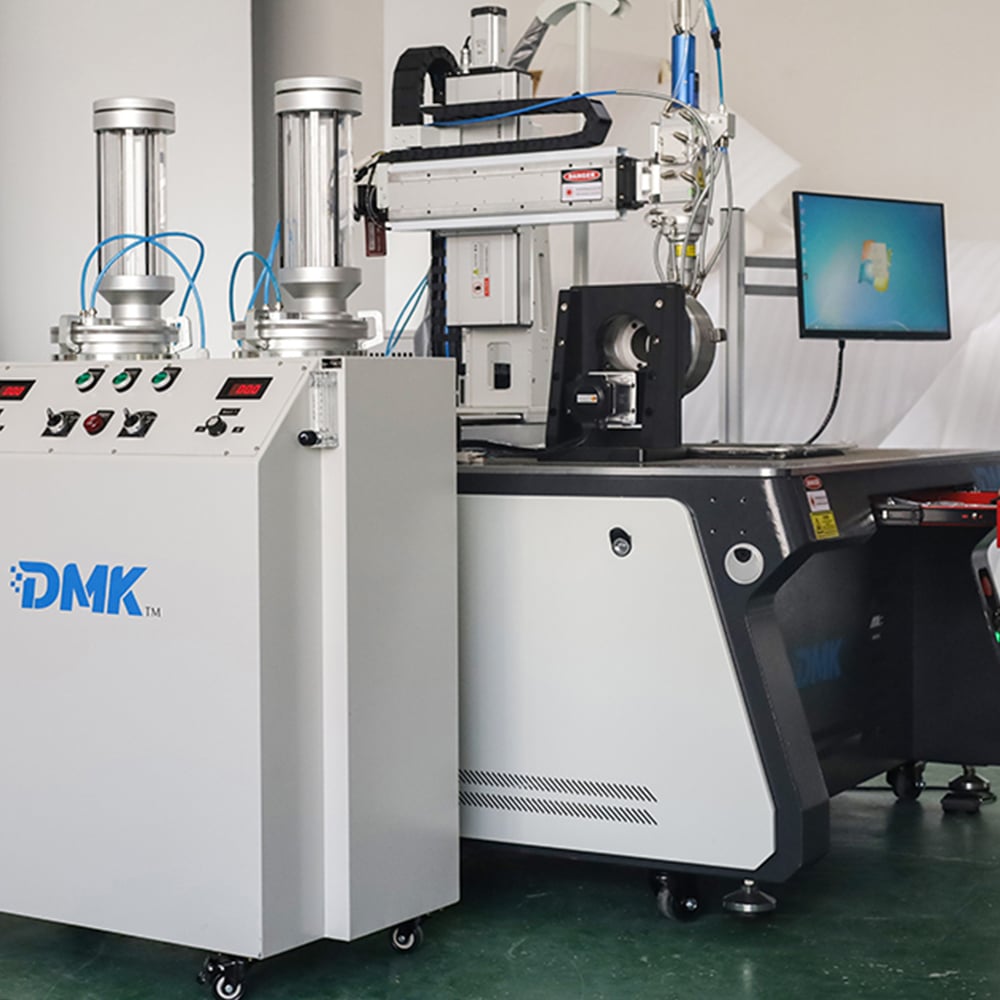

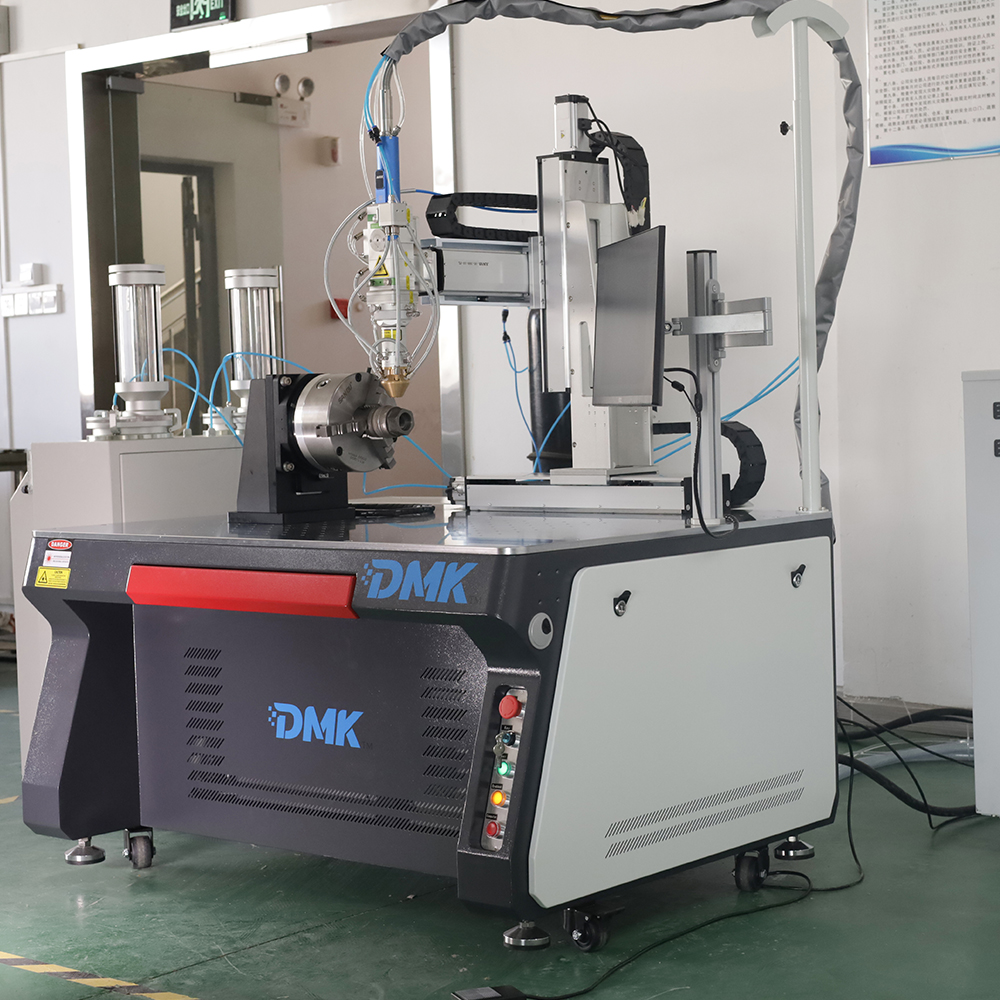

This laser cladding machine is a highly integrated, multi-functional device widely used in surface repair, scientific research, mechanical manufacturing, hardware molds, oil and mining industries, and railway and aviation sectors. Utilizing advanced laser cladding technology, it efficiently enhances material surface properties such as wear resistance and corrosion resistance, while also supporting precise repairs of mechanical components.

Caratteristiche principali e applicazioni

• Material Cladding

  • Nickel-based tungsten carbide cladding
  • Copper alloy cladding
  • Inner bore cladding
  • High-speed cladding for enhanced wear and corrosion resistance


• Mechanical Parts Repair

  • High-precision repair for damaged components, extending their service life

Vantaggi tecnici

1. Easy Operation with No Specialized Skills Required

   • Low operating costs and user-friendly software enable quick programming for complex workpieces.



2. Elaborazione di alta qualità

   • Supports surface and inner bore cladding with minimal deformation, preserving unaffected areas.



3. Efficienza e Flessibilità

   • High-speed cladding capabilities (with compatible accessories) significantly improve productivity.



4. Ampia compatibilità dei materiali

   • Suitable for various materials including steel, stainless steel, and cast iron.



5. Adaptability for Complex Workpieces

   • Precisely clads any complex shapes on workpiece surfaces and inner bores.

Configurazioni del sistema

1. Tavolo da lavoro

   • Dimensioni personalizzabili: Non-standard dimensions tailored to specific applications.
   • Opzioni modello:
     • Standard desktop model
     • Standard enclosed model
     • Tipo di cornice
     • Cast iron platform type
     • Robotic model
   • Multifunzionalità: Interchangeable heads for laser cladding, hardening, and welding (including inner bore and high-speed cladding). Protective enclosures available upon request.



2. Fonte laser

   • Customized continuous fiber laser with high electro-optical efficiency and anti-reflective features.
   • Optimized beam quality ensures uniform energy distribution, higher powder utilization, and refined cladding surfaces.
   • Supports power outputs of 900W or higher for cladding and hardening tasks.



3. Testa di rivestimento laser

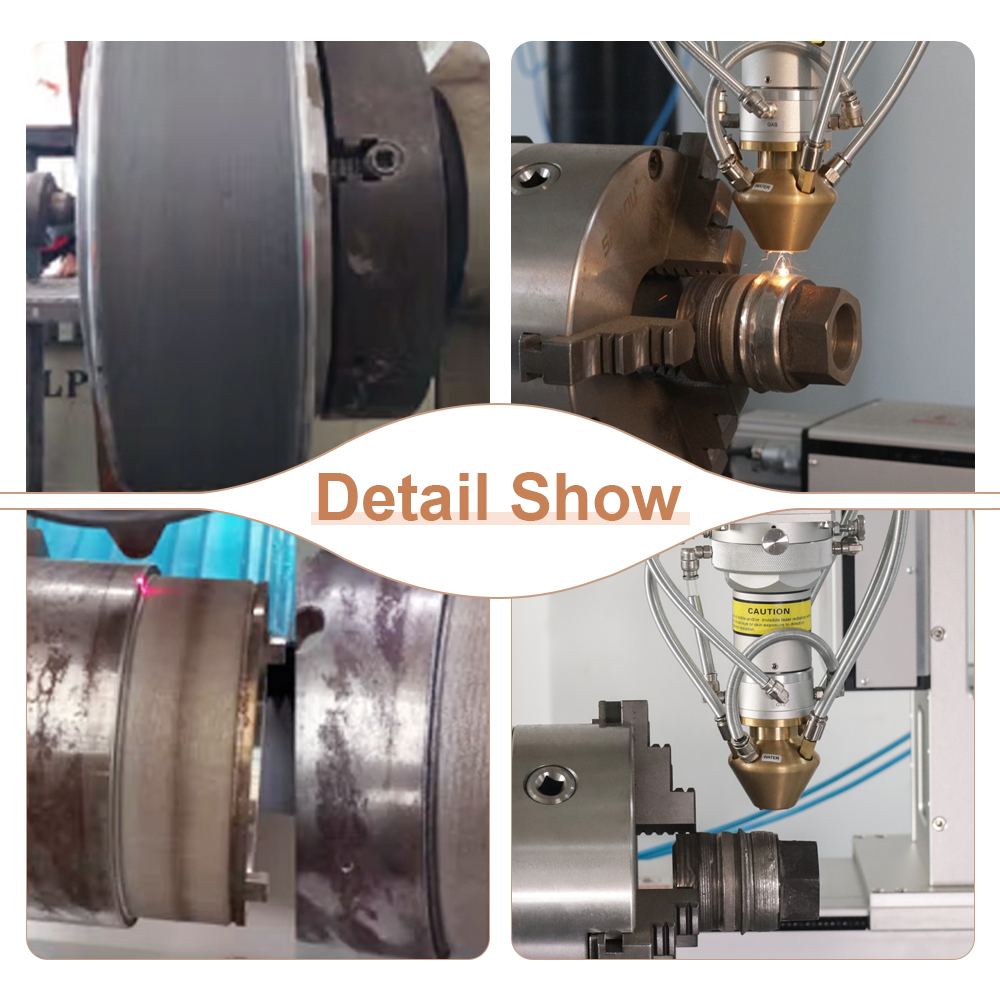

   • Suitable for surface and inner bore laser cladding and hardening.
   • Compact and easy to maintain, delivering fine cladding surfaces with excellent forming quality.

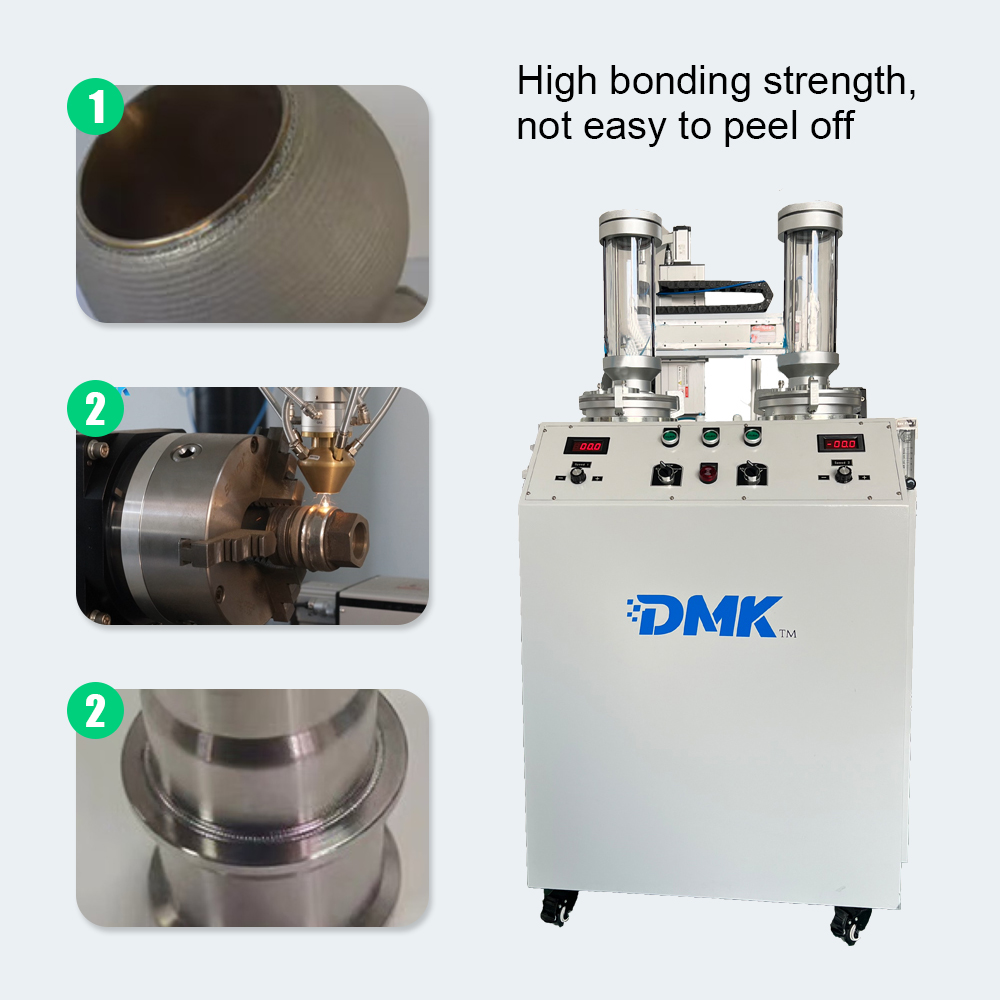

4. Alimentatore di polvere

   • Available in standard, dual-barrel, compact, and mechanical types.
   • Features touch-screen or mechanical button control, remote operation, and optional heating, dehumidifying, and stirring functions.



5. Chiller

   • Internal circulation system for cooling and maintaining stable temperatures.
   • Ensures consistent laser performance in high or low-temperature environments.

Applicazioni

• Riparazione di parti: Enhance the lifespan and performance of worn mechanical components.
• Lavorazione dello stampo: Provide high-quality surface treatments to extend mold durability.
• Industria manifatturiera: Adaptable for batch processing of complex workpieces.
